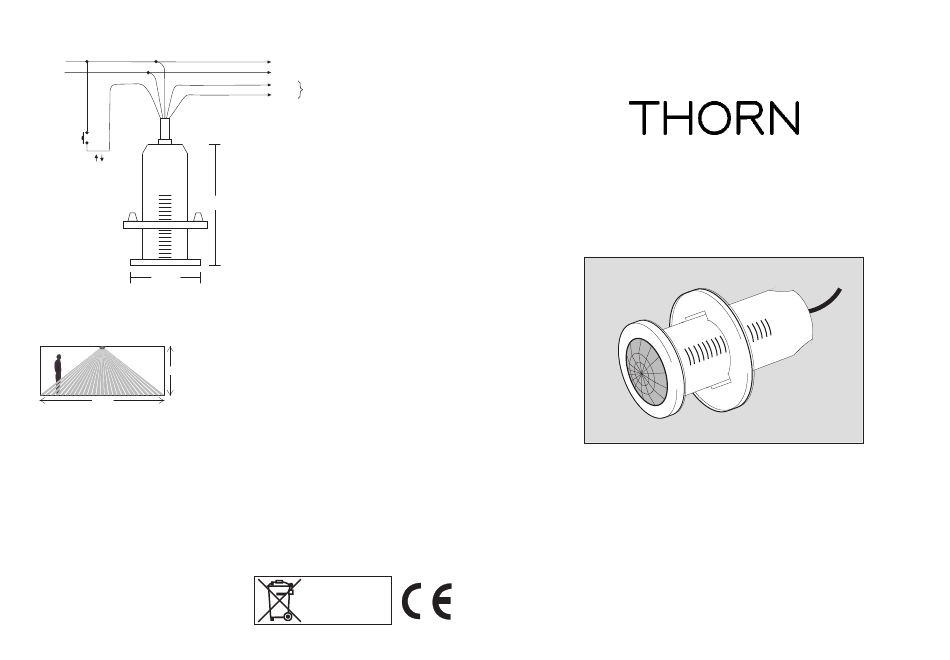

Electrical Connections
Supply
L
230V
N
50Hz
Red
Push-to-Make
Mains-Rated
Retractive Switch
T
Input
(see overleaf)
65mm
Technical Data
RECOMMENDED MAXIMUM MOUNTING HEIGHT: 3.0m
RANGE: Cone-shaped detection pattern, diameter (at floor level) = 2.4 x mounting height
2.5m
6.0m
OPERATING VOLTAGE: 230V 50Hz
PRODUCT RATING & RECOMMENDED CIRCUIT PROTECTION: 10 Amps
CAPACITY: 8 ballasts
OUTPUT: 2-wire digital polarity free-max extended cable length: 12m
PHOTOCELL: Regulating
OFF DELAY: 5-35 minutes
DEPTH REQUIRED BEHIND CEILING: 125mm
WEIGHT: 70g approx excluding cable
COLOUR: White
MATERIAL: Flame retardant PC/ABS
IP RATING: IP 40
Thorn Lighting Limited
www.thornlighting.com
Brown
Blue
Orange
DSI out (96211279)
DALI out (96238877)
White
Polarity-free; do not connect to other detectors.
115mm
At the end of their useful life
the packaging and product
should be disposed of via a
suitable recycling centre.
Do not dispose of with normal
household waste.
Do not burn.
W4047H
Sensa Digital Detector,
ceiling mounted
SENSA MRE SEND DSI (96211279)
SENSA MRE SEND DALI (96238877)
Installation and Commissioning
Instructions
Note: SENSA SENP required for commissioning
