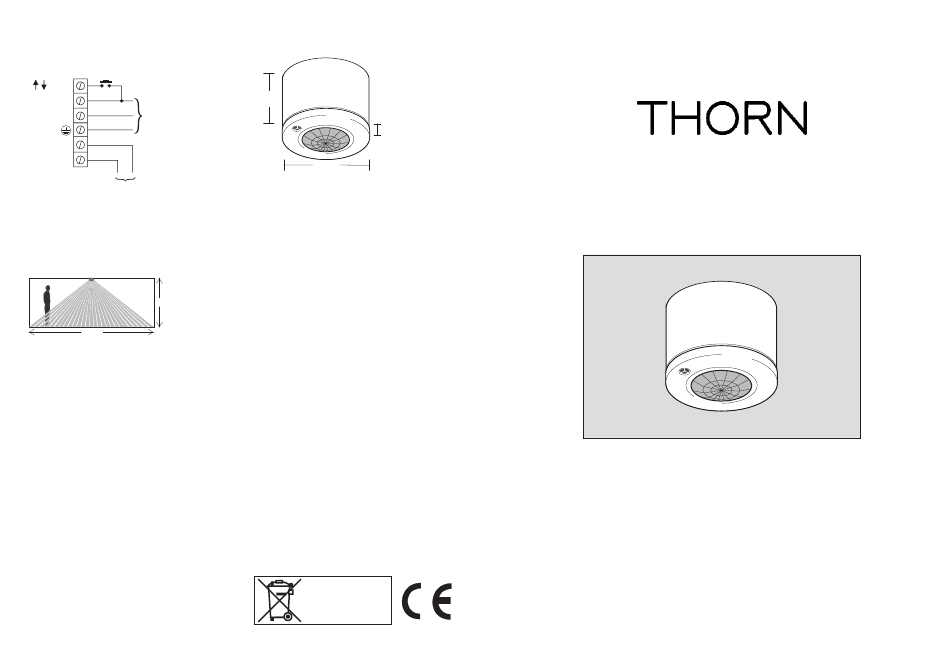

Electrical Connections
Push-to-Make
Mains-Rated
Retractive Switch
T
Input
(see overleaf)
L
230V 50Hz
N
Mains Supply
DSI out (96013491)
DALI out (96238878)
Polarity-free; do not connect to other detectors.
Technical Data
RECOMMENDED MAXIMUM MOUNTING HEIGHT: 3.0m
RANGE: Cone-shaped detection pattern, diameter (at floor level) = 2.4 x mounting height
2.5m
6.0m
OPERATING VOLTAGE: 230V 50Hz
PRODUCT RATING & RECOMMENDED CIRCUIT PROTECTION: 10 Amps
CAPACITY: 8 ballasts
OUTPUT: 2-wire digital polarity free
PHOTOCELL: Regulating
OFF DELAY: 5-35 minutes
WEIGHT: 200g approx
COLOUR: White
MATERIAL: Flame retardant PC/ABS
IP RATING: IP 40
Thorn Lighting Limited
www.thornlighting.com
Dimensions
62mm
deep
Flange: 10mm deep
100mm
At the end of their useful life
the packaging and product
should be disposed of via a
suitable recycling centre.
Do not dispose of with normal
household waste.
Do not burn.
W4335C
SensaDigital Detector,
ceiling mounted, surface
SENSA MSF SEND DSI (96013491)
SENSA MSF SEND DALI (96238878)
Installation and Commissioning
Instructions
Note: SENSA SENP required for commissioning
