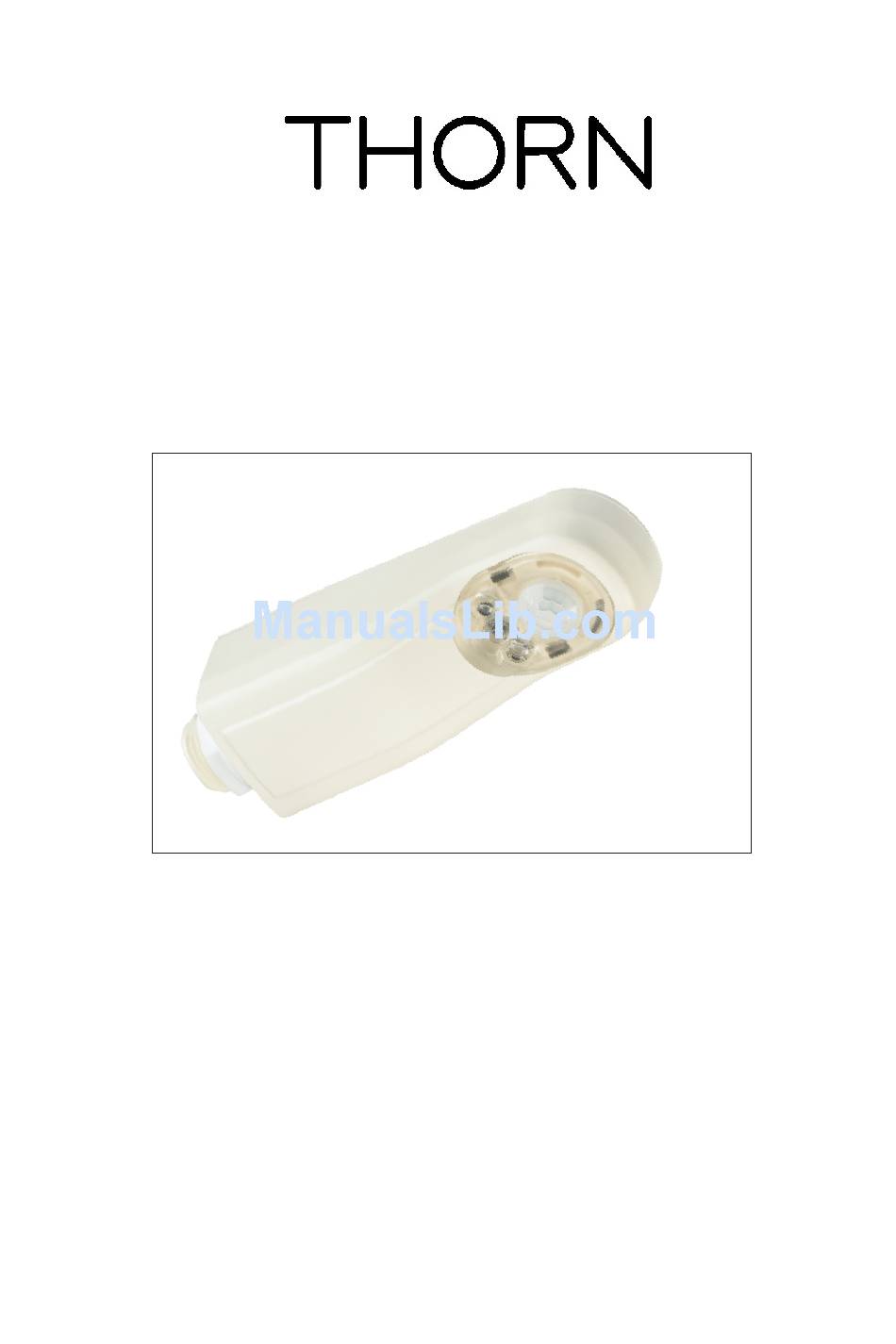

SensaLite PIR Detector for Batten-style Luminaires
SENSALITE SLOCS - Switching
SENSALITE SLOCSP - Switching with photocell
Installation and Commissioning
Note: SENSALINK SENLP or SENSA SENP required for commissioning
SENSALITE SLOCS (96239752)
SENSALITE SLOCSP (96239753)
Instructions
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Thorn SensaLite SLOCS
Summary of Contents for Thorn SensaLite SLOCS
- Page 1 SensaLite PIR Detector for Batten-style Luminaires SENSALITE SLOCS - Switching SENSALITE SLOCSP - Switching with photocell SENSALITE SLOCS (96239752) SENSALITE SLOCSP (96239753) Installation and Commissioning Instructions Note: SENSALINK SENLP or SENSA SENP required for commissioning...
- Page 2 SENSALINK SLOCS - Switching SENSALINK SLOCSP - Switching with photocell Only suitably qualified personnel should install this equipment. This passive infrared presence detector is designed to be fitted to a batten-style luminaire. Installation 1. Remove the M20 knockout from the end cap of the luminaire. 2.
- Page 3 Electrical Connections Brown - Live Blue - Neutral Black - Switched live Fig. 5 Always check product label before connecting. SUPPLY L N E Blue Blue Brown Brown Black Black Multiple Detectors may be connected in parallel, as is shown above, to L N E L N E L N E...
- Page 4 Detection Profile Plan View Detection pattern is a 360 cone shape. Diameter is 2.25 x the mounting height. The squares show the arrangement of the detection pattern. BATTEN LUMINAIRE Fig. 7 2.5m Direction of most commonly used entry into detection zone, i.e.
-
Page 5: Detection Zone
If the distance between the bottom of the sensor and the bottom of the end cap exceeds 59mm, there may be a blind spot in the detection zone. DETECTION ZONE Fig. 9 Walk Testing In order to verify the installation, there is an inbuilt facility (Walk Test Mode) to temporarily reduce the time delay to 10 seconds. - Page 6 Photocell The photocell (SENSALINK SLOCSP only) can be programmed to operate in one of two ways: Active or Passive. (Factory default setting is ‘Passive’.) In all operating modes, the photocell can hold lights off as a vacant area becomes occupied, and if the light level falls too low during the period of occupancy, the lights switch on.
- Page 7 SENSA SENP Parameter Options (SENSALINK SLOCSP only except Walk Test) MOVEMENT DETECTOR PHOTOCELL 24 Hr Cycle Please note that additional AUTOMATIC MODE POWER UP OPERATION = ACTIVE parameters are available PHOTOCELL via the SENSALINK SENLP USED ENABLED Programmer NOT USED OFF DELAY PHOTOCELL Add together to give required time.
- Page 8 Please check with the manufacturer of the luminaires to ensure that they are compatible with automatic controls in this respect. At the end of their useful life the packaging and product should be disposed of via a Thorn Lighting Limited suitable recycling centre. www.thornlighting.com Do not dispose of with normal household waste.
