Planet IEEE 802.3at User Manual

IEEE 802.3at Gigabit
High Power over Ethernet Injector
POE-161
User's Manual
Version 1.1
- 1 -
1. Package Content
Thank you for purchasing PLANET IEEE 802.3at High Power
over Ethernet Injector, POE-161. Terms of "802.3at PoE
Injector" in following section of this User's Manual means
the POE-161.
Upon open the box of the IEEE 802.3at High Power over
Ethernet Injector and carefully unpack it. The box should
contain the following items:
POE-161:
 The IEEE 802.3at Gigabit High Power over Ethernet
Injector x 1
 User's Manual x 1
 DC 56V Power Adapter x 1
 Power Cord x 1
If any of these are missing or damaged, please contact your
dealer immediately, if possible, retain the carton including
the original packing material, and use them against to
repack the product in case there is a need to return it to us
for repair.
- 2 -
2. Product Features
POE-161:
 Interface
 2-Port RJ-45 interfaces
 1-Port Data + Power output
 1-Port Data input
 1 DC 56V input power socket
 PoE
 Gigabit High Power over Ethernet Mid-Span PSE
 IEEE 802.3at POE compliant
 IEEE 802.3af splitter devices compatible
 Support PoE Power up to 30 Watts for PoE port
 Up to 1 IEEE 802.3at devices powered
 Provides DC 56V power over RJ-45 Ethernet cable to
device with Ethernet port
 Auto-detect of POE IEEE 802.3at equipment and
devices from being damaged by incorrect installation
 Remote power feeding up to 100m
 Hardware
 Plastic case
 LED indicators for Power LED and PoE In-use
- 3 -
 Standard Compliance
 IEEE 802.3 10Base-T
 IEEE 802.3u 100Base-TX
 IEEE 802.3ab 1000Base-T
 IEEE 802.3at Power over Ethernet
 FCC Part 15 Class A, CE
PD (Powered Device) is a PoE-enabled terminal by PSE
and thus consumes energy, such as IP Phones, network
cameras and Wireless access points, etc
PSE (Power Sourcing Equipment) is
device (switch, or hub for instance) that will
provide power in a PoE setup. Maximum allowed
continuous output power per such device in
Note
IEEE 802.3af is 15.4W, 30W in IEEE 802.3at.
- 4 -
3. Product Specification
Product
Hardware Specification
"Data" Input Port 1 x RJ-45 STP
"PoE
(Data+Power)" 1 x RJ-45 STP
Interface
Output Port
DC 56V Input
1
power socket
System: Power x 1 (Green)
LED Indicator
PoE Port: PoE in Use x 1 (Green)
10Base-T: 2-Pair UTP Cat. 3, 4, 5, up to
100m (328ft)
100Base-TX: 2-Pair UTP Cat. 3, 4, 5, up
Network Cable to 100m (328ft)
1000Base-T: 2-Pair UTP Cat. 5, 5e, 6 up
to 100m (328ft)
EIA/TIA- 568 100-ohm STP (100m)
Data Rate 10/100/1000Mbps
Dimension (W x D x H) 95 x 70 x 25 mm
Weight 83g
Unit Input Voltage DC 56V, 0.53A
Power Requirement 100-240V AC, 50/60Hz
Power Consumption 30 Watts max.
- 5 -
Number of device can be
1
powered
Operating Temperature 0 ~ 50 Degree C
Storage Temperature -10 ~ 70 Degree C
Humidity 5 ~ 95% (Non-condensing)
Power over Ethernet
IEEE 802.3at High Power over Ethernet /
PoE Standard
Mid-Span PSE
PoE Power Output DC 56V / 30 Watts
PoE Power Supply Type Mid-Span
a
Power Pin Assignment 4/5(+), 7/8(-)
Standards Conformance
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
Standards Compliance IEEE 802.3ab 1000Base-T Gigabit
Ethernet
IEEE 802.3at Power over Ethernet
Regulation Compliance FCC Part 15 Class A, CE
- 6 -
4. Product Outlook

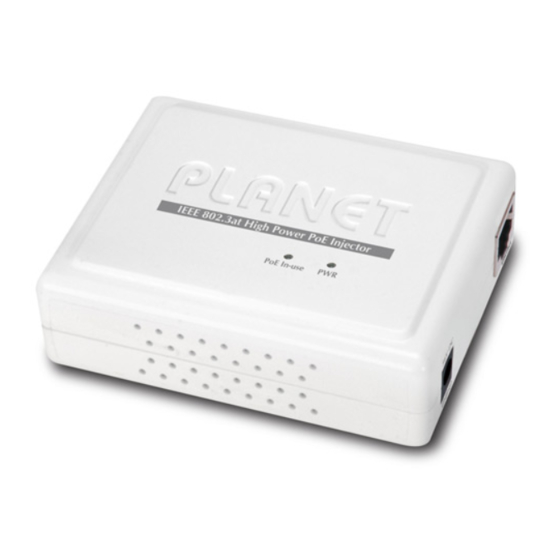

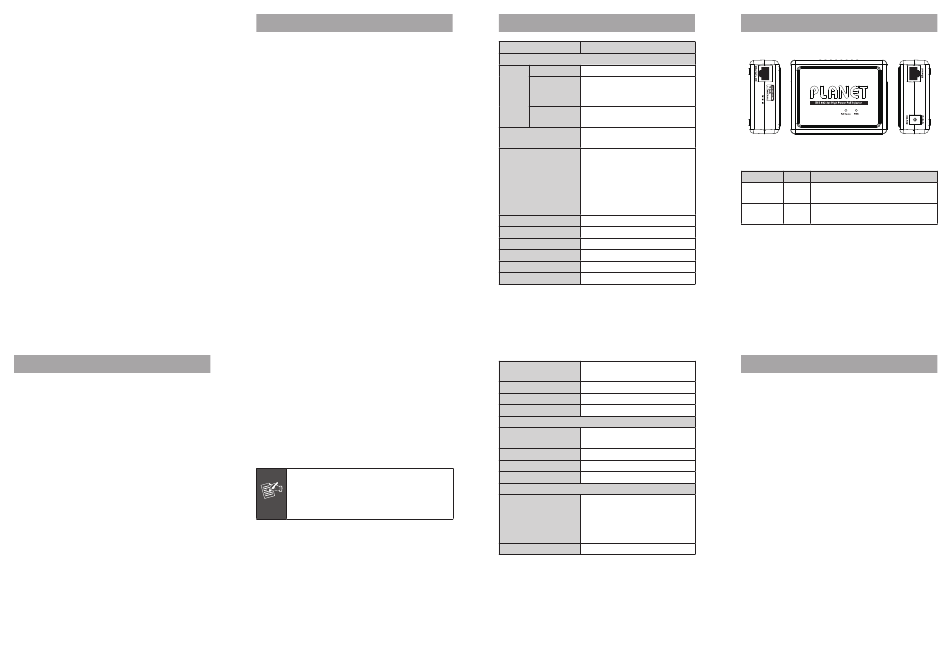

Figure 1: shows a front panel of 802.3at PoE Injector.
POE-161
Figure1: POE-161 Outlook
LED Indicators
LED Color
PWR Green
PoE In-use Green
5. Hardware Installation
This IEEE 802.3at Gigabit High Power over Ethernet Injector
provides three different running speeds – 10Mbps, 100Mbps
and 1000Mbps in the same device and automatically
distinguishes the speed of incoming connection. Please
refer to following sections for detail information about IEEE
802.3at Gigabit High Power over Ethernet Injector.
5-1 POE-161:
The following section describes the hardware features of
POE-161. Before connecting any network device to the
POE-161, read this chapter carefully.
Before Installation
Before your installation, it is recommended to check your
network environment. If there is any IEEE 802.3at devices
need higher power to power on and work normally, the
POE-161 can provide you a way to supply power for this
Ethernet device conveniently and easily. The POE-161
equips with an AC-DC adapter with DC 56V input and
injects this DC power into the pin of the twisted pair cable
(pair 4, 5 and pair 7, 8).
If there is very difficult to find a power socket for AC-DC
Adapter of your non IEEE 802.3at networked device, the
POE-161 and POE-162S can provide you a way to supply
DC power for this Ethernet device conveniently and easily.
Function
Lights to indicate that the POE-161
has power.
Lights to indicate the port is
providing 56V DC in-line power.
