pro user RVC3600 Manual page 6

12. The reverse light sockets on
most vehicles have two wires
connected to them. Usually the
negative wire is black and the
positive wire is a colored wire.
If you are uncertain about the
wiring, you can use a 12 volt
multimeter available at most
auto parts stores to determine
which is the positive wire.
Follow the manufacturer's
instructions for the safe use of
the multimeter.
13. After determining which wire is
the positive and which is the
negative, turn off the ignition key, then remove the battery's negative cable.

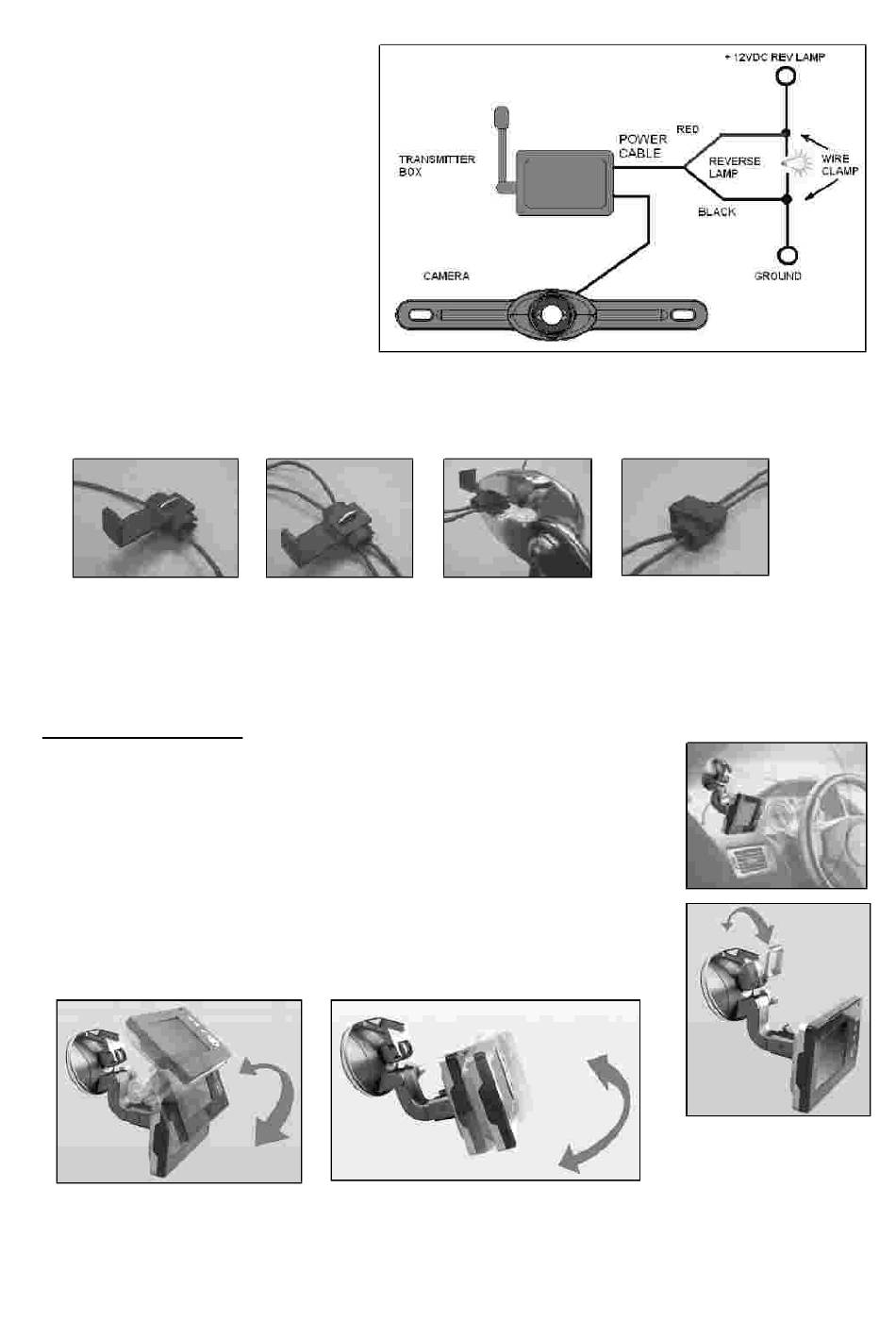

14. Splice the red wire using the supplied in-line wire connectors to the reverse light's
positive (+) wire. Use a set of slip joint pliers to squeeze the TAP and insure good
connection.
15. Next splice the black wire of the transmitter box powe
negative (-) wire or ground.
16. Replace the reverse light bulb, and then re-install the light socket. Secure all the
wires with cable ties or electrical tape.
17. Re-attach the negative battery cable to the battery.
Mo n it o r I n s t a lla t io n
When choosing a location to mount the monitor, make sure the
monitor is in an area that will not obstruct your vision while driving.
1. Before mounting the monitor, clean the mounting surface well.
2. Position the suction mount to the smooth surface which suits
your requirement.
3. Press the suction cap against the smooth surface and press the
lock down to attach and fix the mount to the surface.
4. Snap in the monitor to the suction mount.
5. Adjust the mounting arms to suit your view angle to the monitor
and tighten the screws on the mount to fix the position.
6. Route the power cable to the vehicle's cigarette lighter socket/12V power outlet. The
cable must not interfere with the safe operation of the vehicle.
7. Insert the small 12 Volt DC plug of the power cable into the right side of the monitor.
8. Plug the 12 Volt cigarette lighter plug into the vehicle's cigarette lighter socket.
e to the reverse light's
