ZGS-12000-9v1 Fixed Hoist Test Facility
1) Purpose
a. The purpose of the Fixed Hoist Test Facility (FHTF) is to allow the
operation, maintenance, and training of the operation and maintenance of
rescue hoists in use by the 160
b. The FHTF works in conjunction with the ZGS-10000-5-2 mobile take up
assembly.
2) Scope

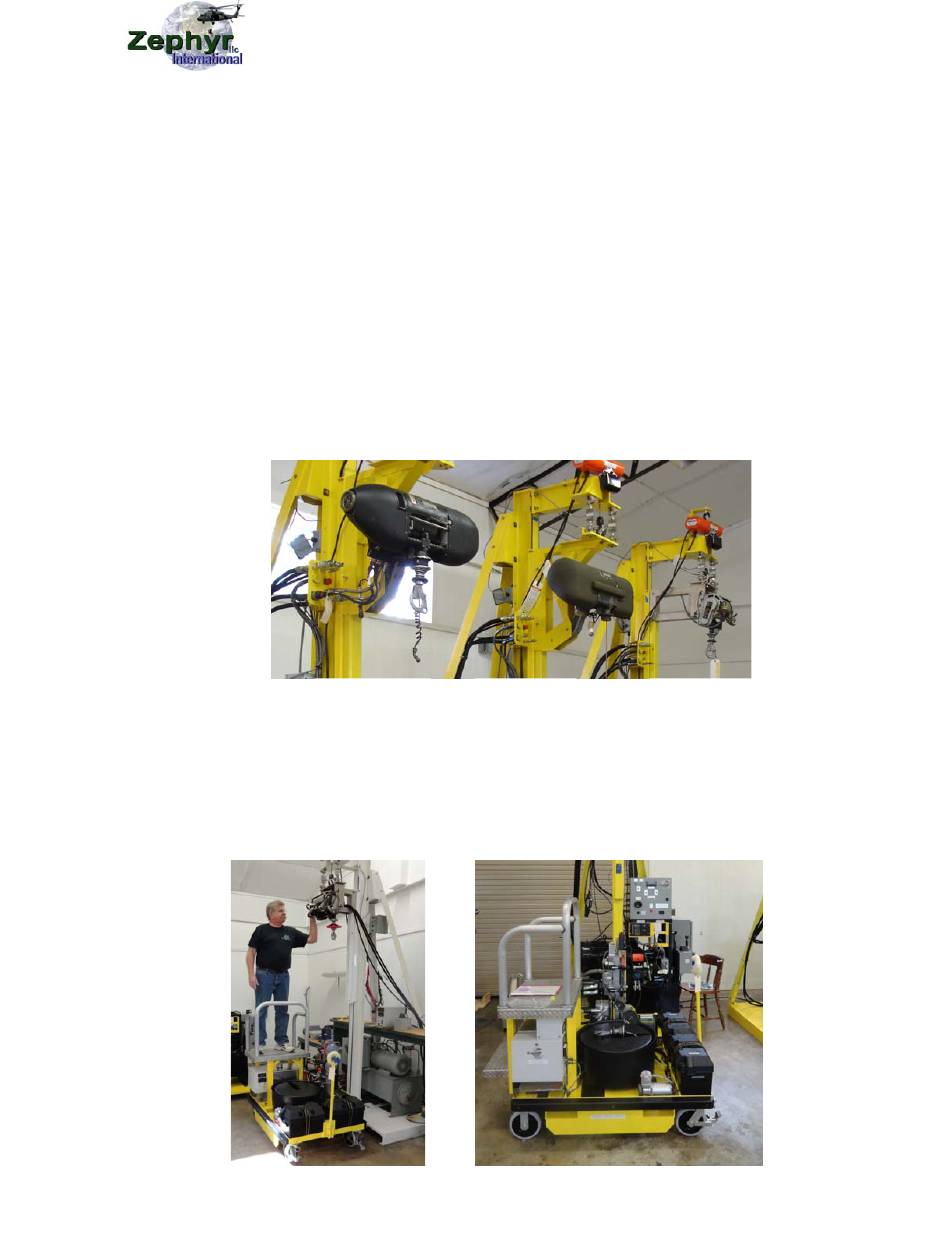

a. The FHTF provides provisions for the mechanical and electrical
attachments of three different rescue hoists.
i. BL-29900-xx
ii. BL-27100-xx
iii. BL-10300-151
b. The FHTF is intended to be used in conjunction with the ZGS-10000-5-2
Mobile Rescue Hoist Ground Equipment (RHGSE). The RHGSE has
been equipped with a work platform to enable working on the hoist while
in the operating position. This allows closer inspection of the hoist
mechanism, setting the limit switches and installing and removing the
rescue hoist cable.
This manual contains proprietary information and is not to be copied or disclosed without written permission from
th
SOAR without the need of an aircraft.
BL-27100 BL-29900
Zephyr International LLC.
Copyright 2002-2013
BL-10300
