CONTENTS
SAFETY CONSIDERATIONS . . . . . . . . . . . . . . . . . . . . . . . . . 1
GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-19
Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
INSTALLATION OPTIONS . . . . . . . . . . . . . . . . . . . . . . . .19-22
I. Fresh Air Intake . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
IV. Louver Mode Selection . . . . . . . . . . . . . . . . . . . . . . 21
V. Main Board Configuration. . . . . . . . . . . . . . . . . . . . 21
START-UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22,23
SERVICE AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . 23
TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . 23,24

SAFETY CONSIDERATIONS

Installing and servicing air-conditioning equipment can be
hazardous due to system pressure and electrical components.
Only trained and qualified service personnel should install or
service air-conditioning equipment.
Untrained personnel can perform basic maintenance, such as
cleaning and replacing filters. All other operations should be
performed by trained service personnel. When working on air
conditioning equipment, observe safety precautions in litera-
ture, tags, and labels attached to unit.
Follow all safety codes. Wear safety glasses and work gloves.
Use quenching cloth for brazing operations. Have fire extin-
guisher available. Read these instructions thoroughly. Con-
sult local building codes and the National Electrical Code
(NEC) for special installation requirements.
WARNING: Before installing or servicing system,
always turn off main power to system. There may be
more than one disconnect switch. Turn off accessory
heater power if applicable. Electrical shock can cause
serious personal injury.
installation, start-up and
service instructions
IN-CEILING CASSETTE
FAN COIL UNITS
Cancels: New
Page
CAUTION: This system uses Puron® refrigerant
(R-410A), which has higher pressures than R-22 and
other refrigerants. No other refrigerant may be used in
this system. All equipment must be designed to handle
R-410A refrigerant. If unsure about equipment, consult
the equipment manufacturer.
CAUTION: Do not operate the unit without a filter
or with the grille removed. Damage to the unit or per-
sonal injury may result.

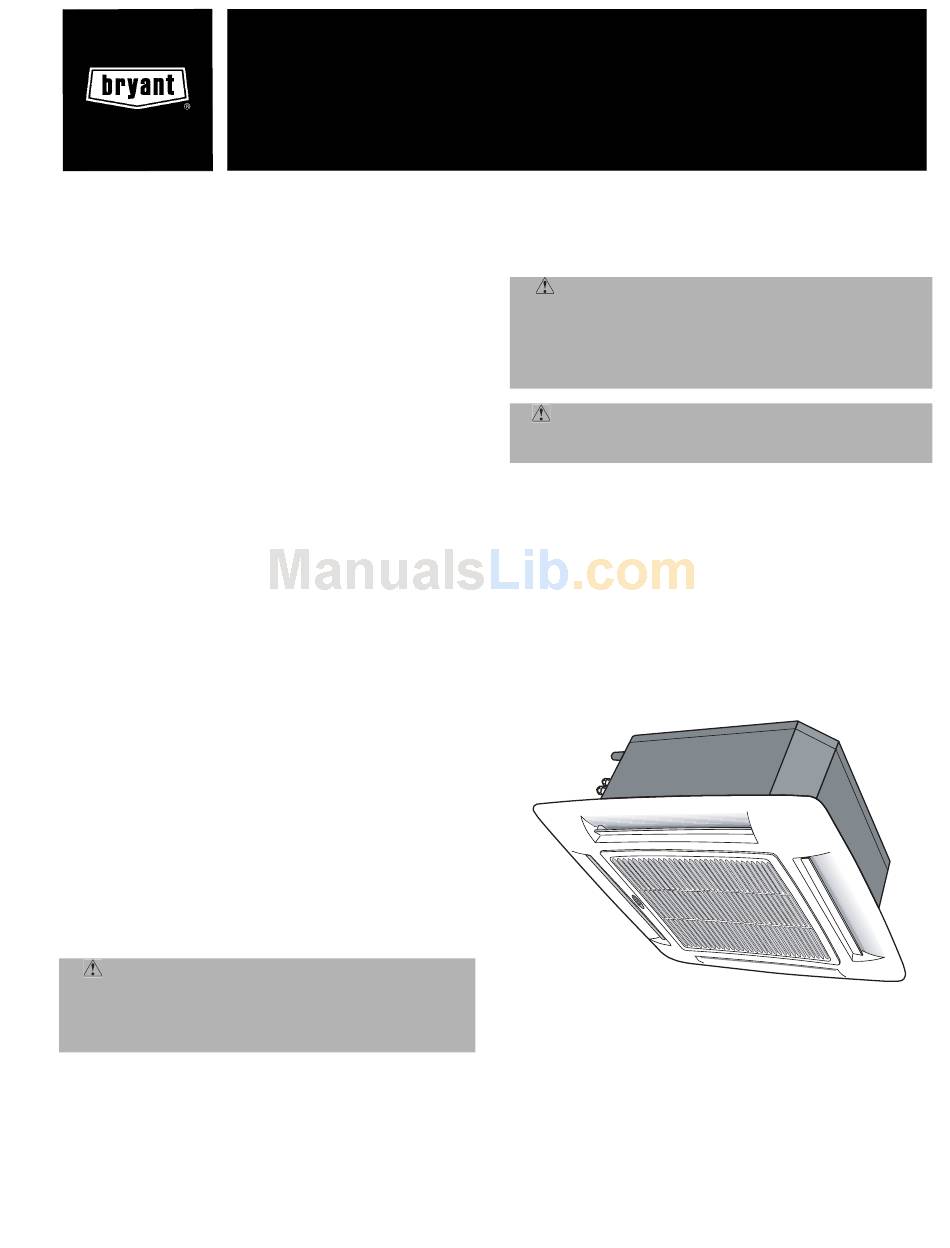

These instructions cover the installation, start-up and service
of in-ceiling cassette fan coil units. See Fig. 1.
The following accessories can be used with 619FNF, FNQ
units. See the price pages for part numbers and additional
information for the following accessories:
• photocatalytic and electrostatic filter with mount
• air supply outlet obstruction kit
• wired room controller
• room controller wiring kit for multiple units
• zone manager kit for multiple units
• zone manager
• infrared remote kit
619FNQ
Sizes 018-03036

GENERAL

Fig. 1 - 619FNF, FNQ Unit
619FNF
II 619F-18-1
4/1/06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 619FNF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bryant 619FNF

Summary of Contents for Bryant 619FNF

  • Page 1: Table Of Contents

    These instructions cover the installation, start-up and service of in-ceiling cassette fan coil units. See Fig. 1. The following accessories can be used with 619FNF, FNQ units. See the price pages for part numbers and additional information for the following accessories: •...

  • Page 2: Installation

    • too close to heat sources • damp or in areas exposed to water • located in areas that could obstruct air circulation, such as near curtains or furniture Table 1 — Field-Supplied Installation Materials 619FNF018,024/FNQ01824: 619FNF, FNQ03036: — — PVC Film — —...
  • Page 3 1? 10-5/8?? (575) 1' -10-5/8"(575) 3/8"(9) 2"(52) Ø 2-3/14" (70) 1 -5/16"(49) 2-13/64"(56) 2'-4-11/32"(720) Supply air Supply air Return air 1'-9-21/32"(550) 619FNF018 1-7/8"(47) 2'-8-1/2"(825) 2'-8-1/2"(825) 1 -31/32" (50) 11-57/64" (302) Supply air Supply air Return air 1'-11-7/16"(595) 619FNF024, 03036 / 619FNQ01824, 03036 Ø3-15/16"...

  • Page 4: Indoor Fan

    Max Lift (Fan Coil Below) (ft) CONDENSATE DRAIN SIZE (in.) LEGEND — Carrier Room Controller SEER — Seasonal Energy Efficiency Ratio *See Table 3 for factory charge and additional field charge requirements. Table 4A — 619FNF Physical Data 17,000 23,600 Direct Drive Centrifugal 1000/470 440/690...

  • Page 5: System Size

    SYSTEM SIZE NOMINAL CAPACITY (Btuh) Heat Pump Cooling Heating Cooling with Electric Heat SEER HSPF OPERATING WEIGHT (lb) REFRIGERANT* Control (Cooling) Control (Heating) INDOOR FAN Rpm/Cfm High Rpm/Cfm Medium Rpm/Cfm Low Motor Watts Blowers Quantity...Size (in.) INDOOR COIL Face Area (sq ft) No.

  • Page 6: Step 2 - Locating And Mounting The Unit

    II. STEP 2 — LOCATING AND MOUNTING THE UNIT A. Locating the Unit Install the unit as centrally as possible in the room. The air- flow direction can be controlled by the remote control (where used) or automatically, according to the unit operating mode (cooling or heating).
  • Page 7 Fig. 4 — Positioning Unit Washers Threaded hangers Wooden frame Fig. 5 — Attaching Hangers to Ceiling Fig. 6 — Threaded Hangers and T Bar Threaded Hangers T-Bar T-Bar Supension Brackets Supension Brackets Fig. 7 — Positioning Unit in Ceiling Indoor Washer Threaded hangers...

  • Page 8: Step 3 - Locating And Mounting The Room

    2” (50 mm) 7-7/8”(200 mm) Fig. 10 — Condensate Drain Pipe Frame support brackets Fig. 11 — Attach Frame Assembly Safety cord Cable clamp Power connection cables from unit Power connection cables from frame Frame support screws Fig. 12 — Fix Frame in Position A AIR B Fig.
  • Page 9 4-1/4" (108mm) 3/4"(20mm) Fig. 14 — Room Controller Dimensions B. Mounting the Room Controller (Fig. 15-17) Unscrew the side fixing screw. Open the room controller rear mounting base to expose the mounting holes. The base can be removed to simplify mounting (snap apart carefully at hinge to separate mounting base from the rest of the room controller).

  • Page 10: Step 4 - Complete Refrigerant Piping

    IV. STEP — COMPLETE REFRIGERANT CONNECTIONS IMPORTANT: During unit installation make the refrigerant connections first and then the electrical connections. If the unit is uninstalled, disconnect the electrical cables first and then the refrigerant connections. Refer to the outdoor unit installation instructions for tube sizing and limitations.

  • Page 11: Step 5 - Make Electrical Connections

    2. Connect the R and Y wires to the 2 pin terminal block for cooling only units (619FNF) and heat pump units (619FNQ) that are matched to 538ENF outdoor units. 3. Connect the R, Y, O, G, DT, A, and B wires to the (PGB-1) 1 terminal for 619FNQ indoor units matched with 538QNF outdoor units.
  • Page 12 Ground Connection Fig. 21 — 619FNF Unit Matched to 538ENF Outdoor Unit — Wiring Connection (Cooling Only System) Room Controller Connections Outdoor Unit Connections Power Connections —12— Voltage High Voltage...
  • Page 13 Ground Connection Fig. 22 — 619FNQ Unit Matched to 538ENF Outdoor Unit — Wiring Connection (Cooling with Electric Heat System) Room Controller Connections Outdoor Unit Connections Power Connections —13— Voltage High Voltage...
  • Page 14 Ground Connection Fig. 23 — 619FNQ Unit Matched to 538QNF Outdoor Unit — Wiring Connection (Heat Pump System) Room Controller Connections Outdoor Unit Connections Power Connections —14— Voltage High Voltage...
  • Page 15 Switch — Louver Motor — Louver Micro Switch Fig. 24 — 619FNF/538ENF Cooling Only System Wiring Diagram NOTES: 1. If any of the original wire furnished must be replaced, it must be replaced with Type 90° C wire or its equivalent.
  • Page 16 LEGEND 1PCB — Main Control Printed Circuit Board 2PCB — Display Board 3PCB — Printed Circuit Board for Electric Heat — Contactor — Capacitor — Crankcase Heater TRAN — Transformer — Crankcase Heater Switch COMP — Compressor — Carrier Room Controller —...
  • Page 17 LEGEND 1PCB — Main Control Printed Circuit Board 2PCB — Display Board 3PCB — Printed Circuit Board for Electric Heat — Contactor — Capacitor — Crankcase Heater — Crankcase Heater Switch COMP — Compressor TRAN — Transformer — Carrier Room Controller —...
  • Page 18 INTERNAL CONTROL PANEL 619FNF018 Capacitor GMC board Electric heater board (only on models with electric heater) Transformer Holes for fixing panel in position Emergency push-button Fig. 27 — Internal Control Panel —18— INTERNAL CONTROL PANEL 619FNF024, 03036 619FNQ01824, 03036 Fan connector LED/RECEIVER connector Float connector Pump connector...

  • Page 19: Installation Options

    Terminal block in the Room Controller Fig. 29 — Wiring the Room Controller to the Indoor Unit The 619FNF, FNQ units can be used to cool an adjacent room or for fresh-air ventilation. Plan the installation care- fully. Measure carefully and follow acceptable building prac- tices and the National Electric Code (NEC).
  • Page 20 Ø C 2-3/4"(70 mm) 3-15/16"(100 mm) Wall Undercut door Wall-fitted grille Door-fitted grille Fig. 30 — Installation Options 619FNF, FNQ03036 Airflow (cfm) —20— Duct connection flange Clip 1/4" (6 mm) neoprene gasket Insulated flexible duct Fresh air intake Conditioned air supply to an adjacent room 4-3/4"(120 mm)

  • Page 21: Room Controller Configuration Setup

    III. ROOM CONTROLLER CONFIGURATION SETUP To configure the room controller, press the Mode button for 5 seconds. After 5 seconds, “10” will appear. This indicates that the user is setting the first software configuration item. To display the value of configuration item 10, press the Mode button again.

  • Page 22: Start-Up

    Room Controller Table 8 — Modular Platform D Unit Configuration Values ITEM VALUE 1: Heat Pump 0: AC only (indoor unit with or without electric heaters) 1-199 in increments of 1 0-199 in increments of 1 0: Start in Off mode 1: Start in last active mode Only the current value being displayed is transmitted.

  • Page 23: Service And Maintenance

    If filter needs replacing, filters are available from the local dealer. CAUTION: If air filter is not replaced in the unit, dust and dirt gather in air conditioner and operation becomes impaired. B. To Clean or Replace Drain Pan 1.
  • Page 24 Remote control Green signal receiver Yellow Copyright 2006 Bryant Heating & Cooling Systems Fig. 35 — Warning Lamps and Emergency Button Printed in U.S.A. Emergency Button CATALOG NO. 02-619F0001-II...
