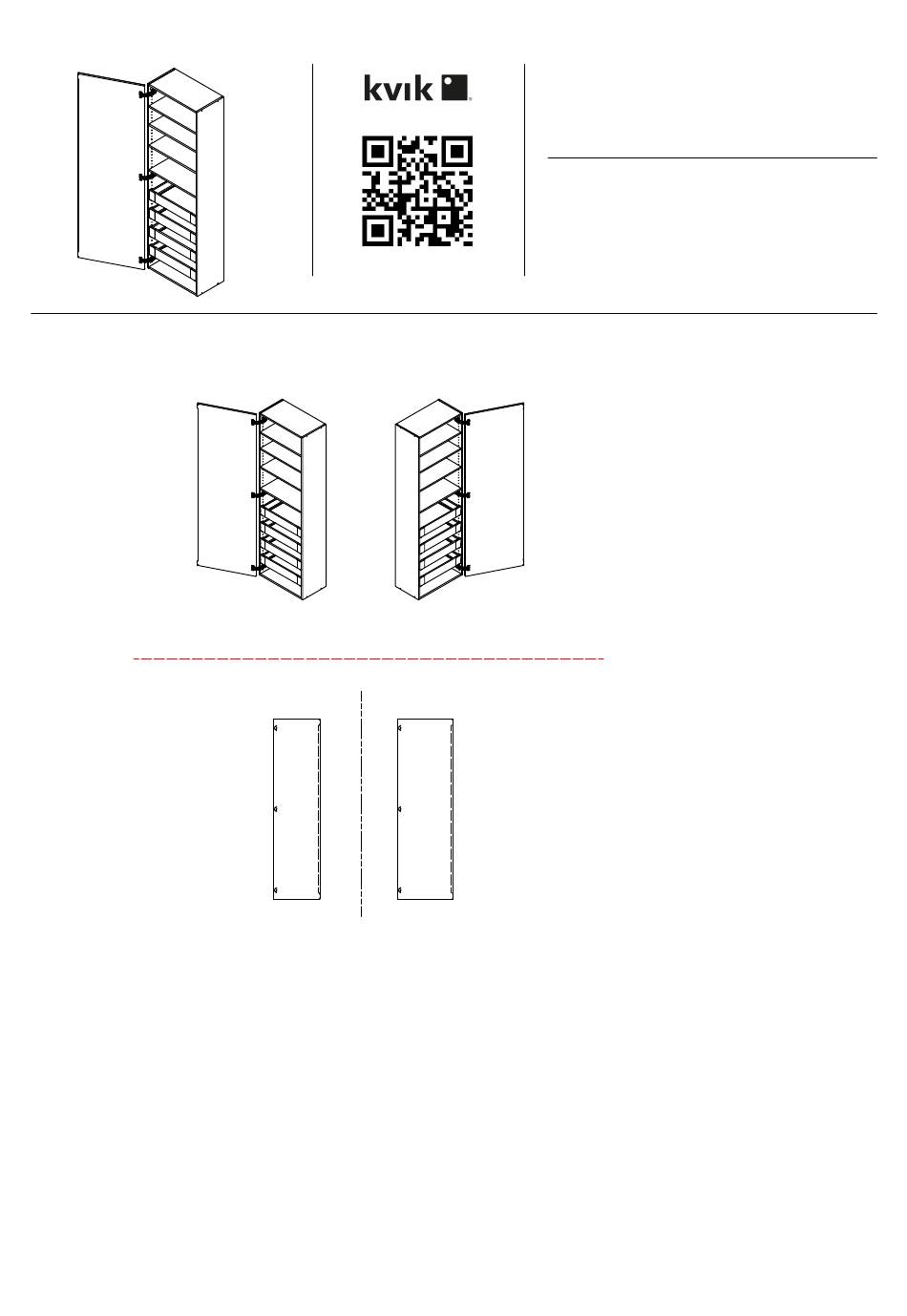

- Page 1 TDSH9226 Check out easy mounting of you bath Left Right Front with integrated handle L19250,Tinta L19260,Tinta 60 cm 50 cm 05-02-2020 2b...
- Page 2 TDSH9226 Check out easy mounting of you bath BH32*2,000 HS19232,000 (Shelf) (Base-top) (Side) 2 pcs 2 pcs 2 pcs (Suspension list) (Shelf) (Shelf) 1 pcs 2 pcs (Back panel) (Suspension list) Glue 1 pcs 1 pcs 15 gr BP00417 K15355...
- Page 3 TDSH9226 FIG. Side Left Screw flh Euro screw Euro screw 3,5x15 mm 6,3x11 mm 6,3x11 mm 4 pcs 12 pcs 8 pcs Shelf support 14x12 mm 5 4 pcs Euro screw 6,3x11 mm Screw flh 3,5x15 mm (Side) Drawer slide left...
- Page 4 TDSH9226 FIG. (Suspension list) (Base-top) Glue 15 gr (Suspension list) NB!!! (Side) Glue (Base-top) 15 gr FIG. (Back panel) 05-02-2020 2b...
- Page 5 TDSH9226 FIG. (Side) Drying Min: 20 min FIG. Angle Screw flh 45x55x30x2 mm 3,5x15 mm 4 pcs 2 pcs 05-02-2020 2b...
- Page 6 TDSH9226 FIG. (Shelf) 2 pcs (Shelf) (Shelf) FIG. Shelf support 5x7 mm Plast 8 pcs 05-02-2020 2b...
- Page 7 TDSH9226 FIG. (Shelf) 2 pcs FIG. Click K15355 BP00417 Hinge 155 degrees Mounting plate 3 pcs 3 pcs Bumper 7x1,5 mm L192*0,Tinta L192*0,Tinta Door Door Bumper 7x1,5 mm 05-02-2020 2b...
- Page 8 TDSH9226 FIG. Left L192*0,Tinta Door FIG. Right L192*0,Tinta Door 05-02-2020 2b...
- Page 9 TDSH9226 Adjustment FIG. 05-02-2020 2b...
- Page 10 TDSH9226 Installation, please read instruction SV12224 SV12224 How to wall mount a cabinet 19-12-2019 1a 05-02-2020 2b 10 /...
