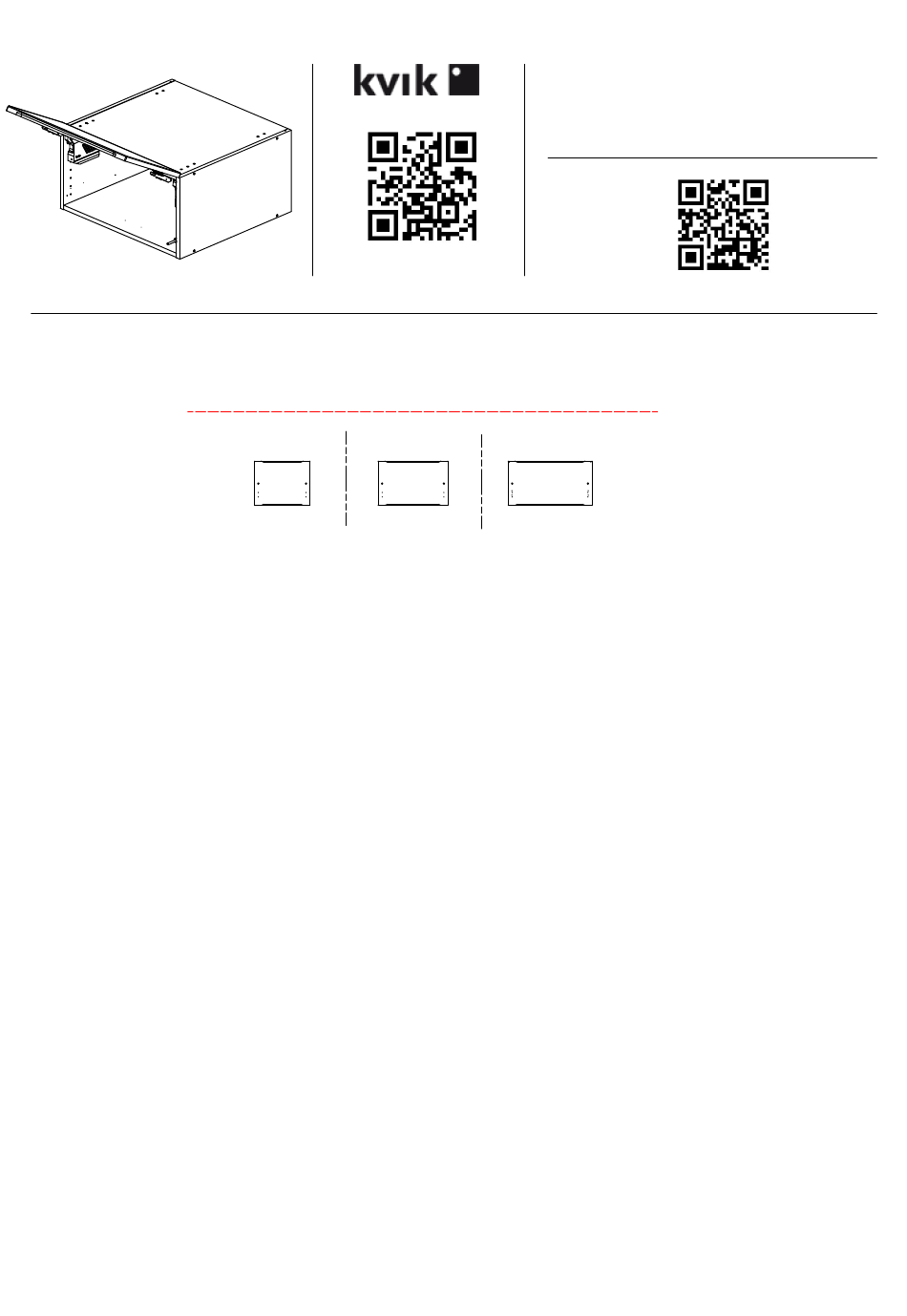

- Page 1 TT531 Check out easy mounting of your kitchen Aventos Front with integrated handle L03240,Tinta L03250,Tinta L03260,Tinta 60 cm 40 cm 50 cm 02-03-2020 1a...
- Page 2 TT531 Check out easy mounting of your kitchen Aventos DT34,***,000 (Suspension list) 1 pcs (Side) (Base-top) (Back panel) (Suspension list) 1 pcs 1 pcs 2 pcs 2 pcs ID21563(040-050) / ID21564(060) Euro screw Aventos ID21564 Aventos Push open Screw flh...
-
Page 3: Side Left
TT531 FIG. Side Left Hole dept 10mm (Side) FIG. Side Left Aventos Flip up R/L (Side) 02-03-2020 1a... -
Page 4: Side Right
TT531 FIG. Side Left Screw flh 4x35 3 pcs (Side) FIG. Side Right Hole dept (Side) 10mm 02-03-2020 1a... - Page 5 TT531 FIG. Side Right Aventos Flip up R/L (Side) FIG. Side Right Screw flh 4x35 3 pcs (Side) 02-03-2020 1a...
- Page 6 TT531 FIG. (Suspension list) (Base-top) NB!!! (Base-top) (Side) FIG. (Back panel) 02-03-2020 1a...
- Page 7 TT531 FIG. Screw flh (Side) 3,5x45 mm 4 pcs FIG. Screw flh 3,5x45 mm 4 pcs 02-03-2020 1a...
- Page 8 TT531 FIG. Screw flh 3,5x15 mm 4 pcs Angle 45x55x30x2 mm 2 pcs FIG. ID21564 Push -openw-magnet 1 pcs Euro screw 6,3x11 mm 2 pcs Adjustment 02-03-2020 1a...
- Page 9 TT531 FIG. Bumper Screw flh 7x1,5 mm 3,5x15 mm 10x5 4 pcs 2 pcs Aventos mounting plate 2 pcs L032*0 drawer front Tinta Bumper 7x1,5 mm L032*0 Drawer front Tinta 02-03-2020 1a...
- Page 10 TT531 Adjustment Click / Aventos Aventos Cap right Cap Left 02-03-2020 1a 10 /...
- Page 11 TT531 Close the door and press Place plate for magnet on the magnet Remove the protection paper Installation, please read instruction SV12224 SV12224 How to wall mount a cabinet 19-12-2019 1a 02-03-2020 1a 11 /...
