INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS

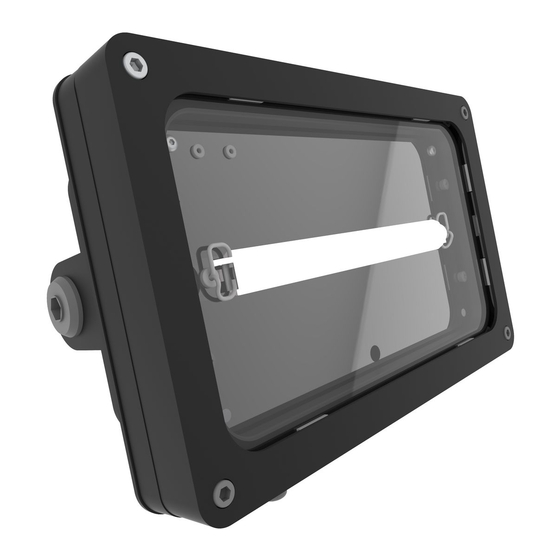

NexLED –
Important:
Please read these instructions carefully before installing or maintaining this equipment.
Good electrical practices should be followed at all times and this data should be used
as a guide only.
Type Of
Ex e ib mb (Increased safety, intrinsic safety, encapsulation)
Protection
Protection
ABNT NBR IEC 60079-0, 60079-7, 60079-11, 60079-18, 60079-1.
Standards
Area of
Zone 1 and Zone 21 areas to EN/IEC 60079-10-1 and 60079-10-2.
application
EN60079-14
Installation
Certificate
IEx 15.0299
Equipment
Ex e ib mb IIC T4 Gb -45
Coding
Ex db e ib mb IIC T4 Gb (when fitted with flameproof
isolation switch).
Ingress
IP66/67
Protection
Laser safety
Class 1 LED product
I-NELE-11.doc

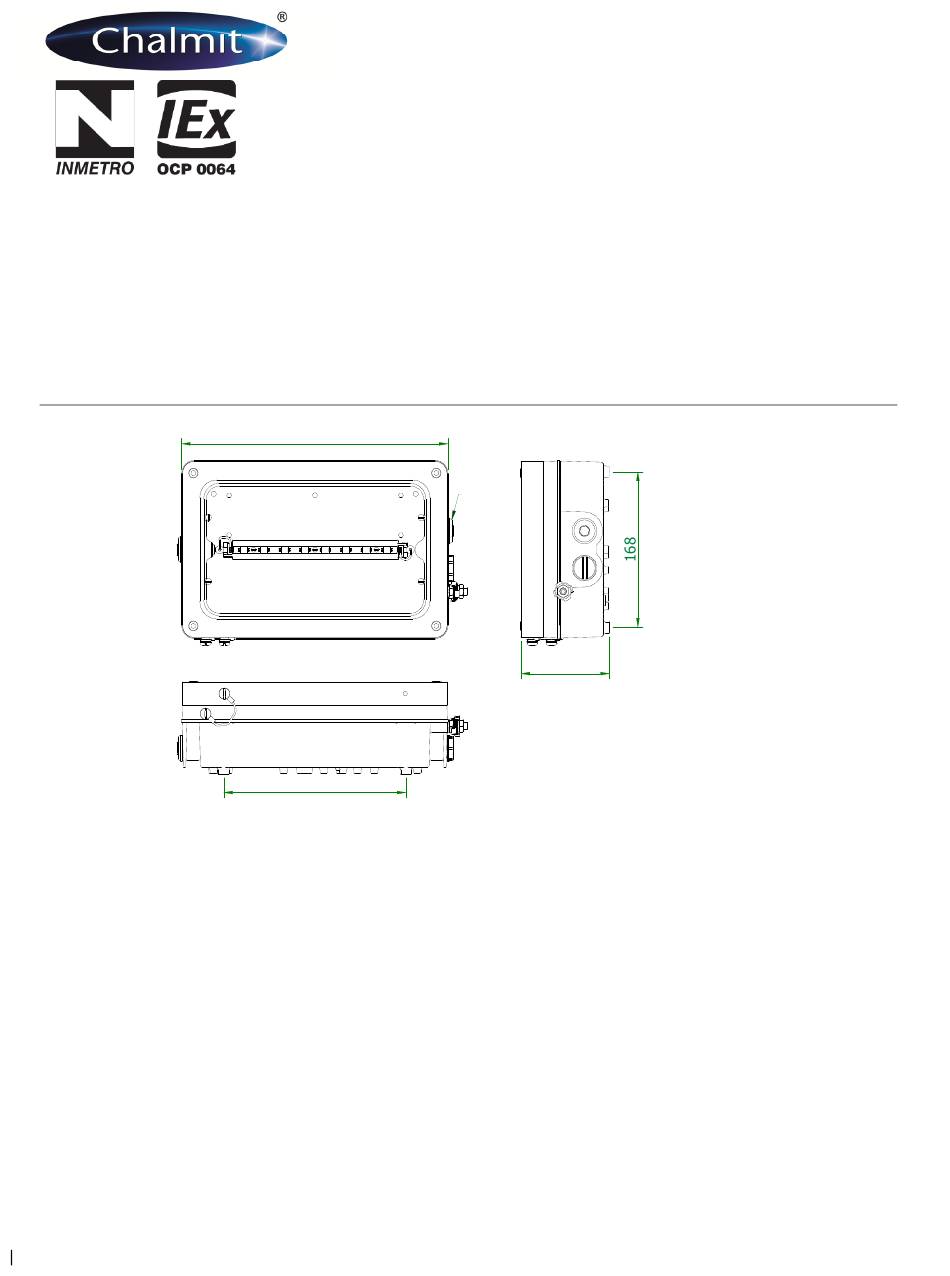

Emergency Bulkhead Luminaire
300
205
o
C ≤ Ta ≤ +55
Issue 05
2 x M20
Entries
99
o
C
18/07/2018
NEXLED EMERGENCY (IEx)
ENGLISH
Standard product -20°C to +55°C
Low Temp version down to -45°C Add
suffix /LT to Catalogue Code
1
Advertisement
Related Manuals for Chalmit NexLED
Summary of Contents for Chalmit NexLED
- Page 1 NEXLED EMERGENCY (IEx) ENGLISH INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS NexLED – Emergency Bulkhead Luminaire Important: Please read these instructions carefully before installing or maintaining this equipment. Good electrical practices should be followed at all times and this data should be used as a guide only.
-
Page 2: Special Conditions For Safe Use
The LEDs work equally well at very low temperatures as they do at high and produce a product with very low overall power consumption. When the Nexled is specified for low temperature it should be fitted with a battery pack heater to enable the battery pack to be kept at an optimum temperature for maximum reliability and duration. - Page 3 NEXLED EMERGENCY (IEx) ENGLISH of 12A for less than 1ms on 230V. These figures are worst case with low resistance connections with short cables and low impedance supplies. 2.0 Storage Luminaires and control gear boxes are to be stored in cool dry conditions preventing ingress of moisture and condensation.
- Page 4 Emergency Operation When there is a disruption to the mains supply the Nexled will switch over to battery backup; as there is no difference in light output this will be signalled by one blink at switchover. Following a full discharge, the LEDs will blink periodically as the batteries regenerate.
- Page 5 The battery pack is a 4.2V 4Ah NiCad 4 cell pack. Periodic testing allowing full discharge will enable the cells to remain in a healthy condition. Should the battery pack need to be replaced spares may be ordered from Chalmit Lighting.
- Page 6 NEXLED EMERGENCY (IEx) ENGLISH To comply with the Waste Electrical and Electronic Equipment directive 2012/19/EU the apparatus cannot be classified as commercial waste and as such must be disposed of or recycled in such a manner as to reduce the environmental impact.
