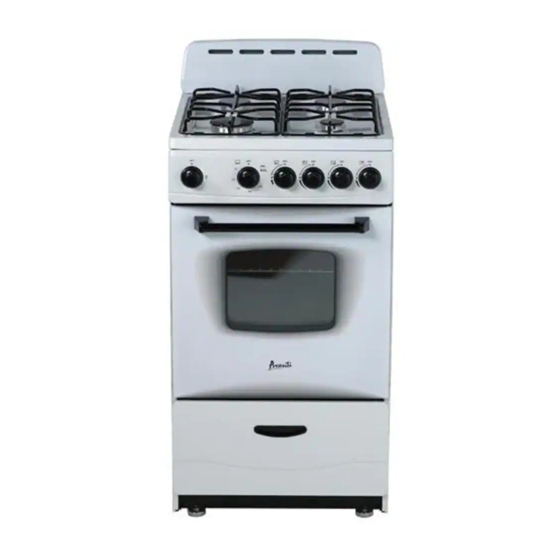

Avanti GR2011CW Installation Instructions Manual
Hide thumbs
Also See for GR2011CW:
- Instruction manual (52 pages) ,
- Instruction manual (50 pages) ,
- Instruction manual (70 pages)
Table of Contents
Advertisement
GAS RANGE
RESIDENTIAL USE ONLY
INSTALLATION INSTRUCTIONS
IMPORTANT
PLEASE READ AND FOLLOW
IMPORTANT - PLEASE READ AND FOLLOW
•
Before beginning, please read these instructions completely and carefully.
•
Do not remove permanently affixed labels, warnings, or plates from the product. This
may void the warranty.
•
Please observe all local and national codes and ordinances.
•
Please ensure that this product is properly grounded.
The installer should leave these instructions with the consumer who should retain
•
for local inspector's use and for future reference.
•
The electrical plug should always be accessible
Installation must conform with local codes or in the absence of codes, the National Fuel Gas
Code ANSI Z223.1 / NFPA 54 - Latest Edition. Electrical installation must be in accordance
with the National Electrical Code, ANSI / NFPA 70 - latest edition and/or local codes.
INSTALLATION IN MANUFACTURED (MOBILE) HOME: The installation must conform
with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280
[formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD
(Part 280)] or, when such standard is not applicable, the Standard for Manufactured Home
Installations, ANSI / NCSBCS A225.1, or with local codes where applicable.
INSTALLATION IN RECREATIONAL PARK TRAILERS: The installation must conform with
state or other codes or, in the absence of such codes, with the Standard for Recreational
Park Trailers, ANSI A119.5.
Installation of any gas-fired equipment should be made by a licensed plumber. A manual
gas shut-off valve must be installed in the gas supply line ahead of the appliance in the gas
stream for safety and ease of service.
If an external electrical source is utilized, the appliance, when installed, must be electrically
grounded in accordance with local codes or, in the absence of local codes, with the national
Electrical Code, ANSI / NFPA 70.
This range is supplied with a protective film on steel and aluminum parts.
This film must be removed before installing / using the appliance.
FOR INSTALLER ONLY
THIS RANGE IS FOR RESIDENTIAL USE ONLY
AVANTI PRODUCTS, LLC
MIAMI, FLORIDA 33172, USA
MADE IN CHINA
Model Numbers:
GR2011CW
GRO20P0W
GR2012CB
GRO24P0W
GR2013CSS
GR2414CW
DGR20P3S
GR2415CB
DGR24P3S
GR2416CSS
4009900
Conforms to ANSI STD
Z21.1-2016
Certified to CSA Std.
1.1-2016
Household Gas
Appliances
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Avanti GR2011CW
Summary of Contents for Avanti GR2011CW
- Page 1 AVANTI PRODUCTS, LLC MIAMI, FLORIDA 33172, USA MADE IN CHINA GAS RANGE Model Numbers: RESIDENTIAL USE ONLY GR2011CW GRO20P0W 4009900 GR2012CB GRO24P0W Conforms to ANSI STD INSTALLATION INSTRUCTIONS GR2013CSS Z21.1-2016 Certified to CSA Std. 1.1-2016 GR2414CW DGR20P3S IMPORTANT Household Gas...
-
Page 2: What To Do If You Smell Gas
To reduce the risk of tipping the appliance, the appliance must be secured by properly installed anti-tip device packed with the appliance. ALL RANGES CAN TIP INJURY TO PERSONS COULD RESULT INSTALL ANTI-TIP DEVICE PACKED WITH RANGE SEE INSTALLATION INSTRUCTIONS WARNING ! If the information in this manual is not followed exactly, a fire or explosion may result causing property damage,... -
Page 3: Rating Labels
RATING LABELS Models: GR2011CW / GR2012CB / GR2013CSS Models: GR2414CW / GR2415CB / GR2416CSS DGR20P3S DGR24P3S Models: GRO20P0W / GRO24P0W The Governor of California is required to publish a list of substances known to the state of California to cause cancer or reproductive harm and requires businesses to warn customers of potential exposures to such substances. -
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS WARNING! THIS APPLIANCE MUST BE INSTALLED BY A QUALIFIED INSTALLER. Installation must conform with all local codes. Improper installation, adjustment, alteration, services, or maintenance can cause injury or property damage. Consult a qualified installer, service agent or the gas supplier. IMPORTANT: The use of suitable protective clothing/gloves is recommended when handling, installing of this appliance. -
Page 5: General Information
INSTALLATION INSTRUCTIONS GENERAL INFORMATION 16. When installing or removing the range for service, a rolling lift jack should be used. Do not push against any of the edges of Installation must conform with local codes or, in the absence the range in an attempt to slide it into or out of the installation. of local codes, with the National Fuel Gas Code, ANSI Pushing or pulling a range (rather than using a lift jack) also increases the possibility of bending the leg spindles or the... -
Page 6: Installation
(603.4 mm) Height: Without the backsplash MIN: 35” 7/16 (900 mm) MAX: 36” 7/32 (920 mm) Backsplash GR2011CW / GR2012CB / GR2013CSS 5 ¼” Height GR2414CW / GR2415CB / GR2416CSS 134 mm GRO20P0W / GRO24P0W 2” DGR20P3S / DGR24P3S 50 mm Gas line opening: Wall - 5”... - Page 7 INSTALLATION PROXIMITY TO SIDE CABINETS GAS AND ELECTRIC CONNECTION...
-
Page 8: How To Install The Backsplash
INSTALLATION HOW TO INSTALL THE BACKSPLASH Align the backsplash to rear part of the cooktop. As shown in the diagram Secure the backsplash to the cooktop from the back using the Philips head screws provided. As shown in the diagram Secure the backsplash from the bottom using the Philips head screws provided. -
Page 9: Anti-Tip Stability Device Installation Instructions
INSTALLATION ANTI-TIP STABILITY DEVICE INSTALLATION INSTRUCTIONS YOU MUST USE T H E The anti-tip bracket has to be attached as shown on figure below (only rear right side), it has to be fixed on the floor and on the rear wall by four (4) suitable ANTI-TIP / STABILITY screws (not supplied). -
Page 10: Gas Connection
GAS CONNECTION All gas connections must be made according to national and local codes. This gas supply (service) line must be the same size or greater than the inlet line of the appliance. Sealant on all pipe joints must be resistant to the action of LP/Propane gas. The range is equipped for the use with NATURAL gas. - Page 11 GAS CONNECTION PRESSURE REGULATOR INSTALLATION Note: THE REGULATOR IS PRE-INSTALLED BY THE FACTORY FOR YOUR CONVENIENCE. THE FOLLOWING INSTRUCTIONS ARE FOR INFORMATION PURPOSES ONLY OR IN THE INSTANCE A PART MUST BE REPLACED. WARNING Check the right positioning of the gas regulator. The arrow on the back of the gas regulator must be oriented toward the connector.
- Page 12 Check the right positioning of the gas regulator. The arrow on the back of the gas regulator must be oriented toward the connector. Applies to models: Applies to models: GR2011CW / GR2012CB / GR2013CSS GR020P0W / GRO24P0W GR2414CW / GR2415CB / GR2416CSS DGR20P3S / DGR24P3S...
-
Page 13: Gas Conversion
GAS CONVERSION CONVERSION FROM NATURAL GAS (NG) TO PROPANE (LPG) Every range is provided with a set of injectors for the various types of gas. Select the injectors to be replaced according to the “INJECTORS TABLE”. The nozzle diameters, expressed in hundredths of a millimeter, are marked on the body of each injector. Any conversion required must be performed by your dealer or a qualified licensed plumber or gas service company. -
Page 14: Replacing The Injectors
GAS CONVERSION REPLACING THE INJECTORS The following process applies to the following models: GR2011CW / GR2012CB GR2414CW / GR2415CB DGR20P3S / DGR24P3S GR2013CSS GR2416CSS INJECTORS TABLE NOMINAL REDUCED L P G POWER POWER PROPANE GAS NATURAL GAS Injector By-pass Injector... - Page 15 GAS CONVERSION REMOVING THE OVEN DOOR To facilitate the conversion process for the oven / broiler burners, the door can be removed. Please follow the instructions carefully: a) Open the door all the way. b) Lift the left and right hooks on the hinges. c) Hold the door firmly on each side.
- Page 16 GAS CONVERSION REPLACING THE OVEN / BROILER BURNER INJECTORS The following process applies to the following models: GR2011CW /GR2012CB GR2414CW / GR2415CB DGR20P3S / DGR24P3S GR2013CSS GR2416CSS To replace the OVEN burner injector: a) Lift and remove the lower panel inside the oven.
- Page 17 The following process applies to the following models: GR2011CW / GR2012CB / GR2013CSS GR2414CW / GR2415CB / GR2416CSS GRO20P0W / GRO24P0W Light the burner. Set the top burner valve to the minimum position.
-
Page 18: Electrical Connection
ELECTRICAL CONNECTION If codes permit and a separate ground wire is used, it is recommended that a WARNING qualified electrician determine that the ground path is adequate. Check with a qualified electrician if you are not sure whether the range is properly grounded. - Page 19 ELECTRICAL CONNECTION GR2414CW/GR2415CB/GR2416CSS GR2011CW/ GR2012CB / GR2013CSS GRO20P0W / GRO24P0W DGR20P3S DGR24P3S...
- Page 20 Gas range installation manual 07272016 PRINTED IN CHINA...
