GAS RANGE
INSTRUCTION MANUAL

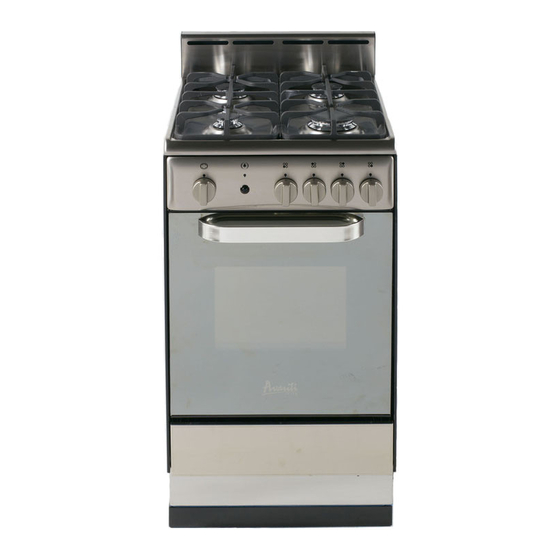

Model Number: DG 202 BS
CAUTION:
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
Avanti has a policy of continuous improvement on its products and reserves the right to
change materials and specifications without notice.
Avanti Products LLC
P.O. Box 520604 - Miami, Florida 33152
www.avantiproducts.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Avanti DG 202 BS
Summary of Contents for Avanti DG 202 BS
- Page 1 CAUTION: BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice. Avanti Products LLC P.O. Box 520604 - Miami, Florida 33152...
- Page 2 WARNING ! To reduce the risk of tipping the appliance, the appliance must be secured by properly installed anti-tip device packed with the appliance. ‡ ALL RANGES CAN TIP ‡ INJURY TO PERSONS COULD RESULT ‡ INSTALL ANTI-TIP DEVICE PACKED WITH RANGE ‡...
-
Page 3: Table Of Contents
CONTENTS TABLE OF CONTENTS Parts & Features ..........Before Using Your Gas Range. -
Page 4: Parts & Features
PARTS & FEATURES WARNING - VERY IMPORTANT NOTICE Never obstruct the oven vent slots on the backguard. Figure 1 1. Cooktop 2. Control panel 3. Door handle 4. Oven light 5. Backguard 6. Leveling legs STEP Do not use 7. Removable storage drawer 8. - Page 5 PARTS & FEATURES COOKING HOB Figure 2 1. Auxiliary burner (AUX) - 3500 BTU/hr 2. Left semi-rapid burner (SR) - 6000 BTU/hr 3. Right semi-rapid burner (SR) - 6000 BTU/hr 4. Rapid burner (R) - 10000 BTU/hr Note: - The electric gas-lighting device is incorporated into the knobs. CAUTION: If the burner is accidentally extinguished, turn the gas off at the control knob and wait at least 1 minute before attempting...
-
Page 6: Before Using Your Gas Range
BEFORE USING YOUR GAS RANGE WARNING!! HAVE THIS RANGE INSTALLED BY A QUALIFIED INSTALLER. Improper installation, adjustment, alteration, services, or maintenance can cause injury or property damage. Consult a qualified installer, service agency, or the gas supplier. Before Using Your Gas Range ‡... -
Page 7: Precautions And Recommendations
PRECAUTIONS & RECOMMENDATIONS IMPORTANT PRECAUTIONS AND RECOMMENDATIONS After having unpacked the appliance, check to ensure that it is not damaged and that the oven door closes correctly. In case of doubt, do not use it and consult your supplier or a professionally qualified technician. -
Page 8: General Information
Electrical installation should comply with national and local codes. REPLACEMENT PARTS Only authorized replacement parts may be used in performing service on the range. Replacement parts are available from factory authorized parts distributors. Contact the nearest AVANTI parts distributor in your area. -
Page 9: How To Use Top Burners
HOW TO USE THE TOP BURNERS GAS BURNERS Figure 4 Gas flow to the burners is adjusted by turning the knobs which control the valves. Turning the knob so that the indicator line points to the symbols printed on the panel achieves the following functions: closed valve maximum rate... -
Page 10: Cooking Vessels
HOW TO USE THE TOP BURNERS CHOICE OF BURNER Figure 6 (fig. 6) The symbols printed on the panel above the gas knobs indicate the correspondence between the knob and the burner. The most suitable burner is to be chosen according to the diameter and volume capacity of the container to be warmed. -
Page 11: How To Use The Gas Oven
HOW TO USE THE GAS OVEN GENERAL FEATURES Attention: the range becomes The gas oven is provided with two burners: very hot during operation. a) Oven burner, mounted on the lower part of the oven (12000 BTU/hr) Attention: the oven door becomes b) Broil burner, mounted on the upper part of the oven (8500 BTU/hr). -
Page 12: Oven Cooking
HOW TO USE THE GAS OVEN Figure 9 IGNITION OF THE OVEN BURNER The thermostat allows the automatic control of the temperature. The gas delivery to the oven burner is controlled by a two way thermostatic tap (oven and broil burners) with flame-failure device. To light the oven burner operate as follows: 1) Open the oven door to its full extent. - Page 13 HOW TO USE THE GAS OVEN Figure 10 IGNITION OF THE BROIL BURNER The broil burner generates the infra-red rays for broiling. To light the broil burner operate as follow: 1) Open the oven door to the full extent. WARNING: Risk of explosion! The oven door must be open during this operation.
- Page 14 HOW TO USE THE GAS OVEN Figure 12 STEP Do not use STEP ro n STEP Oven cooking level STEP Oven cooking level Figure 13 BROILING Very important: the broil burner must always be used with the oven door closed. - Position the shelf on the second level from the top (fig.
-
Page 15: Care And Maintenance
CARE & MAINTENANCE GENERAL RECOMANDATION Figure 16 ‡ Important: Before any operation of cleaning and maintenance disconnect WARNING the appliance from the electrical supply. ‡ It is advisable to clean when the appliance is cold and especially for cleaning the enamelled parts. -
Page 16: Oven Door
CARE & MAINTENANCE BURNERS AND GRIDS Figure 18 Figure 19 ‡ These parts can be removed and cleaned with appropriate products. ‡ After cleaning, the burners and their flame distributors must be well dried and correctly replaced. ‡ It is very important to check that the burner flame distributor and the cap has been correctly positioned - failure to do so can cause serious problems. - Page 17 CARE & MAINTENANCE REMOVING THE OVEN DOOR Figure 23a Type A To facilitate oven cleaning, it is possible to remove the door. Please follow the instructions carefully: – Open the door completely. – Push down the lever “L” and, keeping it in this position, slowly close the door in order to block the hinge (fig.
-
Page 18: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE PROBLEMS WITH YOUR APPLIANCE? You can solve many common appliance problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer. FIND YOUR PROBLEM POSSIBLE CAUSE HOW TO FIX IT... -
Page 19: Service
Avanti appliances. With the purchase of your Avanti appliance, you can have the confidence that if you ever need additional information or assistance, the Avanti Products Customer Service team will be here for you. -
Page 20: Warranty
E. Repairs when your range is used in other than normal, single-family household use. AVANTI PRODUCTS SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential dam- ages, so this exclusion or limitation may not apply to you.
