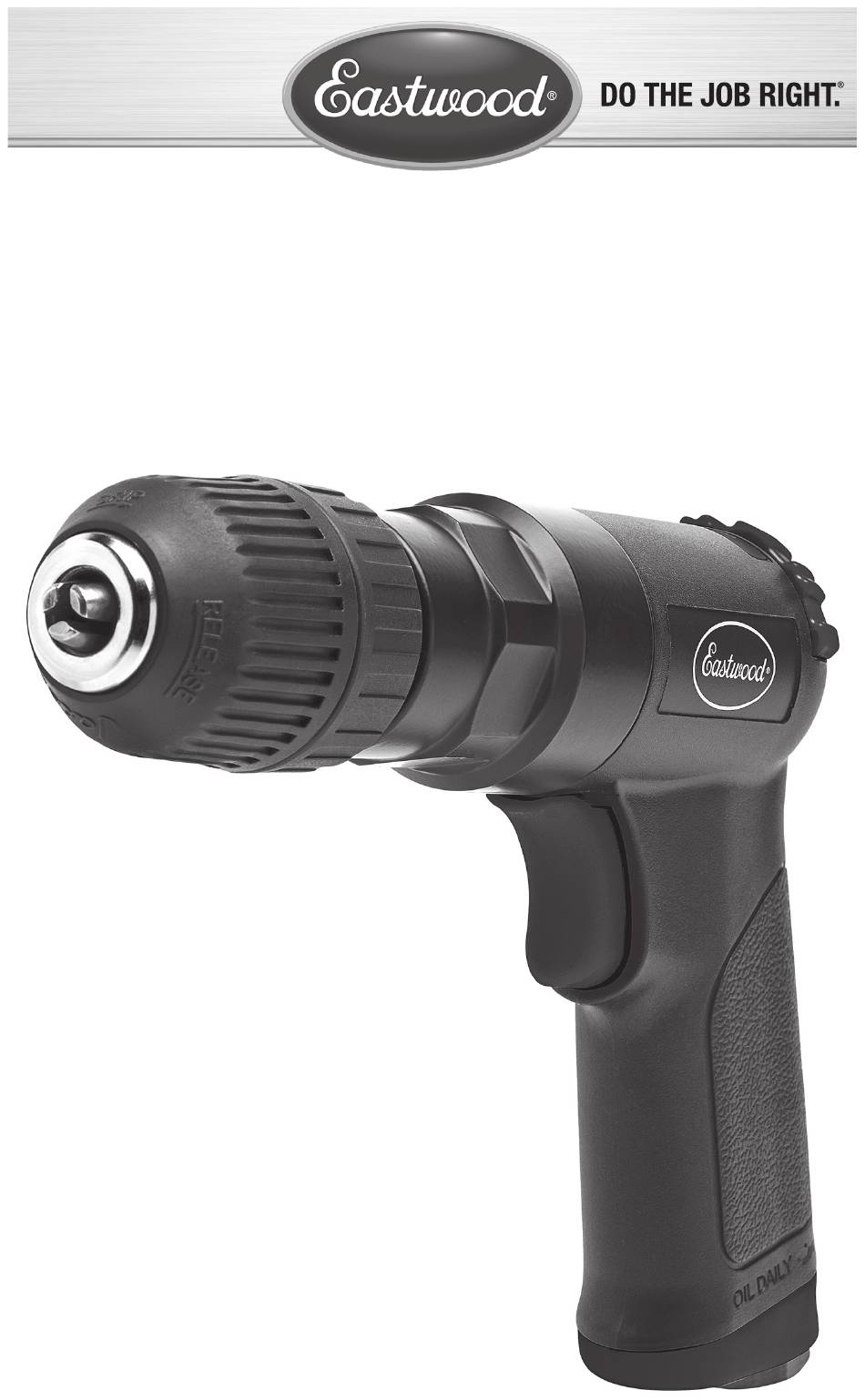

- Page 1 Item #31662 3/8” COMPOSITE DRILL WITH KEYLESS CHUCK INSTRUCTIONS...
-
Page 2: Specifications

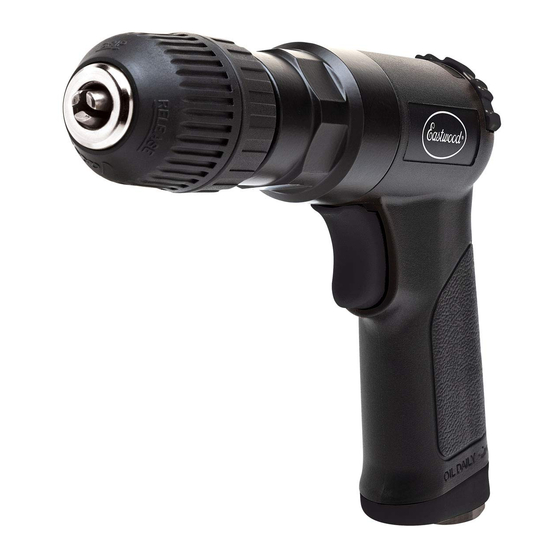

The EASTWOOD 3/8” COMPOSITE DRILL is constructed with a rugged and lightweight composite housing. It features a convenient Keyless Chuck, positive-locking forward/reverse control, a high- performance, 5-vane, ball bearing air motor, and hardened planetary gear set for smooth operation and long life. Speed is easily controlled with an infinitely progressive throttled trigger control. -
Page 3: Safety Information
• This tool emits high sound levels while operating. Use ANSI approved ear protection when operating. BURSTING HAZARD! • Do not exceed 90 psi (6.2 bar) of tool inlet pressure. Permanent tool damage and/or explosion could occur and cause personal injury. To order parts and supplies: 800.343.9353 >> eastwood.com... - Page 4 2,200 RPM or greater use otherwise serious injury can result in the event of failure. VIBRATION INJURY HAZARD! • This Drill will vibrate during use! Repeated exposure to vibration may cause physical injury. Eastwood Technical Assistance: 800.343.9353 >> techelp@eastwood.com...
- Page 5 Trigger to begin rotating action. Speed is regulated by pressure applied to the Trigger. • To reverse drill, disconnect from air supply, Slide the Direction Control left to the “R” direction (FIG 2). To order parts and supplies: 800.343.9353 >> eastwood.com...
-
Page 6: Maintenance
• If tool is to be unused for an extended period, add 10 drops of air tool oil directly to the air inlet, rotate the tool motor by hand several times to distribute the oil throughout the motor and gearbox then store the tool, handle up. Eastwood Technical Assistance: 800.343.9353 >> techelp@eastwood.com... -
Page 7: Troubleshooting
Stop use immediately, check for damaged Chuck. Tool Vibrates damaged Excessively Chuck During Use Out of balance condition from Stop use immediately, replace damaged drill bit damaged drill or accessory. bit or acces- sory To order parts and supplies: 800.343.9353 >> eastwood.com... -
Page 8: Additional Items
Visit eastwood.com and search 31662 for additional accessories. If you have any questions about the use of this product, please contact The Eastwood Technical Assistance Service Department: 800.343.9353 >> email: techelp@eastwood.com PDF version of this manual is available at eastwood.com The Eastwood Company 263 Shoemaker Road, Pottstown, PA 19464, USA 800.343.9353 eastwood.com...
