MK Martin Enterprise Inc.
3950 Steffl er Rd Elmira, ON, Canada N3B 2Z3
Tel:
519-664-2752
Toll Free:
1-855-664-2752
Fax:
519-664-3695
E-mail:
sales@mkmartin.ca
www.mkmartin.ca
AXIS 4
AXIS 5 - 6
&
Operator's / Parts Manual
REV: 18-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AXIS 4 and is the answer not in the manual?

Questions and answers

Summary of Contents for MK Martin AXIS 4

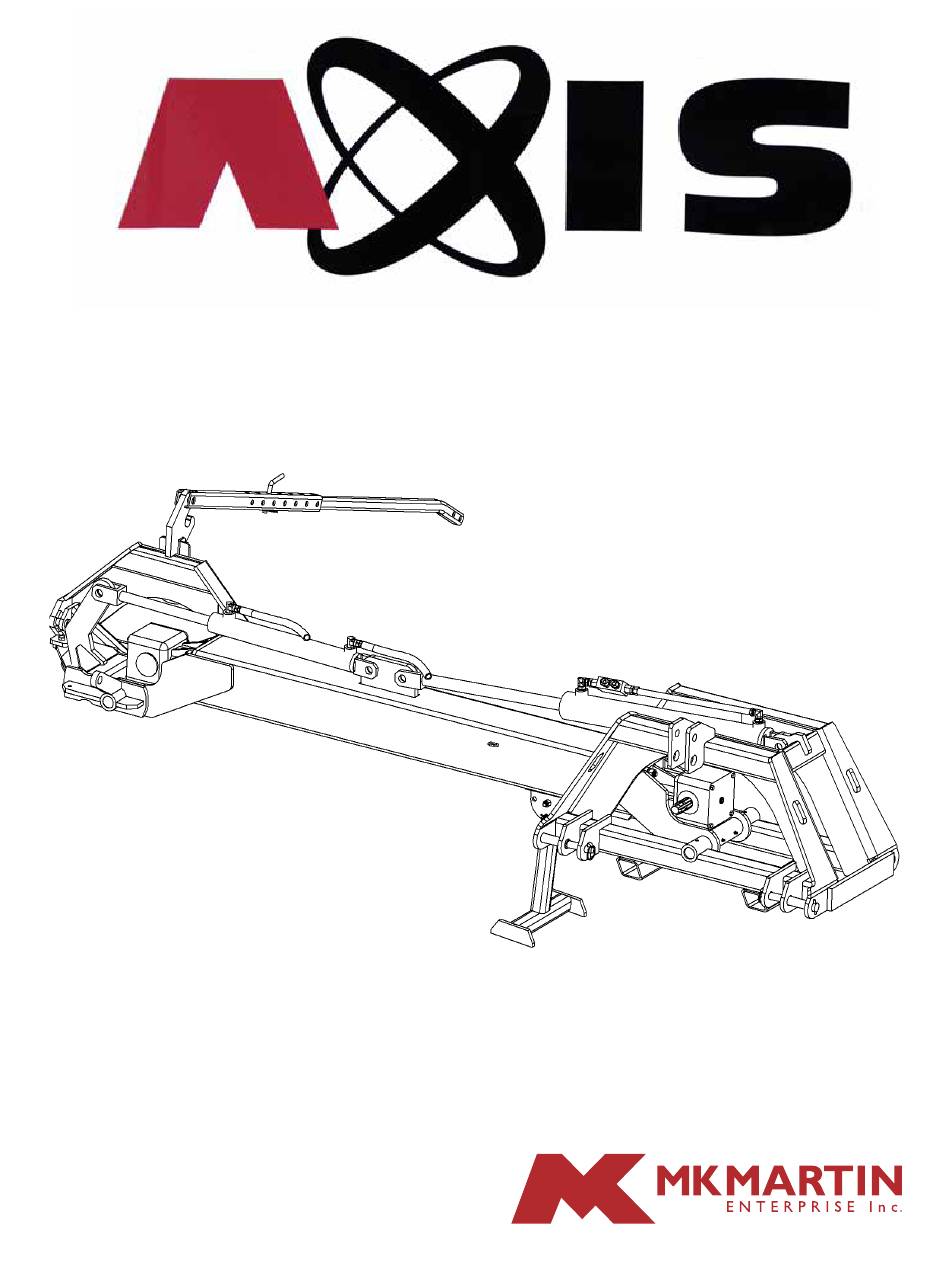

  • Page 1 AXIS 4 AXIS 5 - 6 & Operator’s / Parts Manual MK Martin Enterprise Inc. 3950 Steffl er Rd Elmira, ON, Canada N3B 2Z3 Tel: 519-664-2752 Toll Free: 1-855-664-2752 Fax: 519-664-3695 E-mail: sales@mkmartin.ca www.mkmartin.ca REV: 18-1...
  • Page 3: Table Of Contents

    -------------------------------------------------------------------------- • Operation Procedures ------------------------------------------------------------------------ • Operation Transport --------------------------------------------------------------------------- 10-11 • Attaching other brands and models of cutters ----------------------------------------- 12-13 • AXIS 4 Parts ------------------------------------------------------------------------------------- 14-15 • AXIS 5-6 Parts ---------------------------------------------------------------------------------- 16-17 • PTO Parts --------------------------------------------------------------------------------------- • Gearbox Parts ---------------------------------------------------------------------------------- •...
  • Page 4: Warranty

    Warranty coverage is null and void unless the Warranty Registration form has been completed in full and is on fi le at MK Martin Enterprise Inc. Warranty begins at the time of customer delivery and is activated upon Warranty Registration receipt at MK Martin Enterprise Inc.
  • Page 5 M K Martin Enterprise Inc 3950 Steffl er Rd Elmira ON CA N3B 2Z3 --------------------------------------------------------------------------------------------------------------------- Purchaser’s warranty protection is valid only when this completed form or a copy of this form is on fi le at M K Martin Enterprise Inc. By fi lling out this form the purchaser has acknowledged delivery of equipment and owner’s / operator’s manual and has accepted the condition of the equipment.
  • Page 6: Registration

    Warranty Registration Please Cut and Return to M K Martin Enterprise Inc Fold And Tape here Do not tape all edges or use staples Fold Here ------------------------------------------------------------------------------------------------------------------------- Postage Stamp M K Martin Enterprise Inc 3950 Steffl er Rd Elmira ON CA N3B 2Z3...
  • Page 7: Safety

    Safety Take Note! This safety symbol is found throughout this manual to call your attention to instruc- tions involving yourself and others working around the machine. • Failure to follow these instructions can result in injury or death This symbol means -- Attention! -- Become Alert! -- Your Safety is involved!
  • Page 8 Safety it’s in Your Interest! • It is the responsibility of the operator to read and understand the Safety instructions before operating the equipment. • Clear the area of people and animals before starting the unit. • Do not allow riders •...
  • Page 9: Decals

    Grease #8 - DANGER of being crushed. Stay a safe distance from the machine. #4 - MK Martin Made in Canada #5 - Before any operation of main- tenance a/o adjustment, stop, brake the tractor on level ground, lower the machine to the ground and read the instruction manual.
  • Page 10: Operation-Attaching

    For AXIS 4 a tractor with a CAT#1 three point hitch or CAT#2 with bushings must be used. For AXIS 5-6 a tractor with a CAT#2 or CAT#3 three point hitch must be used. Using a CAT#1 tractor can result in unsafe conditions.
  • Page 11: Operation Procedures

    Operating Procedures • The Axis Tool Arm is equipped with a PO check valve in the main cylinder lines to prevent the arm from drifting when in operation. • Rotating action of the cutter hitch allows the cutter to follow the contour of the ground. Posi- tion the cutter control valve to float position.
  • Page 12: Operation Transport

    Operation Transport 1. Rotate the Axis Too Arm “A” Frame Cylinder to the collapsed position. [Fig #3] 2. Install Breakaway Lock pin to secure the deck in transport. [Fig # 1] 3. Raise Main Arm until Deck is in a vertical position. [Fig # 3] 4.
  • Page 13 PTO Storage for Transport Transport Position PTO Cradle Fig # 7 Counterweight arm Extended Fig # 8 Fig # 9 If counterweight needs to be added for extra stability, the arm can be extended and tractor weights can be added. Fig # 9...
  • Page 14: Attaching Other Brands And Models Of Cutters

    Attaching Stabilizer Arm to Cutter Various attachment brackets are supplied with the Axis Tool bar to attach the Stabilizer Bar to the cutter. Cutter with a single Wheel Beam Shown with Wheel Beam adjustment bolt sharing stabilizer-bar bracket Cutter with “A” Frame Wheel Bracket Cutter with 90°...
  • Page 15 Stabilizer Arms for Cutters Stabilizer Arm Brackets supplied with Tool bar Stabilizer Bar as shown for illustration only Customer may need to modify or adapt bracket to fit...
  • Page 16: Axis 4 Parts

    Axis 4 Tool Arm Parts Item # Part # Description 795-560240 3/8 PTO Pin 795-400250 Breakaway Assembly Bolt 1/4-20 x 2 1/2 Gr#2 795-400260 Attachment “A” Frame 795-560310 Upper Hitch Pin 795-560130 1/2” Bent Pin 795-400280 Stabilizer Bar Assembly 795-560270 “A”...
  • Page 17 Axis 4 Tool Arm Parts Item # Part # Description 795-560220 2 x 16 Welded Cylinder 795-560211 1/4” Hydraulic Hose x 84 // M-NPT3/8-18 ea end Nylon Locknut 1/4” Setscrew 3/8-16 x 1/2 30885 Main Beam Nylon Locknut 1/2” 795-400190...
  • Page 18: Axis 5-6 Parts

    Axis 5-6 Tool Arm Parts Item # Part # Description 32711 Main Arm 24067 Chain Coupler Sprocket 1 1/2 Shaft 30889 3/8 Shaft Key 519-68211528 Coupling Chain 24068 Chain Coupler Sprocket 1 1/4 Shaft 30890 1/2 Shaft Key 5/8 Nut, Lockwasher 795-560170 Gearbox 795-560100...
  • Page 19 Axis 5-6 Tool Arm Parts Item # Part # Description HF0611-06-06 Straight Swivel 795-560200 PO Check Valve 795-560210 48” Hydraulic Hose X2-1116-06-06 Straight Adapter 5406-0806 Reducer Bushing S71-4 Pioneer M Coupler 795-560211 84” Hydraulic Hose 795-560212 103” Hydraulic Hose HF0691-06-06 90°...
  • Page 20: Pto Parts

    Axis Tool Arm PTO Parts T50 PTO Item # Description Part # Qty. Complete Collar Yoke 141.025.363.1 Cross Journal Assy 180.015.130 Complete Shear Yoke 143.250.016.1 Guard Retaining Collar for Outer Tube 8180.015.288 Special Plastic Bolt 8180.014.240 Guard Retaining Collar of Inner Tube 8180.015.289 Safety Chain 180.016.025...
  • Page 21: Gearbox Parts

    AXIS Gearbox Item Part # Description Item Part # Description 0.131.5000.00 Crown Gear 8.5.2.01358 Snap Ring 0.205.0300.00 Casting 8.6.6.00201 3/8 Plug 0.135.2004.00 Input Shaft 8.7.1.00748 Dust Lip 0.135.6201.00 Pinion 8.7.3.00055 Oil Seal 0.135.71.5.00 Spacer 0.205.1300.00 Cover 8.7.0.00693 Oil Cap 0.244.7500.00 Shim Kit 1.135.7100.00 Protective Washer...
  • Page 22: Pto Drive Line Dimension

    PTO Drive-line Dimension The PTO Drive-line as supplied with the machine will need to be checked for the proper length before being put into service. To accommodate the various hitch and tractor confi gurations the supplied shaft may be too long, or in some cases too short.
  • Page 23: Maintenance

    Maintenance Ensure all shields are in place Support equipment with timber blocks or stands, before doing any maintenance on deck of cutter or any other part of machine Check Gearbox oil level every 50 hrs 1 US quart (.85 liter) SAE 85W90 Gear oil Service Intervals The period recommended is based on normal operating condition.
  • Page 24: Bolt Torque Chart

    Bolt Torque As used on this machine • Bolt torque table shown below gives torque values for various bolts used. • This chart is for non-lubricated threads. • Replace with same strength bolt. Torque Specifi cations. Torque values are identifi ed by their head markings. Diameter SAE 2 SAE 5...
  • Page 25: Notes

    Notes:...
  • Page 28 MK Martin Enterprise Inc. 3950 Steffl er Rd Elmira, ON, Canada N3B 2Z3 Tel: 519-664-2752 Toll Free: 1-855-664-2752 Fax: 519-664-3695 E-mail: sales@mkmartin.ca www.mkmartin.ca...
