53-1002127-03
22 July 2013
Flush Mount Rack Kit
Installation Procedure
Supporting the Brocade VDX 6710-54, VDX 6720-24, VDX 6720-60, VDX
6730-32, VDX 6730-76, and VDX 6740
53-1002127-03
*53-1002127-03*
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VDX 6710-54 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Brocade Communications Systems VDX 6710-54

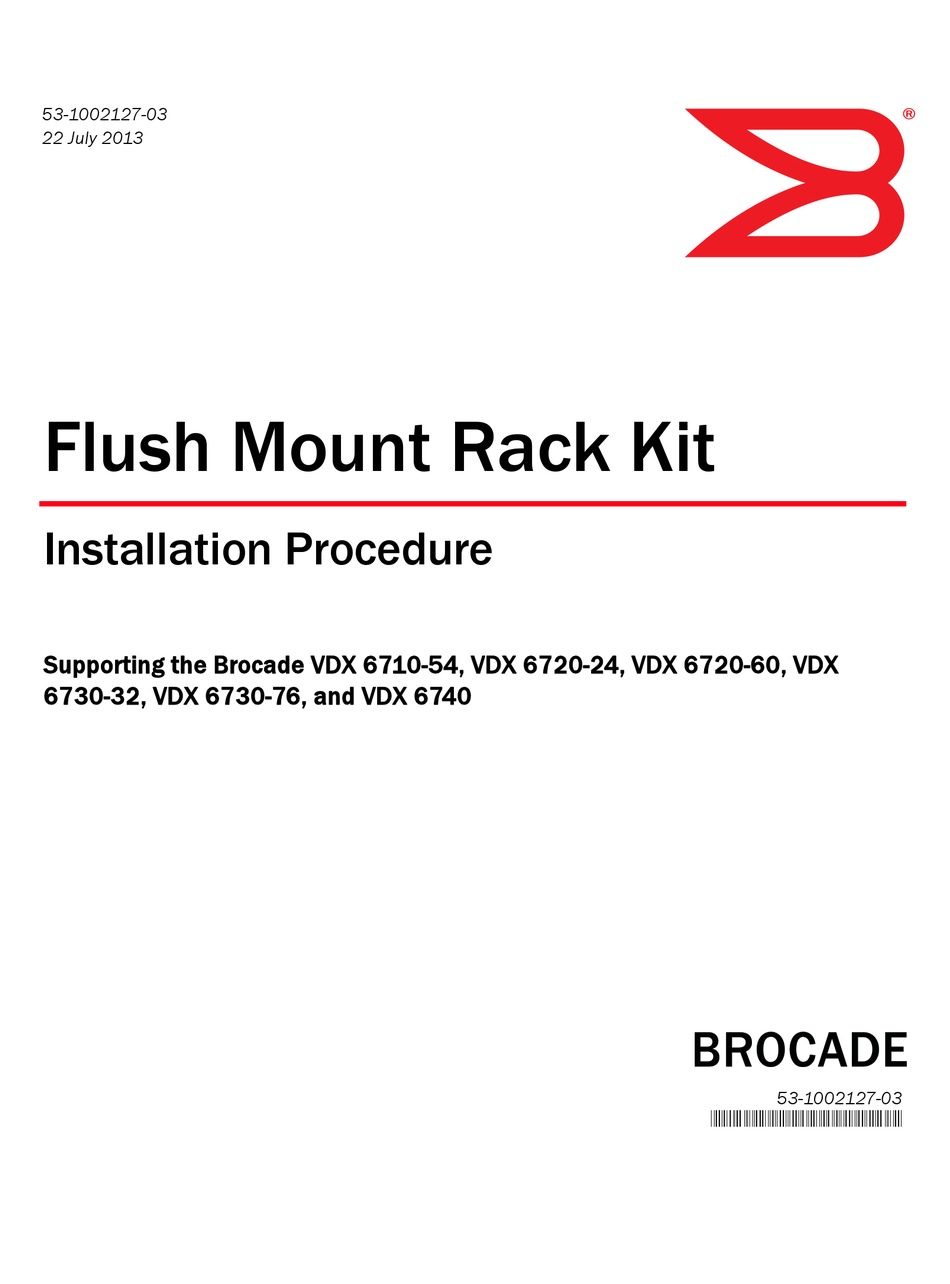

  • Page 1 53-1002127-03 ® 22 July 2013 Flush Mount Rack Kit Installation Procedure Supporting the Brocade VDX 6710-54, VDX 6720-24, VDX 6720-60, VDX 6730-32, VDX 6730-76, and VDX 6740 53-1002127-03 *53-1002127-03*...
  • Page 2 United States government. The authors and Brocade Communications Systems, Inc. shall have no liability or responsibility to any person or entity with respect to any loss, cost, liability, or damages arising from the information contained in this book or the computer programs that accompany it.
  • Page 3: Introduction

    Contents This document provides instructions to install a Brocade VDX 6710-54 (1U), VDX 6720-24 (1U), VDX 6730-32 (1U), VDX 6720-60 (2U), VDX 6730-76 (2U), or VDX 6740 (1U) switch in a telecommunications (Telco) rack using the Flush Mount Kit. The document is organized as follows.
  • Page 4: Tool Requirements And Parts List

    ATTENTION Install the switch with the airflow aligned with any other switches in the rack. Some switches have airflow running from port side to fan side and others have the opposite arrangement. Make sure that the airflow for all switches moves in the same direction to maximize cooling.
  • Page 5: Installation Procedure

    scale: 3/16" = 1" (12x) (8x) (8x) (8x) (8-32 x 5/16 in.) (6-32 x 1/4 in.) (10-32 x 5/8 in.) (10-32) Front brackets, right and left Screw, 6-32 x 1/4-in., flathead Phillips Rear brackets, right and left Screw, 10-32 x 5/8-in., panhead Phillips Screw, 8-32 x 5/16-in., panhead Phillips Retainer nut, 10-32 FIGURE 1...
  • Page 6 • “Attaching rear brackets to the switch” Attaching front brackets to the switch Complete the following steps to attach the front brackets to the switch. 1. Position the right front bracket with the flat side against the right side of the switch as shown in Figure 2.
  • Page 7 Attaching front brackets to a rack Complete the following steps to install the switch in the rack. 1. Position the switch in the rack (Figure 3), providing temporary support under the switch until the rail kit is fully secured to the rack. 2.
  • Page 8 Attaching rear brackets to a rack Complete the following steps to attach the rear brackets to the rack. 1. Position the right rear bracket in the right rear of the switch as shown in Figure 2. Attach the brackets to the right rack upright using three 10-32 x 5/8-in. screws and retainer nuts. 3.
  • Page 9 Attaching rear brackets to the switch Complete the following steps to attach the rear brackets to the switch. 1. Align the right rear bracket to the right rear of the switch and using two 8-32 x 5/16-in. screws, attach the bracket to the switch as shown in Figure 2.
  • Page 10 10 of 10 Flush Mount Rack Kit Installation Procedure 53-1002127-03...
