53-1002176-03
5 August 2013
Slim Rail Rack Mount Kit
Installation Procedure
Supporting Brocade 6510, 6505
53-1002176-03
*53-1002176-03*
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Slim Rail Rack Mount and is the answer not in the manual?

Questions and answers

Summary of Contents for Brocade Communications Systems Slim Rail Rack Mount

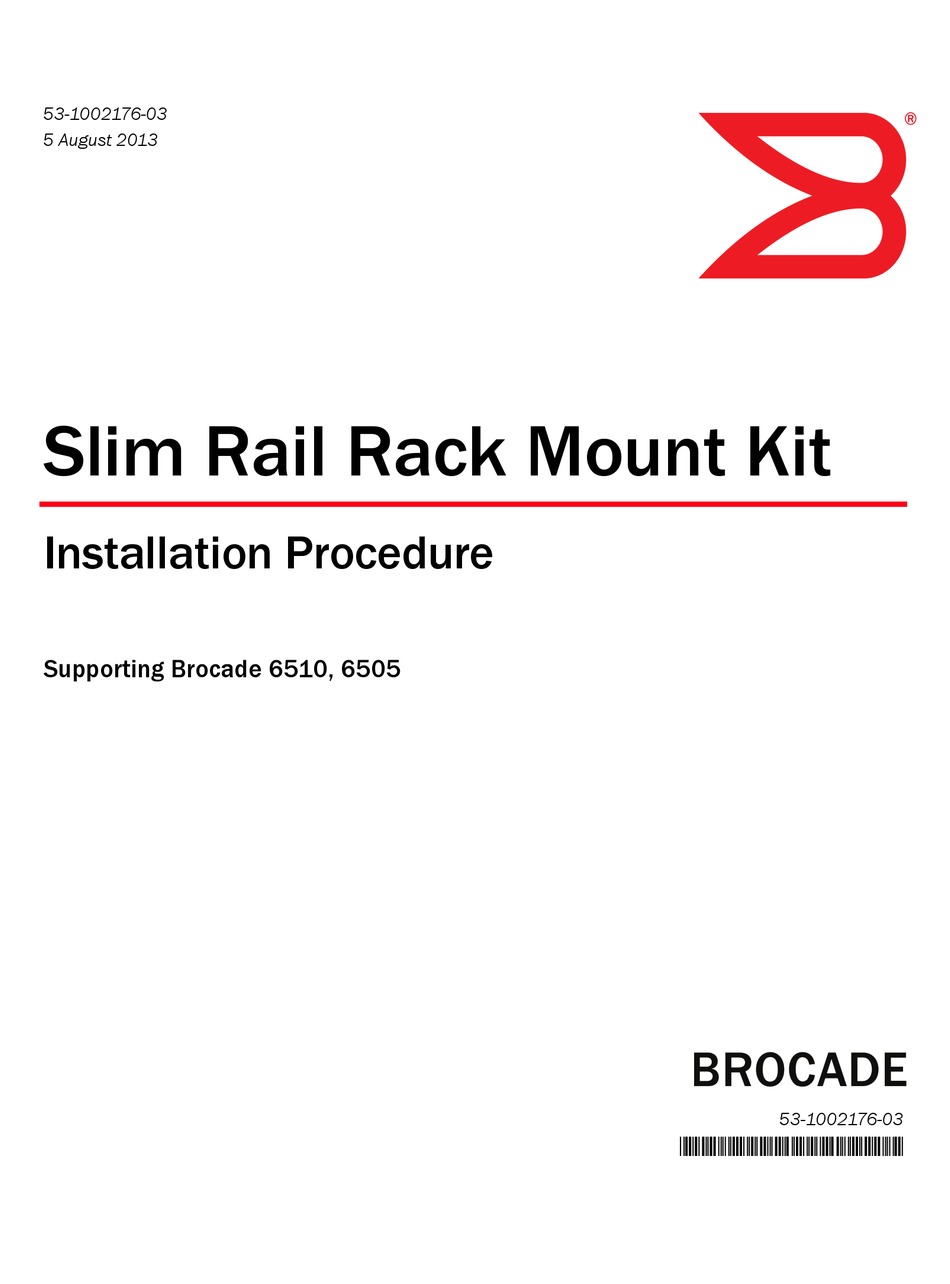

  • Page 1 53-1002176-03 ® 5 August 2013 Slim Rail Rack Mount Kit Installation Procedure Supporting Brocade 6510, 6505 53-1002176-03 *53-1002176-03*...
  • Page 2 United States government. The authors and Brocade Communications Systems, Inc. shall have no liability or responsibility to any person or entity with respect to any loss, cost, liability, or damages arising from the information contained in this book or the computer programs that accompany it.
  • Page 3: Installation Requirements

    Clamps or other means of temporarily supporting the switch in the rack. • Phillips #2 screwdriver with torque capability. • 1/4 in. slotted-blade screwdriver with torque capability. Slim Rail Rack Mount Kit Installation Procedure 3 of 10 Publication Number: 53-1002176-03...
  • Page 4: Parts List

    Screw, 6-32 x 1/4 in., flathead Phillips (torque to 9 in-lb, 10 cm-kg) 52-0000211 Screw, 10-32 x 5/8 in., panhead Phillips (torque to 25 in-lb, 29 cm-kg) 8 52-0000210 Retainer nut, 10-32 52-0000270 Retainer nut, 10-32, round holes 4 of 10 Slim Rail Rack Mount Kit Installation Procedure Publication Number: 53-1002176-03...
  • Page 5 Retainer nut, 10-32, (for square-hole rack rails) Bracket, rear right Retainer nut, 10-32, (for round-hole rack rails) Screw, 8-32 x 5/16 in., panhead Phillips FIGURE 1 Items in slimline fixed rack mount kit Slim Rail Rack Mount Kit Installation Procedure 5 of 10 Publication Number: 53-1002176-03...
  • Page 6: Installation Procedure

    Bracket, front right Screw, 8-32 x 5/16 in., panhead Phillips (5 per side) Bracket, front left FIGURE 2 Position the front bracket (6510 shown, 6505 similar) 6 of 10 Slim Rail Rack Mount Kit Installation Procedure Publication Number: 53-1002176-03...
  • Page 7: Installing The Switch In The Rack

    2. Attach the brackets using four 6-32 x 1/4 in. screws. 3. Adjust the brackets to rack depth and tighten the screws to a torque of 9 in-lb (10 cm-kg). Slim Rail Rack Mount Kit Installation Procedure 7 of 10...
  • Page 8 Do not connect the switch to the network until the IP address is correctly set. Refer to the appropriate hardware reference manual for information on setting the IP address for the switch. 8 of 10 Slim Rail Rack Mount Kit Installation Procedure Publication Number: 53-1002176-03...
  • Page 9 Retainer nut, 10-32, square or round holes as needed Bracket, rear right Screw, 10-32 x 5/8 in., panhead Phillips FIGURE 5 Attach the rear bracket to the rack post (6510 shown, 6505 similar) Slim Rail Rack Mount Kit Installation Procedure 9 of 10 Publication Number: 53-1002176-03...
  • Page 10 10 of 10 Slim Rail Rack Mount Kit Installation Procedure Publication Number: 53-1002176-03...
