CHARLOTTE
Bassinet Model # 036100
IMPORTANT:
RETAIN FOR FUTURE REFERENCE, READ CAREFULLY

Advertisement

loading
Need help?

Need help?

Do you have a question about the CHARLOTTE 036100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Childcare CHARLOTTE 036100

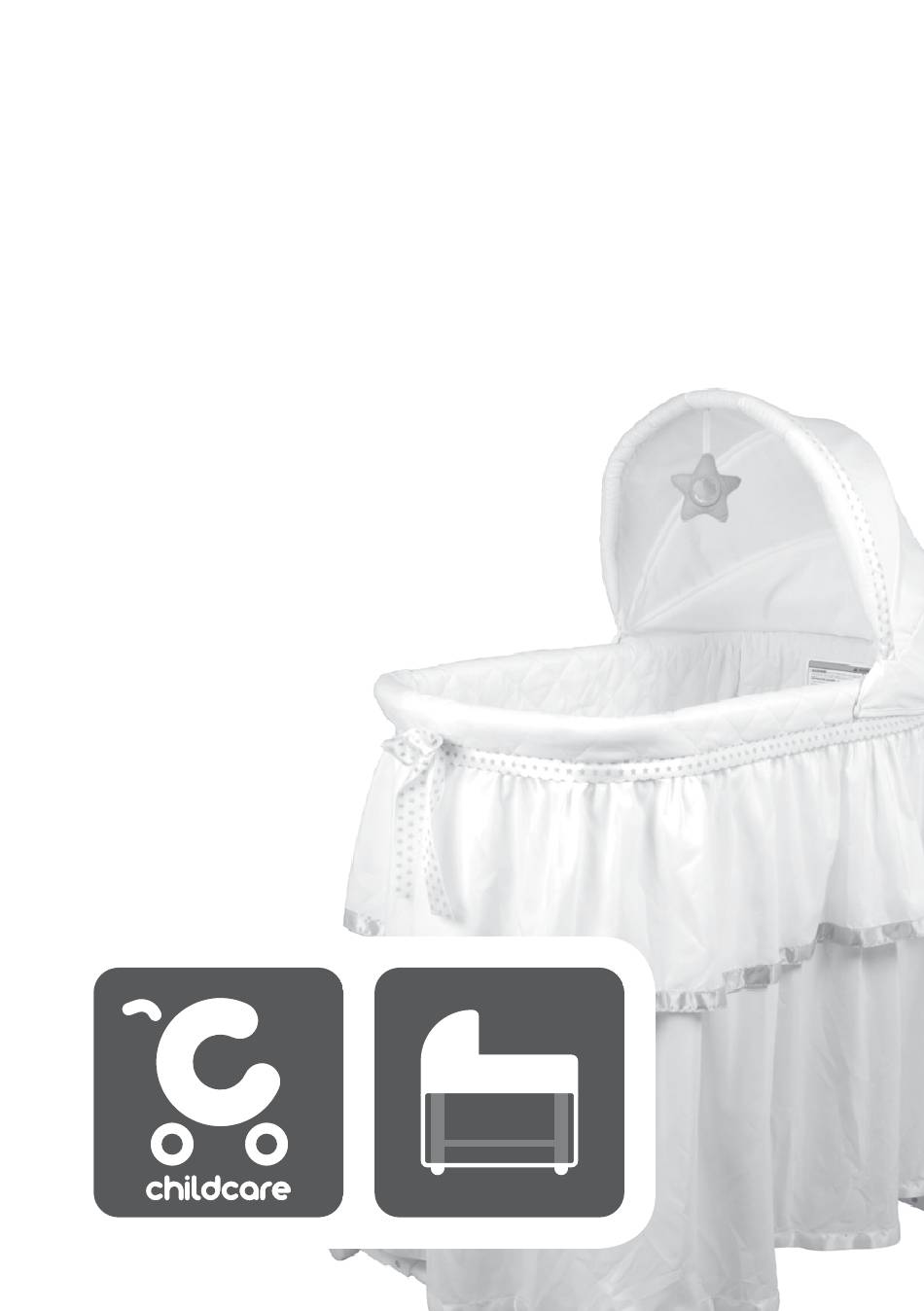

  • Page 1 CHARLOTTE Bassinet Model # 036100 IMPORTANT: RETAIN FOR FUTURE REFERENCE, READ CAREFULLY...
  • Page 2 Safety Precautions Read all instructions before assembly and use of the bassinet. Keep instructions for future use. CAUTION: RECOMMENDED MATTRESS (SUPPLIED) SIZE IS 420MM WIDE X 820MM LONG X 20-25MM IN THICKNESS MAXIMUM SIZE. IT IS RECOMMENDED THAT THE MATTRESS USED IN THIS ROCKING CRADLE BE A SNUG FIT AND NOT EXCEED 40MM IN THICKNESS.
  • Page 3 Assembly contents list Assembly / Operating instructions How to care for your Childcare Bassinet Due to variations in the style and design of our products, the photographs and illustrations shown in this instruction manual are generic, therefore product fabrics, colour and design may vary from images shown.
  • Page 4 Assembly Contents Check what you have received... You have received 1 box. Please check the contents of the box against the list below. If anything is missing, please contact Customer Service. In Australia, contact CNP Brands on 1300 667 137, in New Zealand contact Wainhouse Distribution on 0800 567 5000.
  • Page 5 Assembly Contents Support rod Canopy with soft toy 26mm screw & lock nut 40mm screw and lock nut 40mm screw Tools required Phillips head screw driver Spanner...
  • Page 6 Assembly / Operating Instructions Inserting leg frames PLEASE NOTE: The assembly of this bassinet may required two people. Insert one leg frame downwards through two of the corner loops on the bottom shelf. Ensure the dividers of the shelf are facing upwards.
  • Page 7 Assembly / Operating Instructions In all four corners of the assembled frame, ensure that the holes _____on the base frame moulds, the leg frames and the support rods _____are aligned. Insert a 40mm screw through the aligned holes to _____secure. Lift assembled frame to ensure all screws are inserted and _____secured properly.
  • Page 8 Assembly / Operating Instructions Inserting mattress support board Place the mattress support board, so that the two holes in the mattress support board align with the two holes in the main frame. Insert two 26mm screws through the holes, secure with two _____corresponding lock nuts.
  • Page 9 Assembly / Operating Instructions Stretch the pockets on the bottom of the bassinet liner around _____ the ends of the mattress support board. Attach four press studs on the bottom of the bassinet liner to the bottom of the mattress support board. _____ Inserting mattress pad Insert the mattress pad into the bassinet on top of the bassinet...
  • Page 10 Assembly / Operating Instructions Attaching canopy Position the canopy over the top end of the bassinet (the warning label end). Push the canopy ratchets onto the frame on both sides of the bassinet. Ensure canopy ratchets are attached through the slots in the bassinet liner and there is no foam restricting them.
  • Page 11 Assembly / Operating Instructions Rocking mode To convert bassinet from stationary to rocking mode; lay bassinet down on it’s side. Pull wheel outwards. Push wheel upwards and into the castor’s mould. Repeat steps 2 & 3 for remaining wheels. Reversible top skirt Top reverse top skirt;...
  • Page 12 How to care for your Childcare bassinet Cleaning To ensure the long-lasting use of your bassinet, dry it with a soft absorbent cloth after use. Use a damp cloth to clean the frame. Do not use abrasive cleaners. Allow it dry completely before folding or storing it away.
  • Page 14 Distributed in Australia by CNP Brands, 20 Calarco Drive, VIC, 3030 Customer Service 1300 667 137 www.cnpbrands.com.au Distributed in New Zealand by Wainhouse Distribution, 2-6 Argyle St, Morningside, PO Box 41-014, St Lukes, Auckland, New Zealand Customer Service: 0800 567 5000 helpline@wainhousedist.co.nz...
