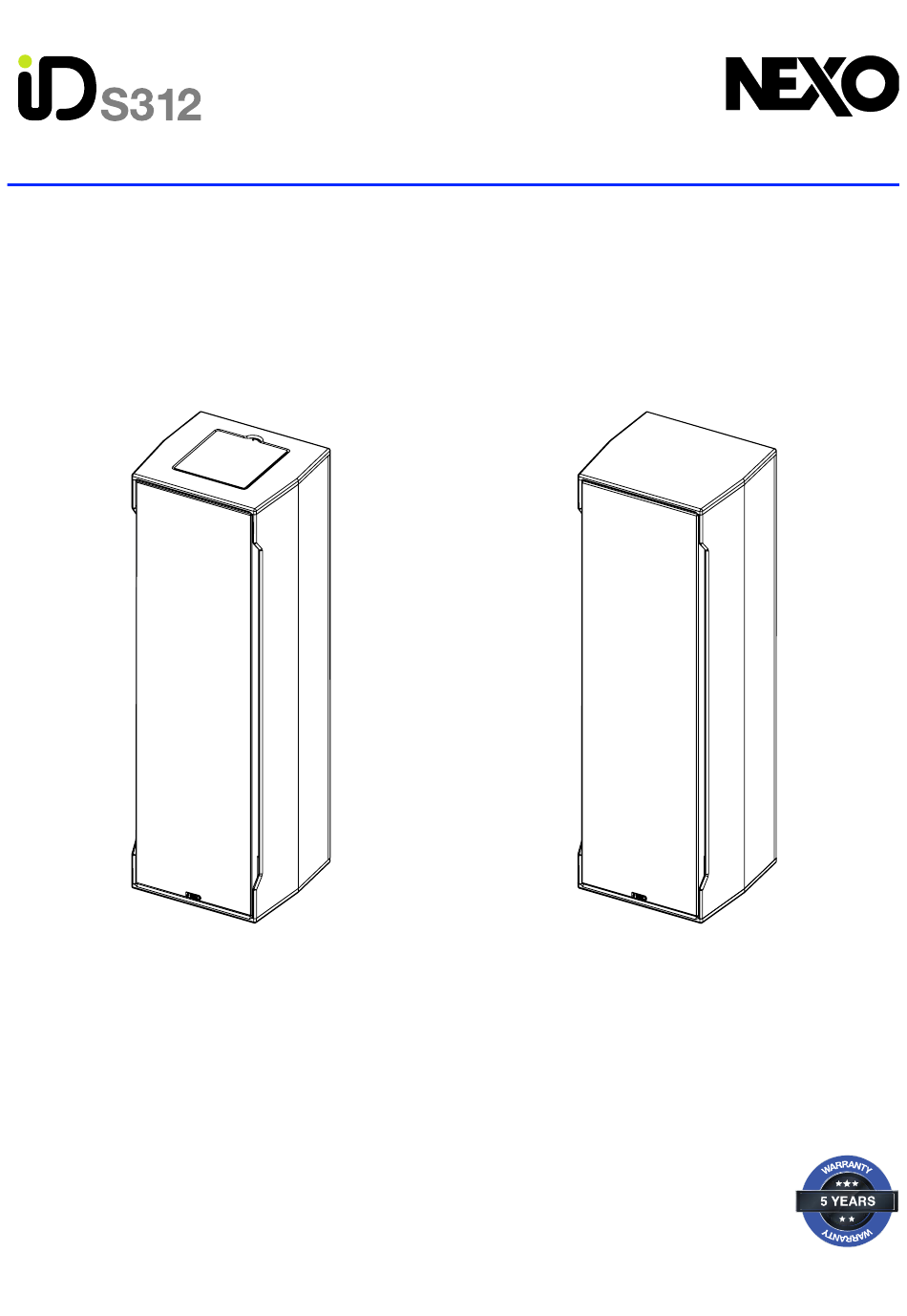

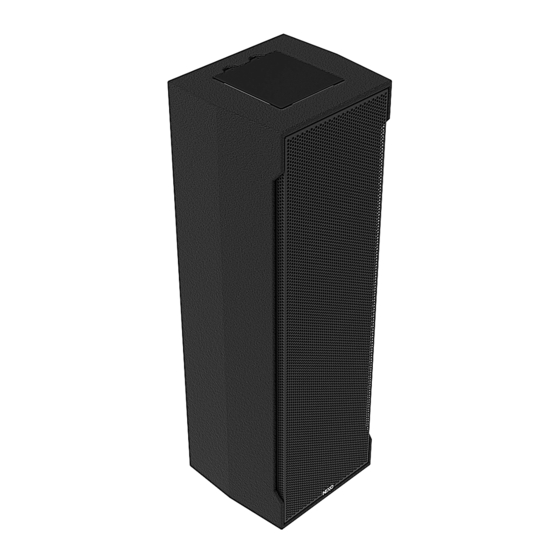

- Page 1 DP5634-01-DI IDS312 User manual...
-
Page 2: Table Of Contents
ARRAY EQ _____________________________________________________________________________ 8 MAINTENANCE _________________________________________________________________________ 9 TECHNICAL SPECIFICATIONS ___________________________________________________________ 12 USER NOTES _________________________________________________________________________ 13 EU Conformity declaration NEXO SA ZA DU PRE DE LA DAME JEANNE 60128 PLAILLY – France Declare under our sole responsibility that the product Loudspeaker... -
Page 3: Warnings
If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician. Do not expose the system directly to the sun or to the rain, do not immerse it into fluids, do not place objects filled with liquid on the system. -
Page 4: Equipment
Equipment EQUIPMENT Quick connect in the top cover for ID84. (except IDS312-1), 2x NL4 connectors (cable gland for IDS312-I). 1 location for accessory assembly. Assembly with ID84 Open the trap above IDS312. Place ID84 on IDS312, magnet keeps it in place IMPORTANT Speaker must always be installed on a horizontal surface. -
Page 5: Description
ID84 (except IDS312-I). → IDS312 / IDS312-TIS uses the 1+/1- pins, (2+/2- through). → IDS312-I is equipped with a cable gland M20 (clamping range, Ø 5 to 12 mm), supplied with a fixed cable 2x 2.5 mm section, length 2m, outside diameter 12mm ±1 mm... -
Page 6: Preset
PRESET PRESET Please consult nexo-sa.com for NEXO TD Controllers firmware information. • 40 Hz – 85 Hz • 40 HZ – 120 Hz • 40 Hz – 150 HZ. • 63 Hz – 120 Hz • 63 Hz – 150 Hz... -
Page 7: Accessories
All IDS312 accessories are specifically rated in agreement with structural computations. Never use other accessories – including push-pins – when assembling IDS312 cabinets than the ones provided by NEXO: NEXO will decline responsibility over the entire IDS312 accessory range if any component is purchased from different supplier. -
Page 8: Array Eq
ARRAY EQ ARRAY EQ The ArrayEQ allows to adjust the system frequency response in its lower range (see curves below, with different ArrayEq values): ID 4 rray ad ustin re uency Page 8 / 14 IDS312... -
Page 9: Maintenance
MAINTENANCE MAINTENANCE Grille Changing: • Remove 2 screws. Tx25. Tightening torque 2.0Nm • Tilt slightly the grille and pull it downward. 12’’ Driver • Remove 8 screws for each driver. Tightening torque 3.5Nm Page 9 / 14 IDS312... - Page 10 MAINTENANCE Spare parts IDS312 T&TIS MARK QUANTITY REFERENCE DESIGNATION 05IDS312TOP Top cover plate Black 05IDS312TOP-PW Top cover plate White 05HPB12ND HP12 05N12ND-4R/K Recone kit 05IDS312UA Complete grille Black (with fasteners) for T version 05IDS312UA-PW Complete grille White (with fasteners) for T version...
- Page 11 IDS312-I MARK QUANTITY REFERENCE DESIGNATION 05HPB12ND HP12 05N12ND-4R/K Recone kit 05IDS312UA-I IDS312 grille Install Black 05IDS312UA-IPW IDS312 grille Install White 05PATIN100 Rubber pad with nuts & washers 05PREPM20-2 Cable gland Black 05PREPM20-2PW Cable gland White Page 11 / 14 IDS312...
-
Page 12: Technical Specifications
Magnelis® front grille – Automotive grade front cloth (versions I and TIS) Handle on the back Fittings Threated M6 inserts on the back Quick connect in the top cover (except IDS312-I) 2x NL4, 4 poles connectors Connector 1x cable gland with 2x core cable (version I) Weight 31 kg / 68.3 lb... -
Page 13: User Notes
USER NOTES USER NOTES Page 13 / 14 IDS312... - Page 14 Tel: +33 3 44 99 00 70 NEXO S.A. Fax: +33 3 44 99 00 30 E-mail: info@nexo.fr Parc d’activité de la Dame Jeanne nexo-sa.com F-60128 PLAILLY Page 14 / 14 IDS312...
