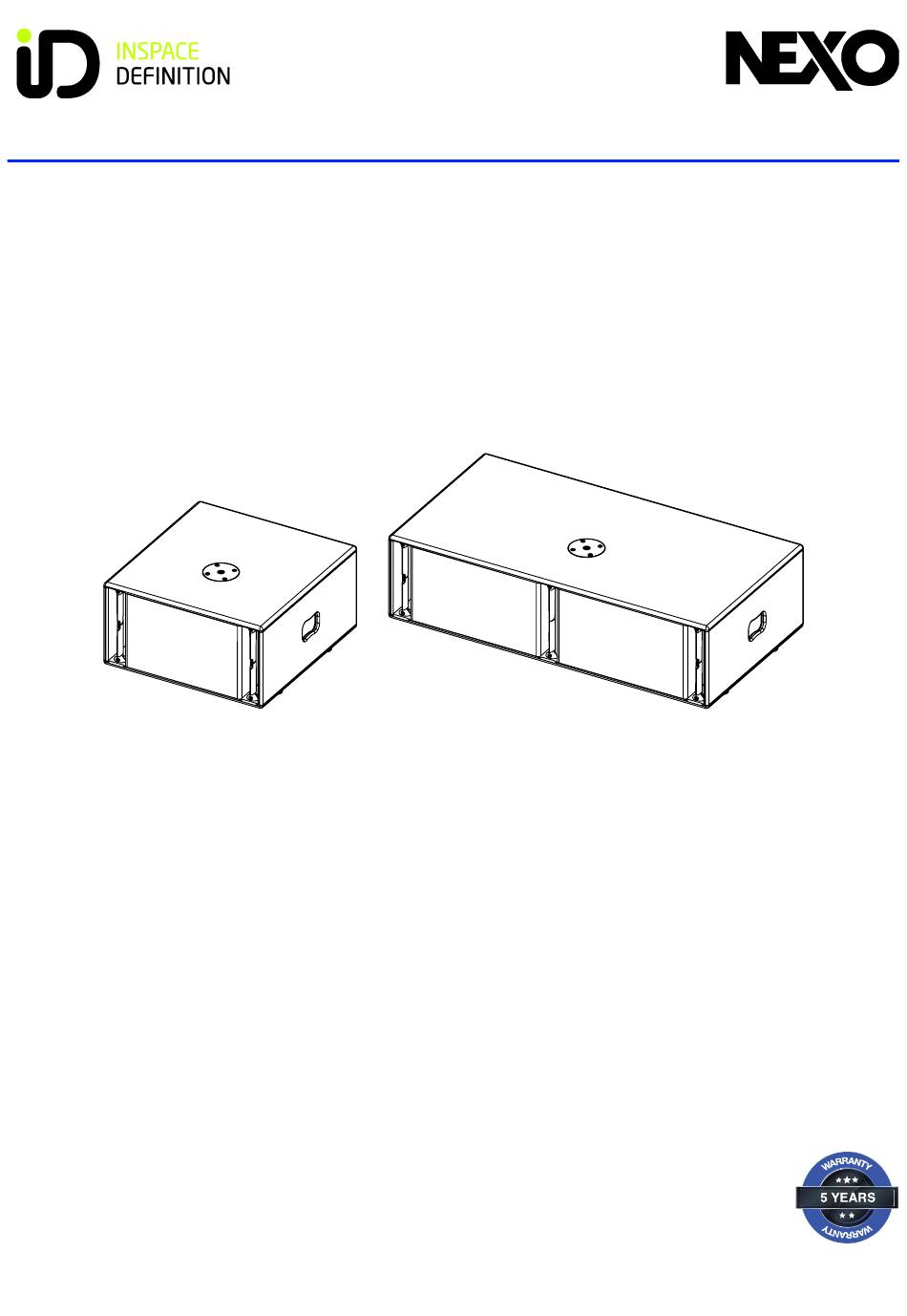

- Page 1 DP2118-05b-DI IDS110i – IDS110t IDS210i – IDS210t User manual...
-
Page 2: Table Of Contents
ARRAY EQ _____________________________________________________________________________ 8 MAINTENANCE _________________________________________________________________________ 9 TECHNICAL SPECIFICATIONS ___________________________________________________________ 11 USER NOTES _________________________________________________________________________ 12 EU Conformity declaration NEXO SA ZA DU PRE DE LA DAME JEANNE 60128 PLAILLY – France Declare under our sole responsibility that the product Passive Loudspeaker IDS110 –... -
Page 3: Warnings
If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician. Do not expose the system directly to the sun or to the rain, do not immerse it into fluids, do not place objects filled with liquid on the system. -
Page 4: Equipment
EQUIPMENT EQUIPMENT Handle on both side, connector plate M20 on the top (only t version), 4x M6 inserts on the bottom (remove the pad). Page 4 / 14 IDS110 - IDS210 - Accessories... - Page 5 EQUIPMENT Assembly on distance rod or speaker stand Place distance rod on the connector plate (M20) of the Sub. Place ID24 on the distance rod / monitor stand IMPORTANT Speaker stand must be rated for ID24 weight. Speaker stand must always be installed on a horizontal surface. Stand height and footprint must be defined to prevent assembly from collapsing.
-
Page 6: Description
→ Amplification • The IDS110 and IDS210 subwoofers MUST be used with a NEXO processor to handle EQ, phase alignment, crossover and excursion/thermal protection for the system loudspeakers. There are two NEXO processor series supporting the IDS110 and IDS210 subwoofers: NXAMP (4-channel) amplified processors and DTD processors DTD (stereo + sub). -
Page 7: Preset
PRESET PRESET Please consult nexo-sa.com for NEXO TD Controllers firmware information. There are two setting ranges for surrounding speakers IDS110 and IDS210: → “OMNI” setups (available on NXAMP and DTD); For a traditional use of the subwoofer in omnidirectional radiation (require at least one subwoofer and a channel of amplifier). -
Page 8: Accessories
All IDS110/210 accessories are specifically rated in agreement with structural computations. Never use other accessories – including push-pins – when assembling IDS110/210 cabinets than the ones provided by NEXO: NEXO will decline responsibility over the entire IDS110/210 accessory range if any component is purchased from different supplier. -
Page 9: Maintenance
MAINTENANCE MAINTENANCE NOTE: Speakers can be sent back to NEXO for recycling 10” driver access Remove 4 screws and the 10” driver. Remove the trap (8 screws). IDS110 IDS210 Page 9 / 14 IDS110 - IDS210 - Accessories... - Page 10 MAINTENANCE Spare parts IDS110 MARK QUANTITY REFERENCE DESIGNATION 05HPB10-4F 10” Driver (with screw and gasket) 05FTCC Pied plastique 38x15 05VXTCBX625N-EM Screw VXCBXN 6x25 (x10) Cage Nut M5 (x10) 05VECRM5-2 05JNEOID10T Trap Gasket 05PID10TRAP Black Trap White Trap 05PID10TRAPSW 05VXTCBX516N-EL Screw VXCBXN 5x16 Black (x10) 05VXTCBX516-EL Screw VXCBX 5x16 White (x10) IDS210...
-
Page 11: Technical Specifications
TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS IDS110 – IDS210 WITH NEXO ELECTRONICS Model IDS110 IDS210 43Hz – 130Hz (+/- 3dB) 43Hz – 130Hz (+/- 3dB) Frequency Range Sensitivity (1W / 1m) 97dB SPL Nominal 103dB SPL Nominal Operating voltage 45Vrms (180Vpeak) 45Vrms (180Vpeak) -
Page 12: User Notes
USER NOTES USER NOTES Page 12 / 14 IDS110 - IDS210 - Accessories... - Page 13 USER NOTES Page 13 / 14 IDS110 - IDS210 - Accessories...
- Page 14 Tel: +33 3 44 99 00 70 NEXO S.A. Fax: +33 3 44 99 00 30 E-mail: info@nexo.fr Parc d’activité de la Dame Jeanne nexo-sa.com F-60128 PLAILLY Page 14 / 14 IDS110 - IDS210 - Accessories...
