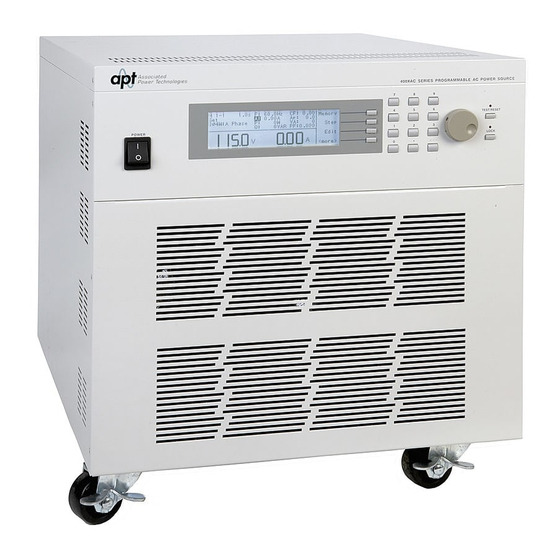

400XAC
Quick Start Guide
3 Phase AC Power Source
MODELS 430XAC, 460XAC
POWER CHECKLIST
Power down output while connections are made.
Output & input cabling have unique AWG carrying capacity.
(Be sure to use the appropriate gauge for your application)
Work in a safe and orderly manner, your test station should always be neat.
Educate unqualified personnel of test area dangers.
Refrain from touching test connections and product while testing.
WARNING: An AC Power Source produces voltages and currents that can cause harmful or fatal electrical shock. This
guide was created for operators who have some familiarity with high voltage/current testing applications. To prevent
accidental injury or death, strictly follow all warnings within this guide.
Advertisement
Table of Contents
Related Manuals for APT 400XAC
Summary of Contents for APT 400XAC
- Page 1 400XAC Quick Start Guide 3 Phase AC Power Source MODELS 430XAC, 460XAC POWER CHECKLIST Power down output while connections are made. Output & input cabling have unique AWG carrying capacity. (Be sure to use the appropriate gauge for your application) Work in a safe and orderly manner, your test station should always be neat.
- Page 2 FRONT PANEL CONTROLS BACK PANEL CONTROLS 2 3 4 5a 5b 5c 5d 430XAC/460XAC Front Panel 460XAC Back Panel Power Switch - Rocker style power switch with international ON ( | ) and OFF (O) markings. External Sense Output Terminal Block - Provides screw terminals for external voltage sense leads.
- Page 3 CHECKLIST BEFORE USING YOUR INSTRUMENT. In the System Parameters Menu, use the ( ,)arrow keys to highlight the “OC FOLD” parameter. The 400XAC includes TWO TEST MODES which change the way your AC Power Source operates. Press EDIT to change the parameter.
- Page 4 APPLICATION CONFIGURATIONS APPLICATION CONFIGURATIONS The figures below illustrate how the 400XAC can be fully configured for an automated test setup. Line ØA Neutral Load Neutral ØC ØB Line 2 (Figure 1: 3Ø4W Configuration) (Figure 4: 1Ø3W Configuration) ØA Load ØC ØB...
- Page 5 VIEW TEST RESULTS From the Set screen, press the MORE soft key. Then press the Results key to view your test results. (Pass/Fail Indication screen) If you have multiple steps linked together, use the ( ,) arrow keys to toggle though each step to view test results.
