PIAGGIO MP3 300 hpe 2020 Manual page 85

Fuse no. 7
Fuse no. 8
Protected circuits: electric fan.
Capacity: 7.5 A
Protected circuits: injection load
relay, injection control unit.
Capacity: 15 A
Protected circuits: high/low beam
light.
Protected circuits (live): Fuse
No. 12.

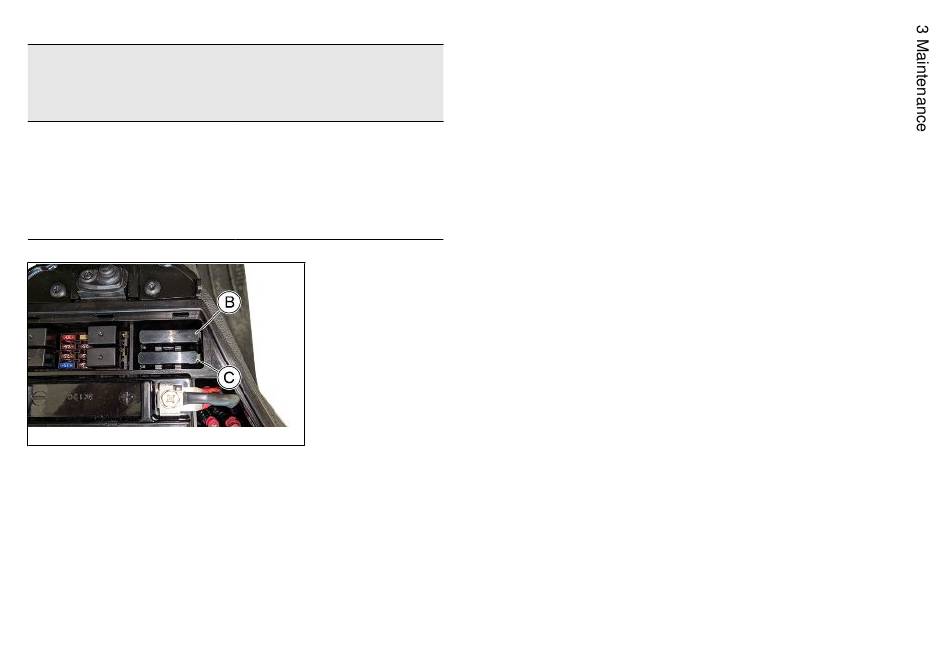

The boxes "B" and "C" are located on the right side.
To gain access to the fuses, open the boxes as illustrated in the figure.
03_28
