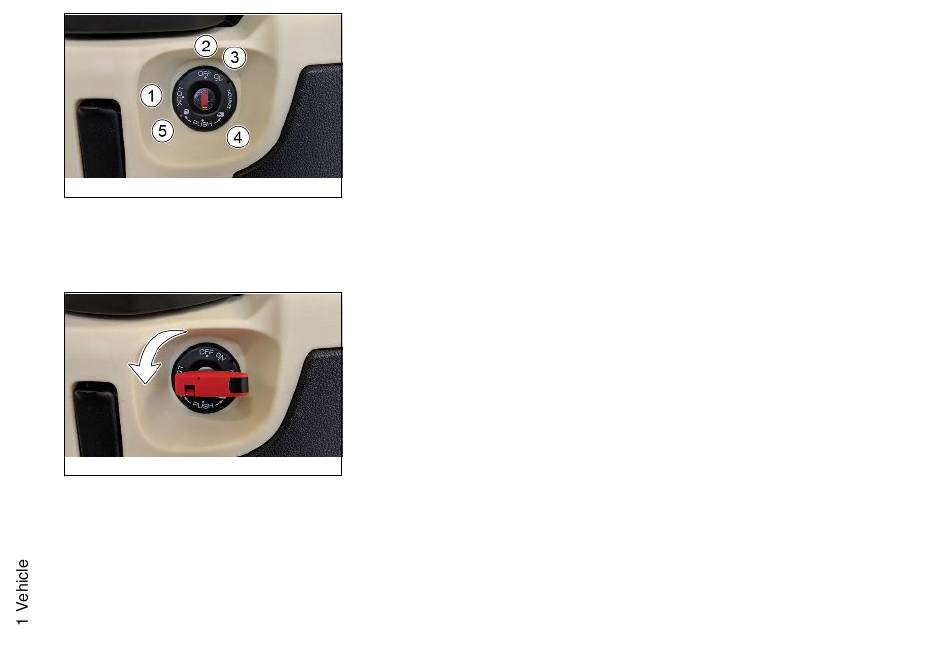

Keyswitch (01_27)

1. «LOCK » = Inhibited engine, key can be removed, mechanical block on.
Parking brake cannot be removed if on, and cannot be activated if not already
in use.
2. «OFF» = Inhibited engine, key is removable, mechanical anti-theft not acti-
vated, and parking brake can be activated or deactivated.
3. «ON» = Engine enabled for operation, key not removable, mechanical anti-
theft not activated.
4. «HELMET COMPARTMENT OPENING» = Opening of helmet compartment
position, this is obtained by pushing in the key in the «OFF» or «ON» position
01_27
and turning the key counter-clockwise.
5. «OPENING THE GAS TANK» = Opening of gas tank position, this is ob-
tained by pushing in the key in the «OFF» or «ON»position and turning it
clockwise.

Locking the steering wheel (01_28)

Turn the handlebar to the left (as far as it will go), turn the key to «LOCK» and remove
the key.
01_28
