Compliance Light
In addition to automatically aligning errors with
the position of workpiece insertion, Compliance
Light can be used for press fitting processes.
Improves process during workpiece
insertion and press fitting
Lightweight and compact
High rigidity and withstand load capacity
The parallel type can be used as a press fitting base
4 sizes
□34 mm [1.339 in.], ⃞54 mm [2.126 in.],
□70 mm [2.756 in.], □90 mm [3.543 in.]
Parallel type
(Moves in the X, Y, and θ axes)

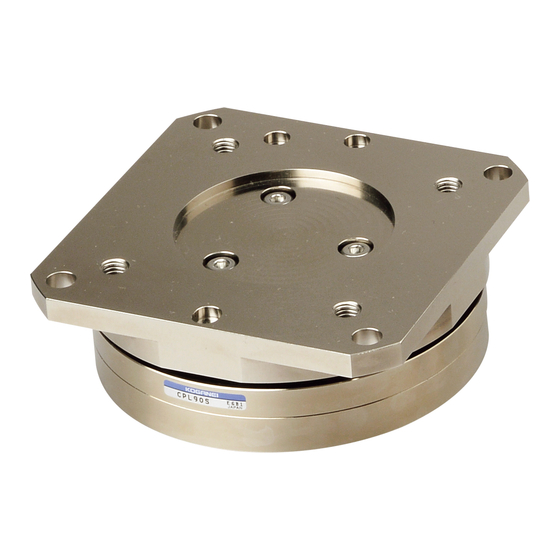

Compliance Light
CPL70F (parallel type)
Mounting plate
Flat type air hand
AFDPG-8
Catalog No.BK-0043-②
* Please purchase the installation plate separately.
Swing type
(Moves in the X, Y, Z, θ, and α axes)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Koganei CPL34F
Summary of Contents for Koganei CPL34F

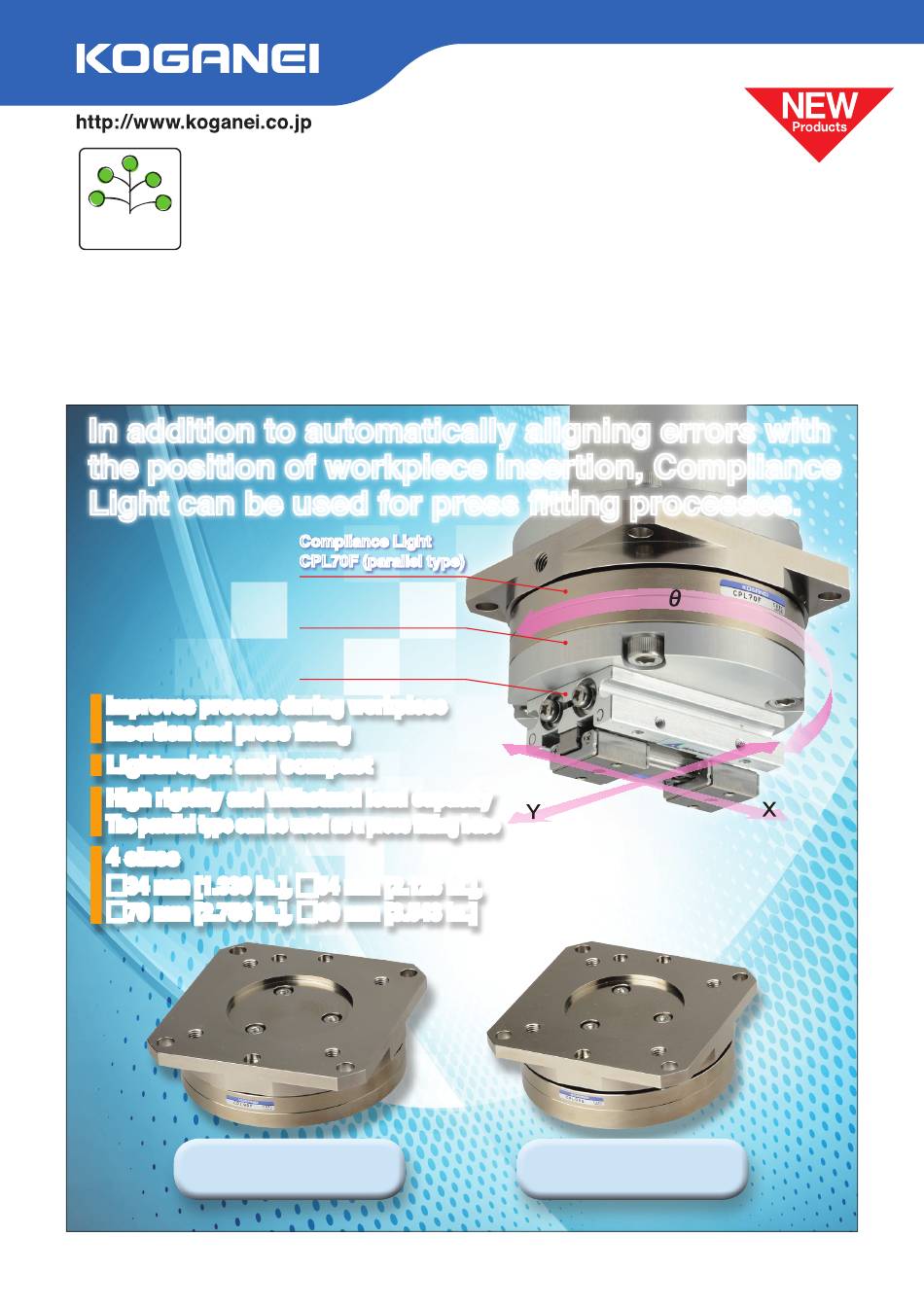

- Page 1 Catalog No.BK-0043-② RoHS compliant product Compliance Light In addition to automatically aligning errors with the position of workpiece insertion, Compliance Light can be used for press fitting processes. Compliance Light CPL70F (parallel type) Mounting plate Flat type air hand AFDPG-8 Improves process during workpiece insertion and press fitting Lightweight and compact...
-
Page 2: Explanation Of Operation
Error correction Completion of workpiece insertion functioning workpiece insertion ● You can also select no centripetal force (no restraining rings) as an option. CPL90F CPL70F CPL54F CPL34F CAUTION ❶ Read the safety precautions on page 3 before using this product. ●... - Page 3 Such use could result in product breakdowns, functions to reduce performance and functions or stop functions. stop, and damage. or drastically reduce the operating life. ● Because Koganei products may be used under a wide variety ● Before supplying air to the product and before starting of conditions, decisions concerning conformance with a...
- Page 4 Koganei overseas department for details. application with enough margins for ratings and performance 2. Scope of Warranty and General Disclaimer or failsafe measure. (1) W hen a product purchased from Koganei or from an Be sure to consult us about such applications. ● Use a protective cover, etc., to ensure that human bodies do authorized Koganei distributor or agent malfunctions...
- Page 5 1. Use air as the medium. For the use of any other medium, 5. Be careful that error correction (compliance) is not obstructed consult your nearest Koganei sales office. by piping and wiring when mounting hands, etc., to the 2. Air used for the product should be clean air that contains no mounting surface.
-
Page 6: Tightening Torque
1.0 〜 1.5 [0.738 〜 1.106] M5×0.8 ● Mounting a workpiece Workpiece Maximum tightening torque Model Bolt m [ft lbf]) (mm [in.]) (mm [in.]) (mm [in.]) • • CPL34F M3×0.5 0.63 [0.465] 4.3 [0.169] 1 [0.039] 5.3 [0.209] CPL54F M5×0.8 3 [2.213] 5.2 [0.205] 1.5 [0.059] 6.7 [0.264] Parallel type CPL70F M5×0.8 3 [2.213]... - Page 7 Compliance Light Parallel type Specifications Basic type CPL34F CPL34F-N CPL54F CPL54F-N CPL70F CPL70F-N CPL90F CPL90F-N Item Bore size mm [in.] 6 [0.236] 10 [0.394] 16 [0.630] 20 [0.787] □34 [□1.339] □54 [□2.126] □70 [□2.756] □90 [□3.543] Dimensions mm [in.] Height mm [in.] 18 [0.709] 22 [0.866] 25 [0.984] 28 [1.102] Mass g [oz.]...
- Page 8 Inner construction Major parts and materials Model ⑧ ⑦ ⑬ ④ ⑫ ⑥ ① ② CPL34F CPL54F CPL70F CPL90F Name ① Unit Aluminum alloy (electroless nickel plated) ● ② Frame Aluminum alloy (electroless nickel plated) ③ Plate Aluminum alloy (electroless nickel plated) ●...
- Page 9 Dimensions (mm [in.]) CPL34F CPL54F ＋0.03 ＋0.03 Depth 3 [0.118] Depth 3 [0.118] 4-φP 0 0 φ S ＋0.03 Depth U 4-V Depth W 0 φ S (Connection port) ＋0.03 Depth T φ Q ＋0.03 Depth 3 [0.118] 0 0 φ Q ＋0.03...
- Page 10 Limited Warranty • KOGANEI CORP. shall in no way be liable or responsible for KOGANEI CORP. warrants its products to be free from defects injuries or damage to persons or property arising out of the in material and workmanship subject to the following provisions.
