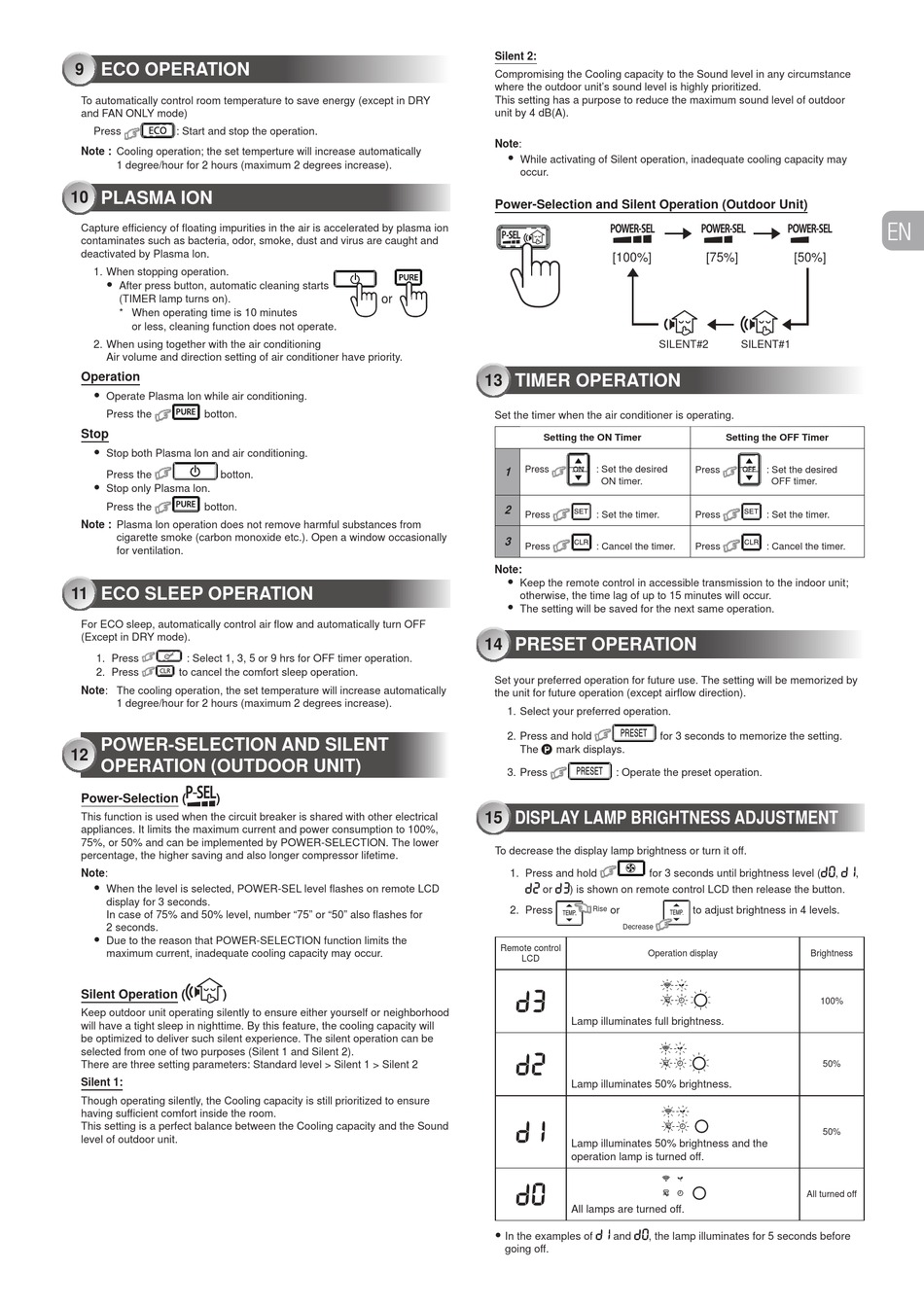

Carrier 42TVAB036 Owner's Manual page 5

ECO OPERATION
9
To automatically control room temperature to save energy (except in DRY
and FAN ONLY mode)
Press : Start and stop the operation.
Note : Cooling operation; the set temperture will increase automatically
1 degree/hour for 2 hours (maximum 2 degrees increase).
PLASMA ION
10
Capture effi ciency of fl oating impurities in the air is accelerated by plasma ion
contaminates such as bacteria, odor, smoke, dust and virus are caught and
deactivated by Plasma lon.
1. When stopping operation.
● After press button, automatic cleaning starts
(TIMER lamp turns on).
* When operating time is 10 minutes
or less, cleaning function does not operate.
2. When using together with the air conditioning
Air volume and direction setting of air conditioner have priority.
Operation
● Operate Plasma lon while air conditioning.
Press the botton.
Stop
● Stop both Plasma lon and air conditioning.
Press the botton.
● Stop only Plasma lon.
Press the botton.
Note : Plasma lon operation does not remove harmful substances from
cigarette smoke (carbon monoxide etc.). Open a window occasionally
for ventilation.
ECO SLEEP OPERATION
11
For ECO sleep, automatically control air fl ow and automatically turn OFF
(Except in DRY mode).
1. Press : Select 1, 3, 5 or 9 hrs for OFF timer operation.
2. Press to cancel the comfort sleep operation.
Note: The cooling operation, the set temperature will increase automatically
1 degree/hour for 2 hours (maximum 2 degrees increase).
POWER-SELECTION AND SILENT
12
OPERATION (OUTDOOR UNIT)
Power-Selection ( )
This function is used when the circuit breaker is shared with other electrical
appliances. It limits the maximum current and power consumption to 100%,
75%, or 50% and can be implemented by POWER-SELECTION. The lower
percentage, the higher saving and also longer compressor lifetime.
Note:
● When the level is selected, POWER-SEL level fl ashes on remote LCD
display for 3 seconds.
In case of 75% and 50% level, number "75" or "50" also fl ashes for
2 seconds.
● Due to the reason that POWER-SELECTION function limits the
maximum current, inadequate cooling capacity may occur.
Silent Operation ( )
Keep outdoor unit operating silently to ensure either yourself or neighborhood
will have a tight sleep in nighttime. By this feature, the cooling capacity will
be optimized to deliver such silent experience. The silent operation can be
selected from one of two purposes (Silent 1 and Silent 2).
There are three setting parameters: Standard level > Silent 1 > Silent 2
Silent 1:
Though operating silently, the Cooling capacity is still prioritized to ensure
having suffi cient comfort inside the room.
This setting is a perfect balance between the Cooling capacity and the Sound
level of outdoor unit.
Silent 2:
Compromising the Cooling capacity to the Sound level in any circumstance
where the outdoor unit's sound level is highly prioritized.
This setting has a purpose to reduce the maximum sound level of outdoor
unit by 4 dB(A).
Note:
● While activating of Silent operation, inadequate cooling capacity may
occur.
Power-Selection and Silent Operation (Outdoor Unit)
or
TIMER OPERATION
13
Set the timer when the air conditioner is operating.
Setting the ON Timer
Press
1
2
Press
3
Press
Note:
● Keep the remote control in accessible transmission to the indoor unit;
otherwise, the time lag of up to 15 minutes will occur.
● The setting will be saved for the next same operation.
PRESET OPERATION
14
Set your preferred operation for future use. The setting will be memorized by
the unit for future operation (except airflow direction).
1. Select your preferred operation.
2. Press and hold
The P mark displays.
3. Press
DISPLAY LAMP BRIGHTNESS ADJUSTMENT
15
To decrease the display lamp brightness or turn it off.
1. Press and hold
or
2. Press
Remote control
LCD
● In the examples of
going off.
[100%] [75%]
SILENT#2 SILENT#1
Setting the OFF Timer
: Set the desired
Press
ON timer.
: Set the timer. Press
: Cancel the timer. Press
for 3 seconds to memorize the setting.
: Operate the preset operation.
for 3 seconds until brightness level (
) is shown on remote control LCD then release the button.
or to adjust brightness in 4 levels.
Rise
Decrease
Operation display
Lamp illuminates full brightness.
Lamp illuminates 50% brightness.
Lamp illuminates 50% brightness and the
operation lamp is turned off.
All lamps are turned off.
and , the lamp illuminates for 5 seconds before
EN
[50%]
: Set the desired
OFF timer.
: Set the timer.
: Cancel the timer.
, ,
Brightness
100%
50%
50%
All turned off
