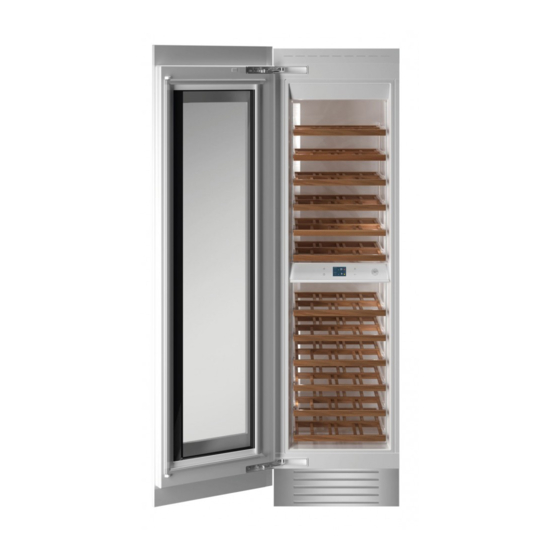

60cm (24”) wine column panel ready

Advertisement

Quick Links

BUILT-IN WINE COLUMNS
60cm (24") Wine Column Panel Ready
Dimensions
WC605BLP2T (left hinge)
WC605BRP2T (right hinge)
SIDE VIEW
22 1/4"
565
80 3/4"
2050
+
1"(25)
5"
127
2 3/4"
70
19 7/8"
505
SIDE VIEW
22 1/4"
565
80 3/4"
2050
+
1"(25)
5"
127
2 3/4"
70
19 7/8"
505
* Maximum Overall Handle Dimension
** Width of 19mm (3/4") Door Panel
For detailed handle dimensions see page 71
FRONT VIEW
71 1/8"
83 1/2"
1808
2120
+
1"(25)
FRONT VIEW
71 1/8"
83 1/2"
1808
2120
+
1"(25)
TOP VIEW
24 1/4"
615
TOP VIEW
4 1/4"
*
108
46 3/4"
**
1187
Dimensions in parentheses are millimeters unless otherwise
specified.
For custom panel dimensions and window cutout see page 69.
24"
4 1/4"
*
609
108
46 3/4"
**
1187
100°
24"
609
24 1/4"
615
100°
bertazzoni.com
49
