BUILT-IN WINE COLUMNS
45cm (18") Wine Column Panel Ready

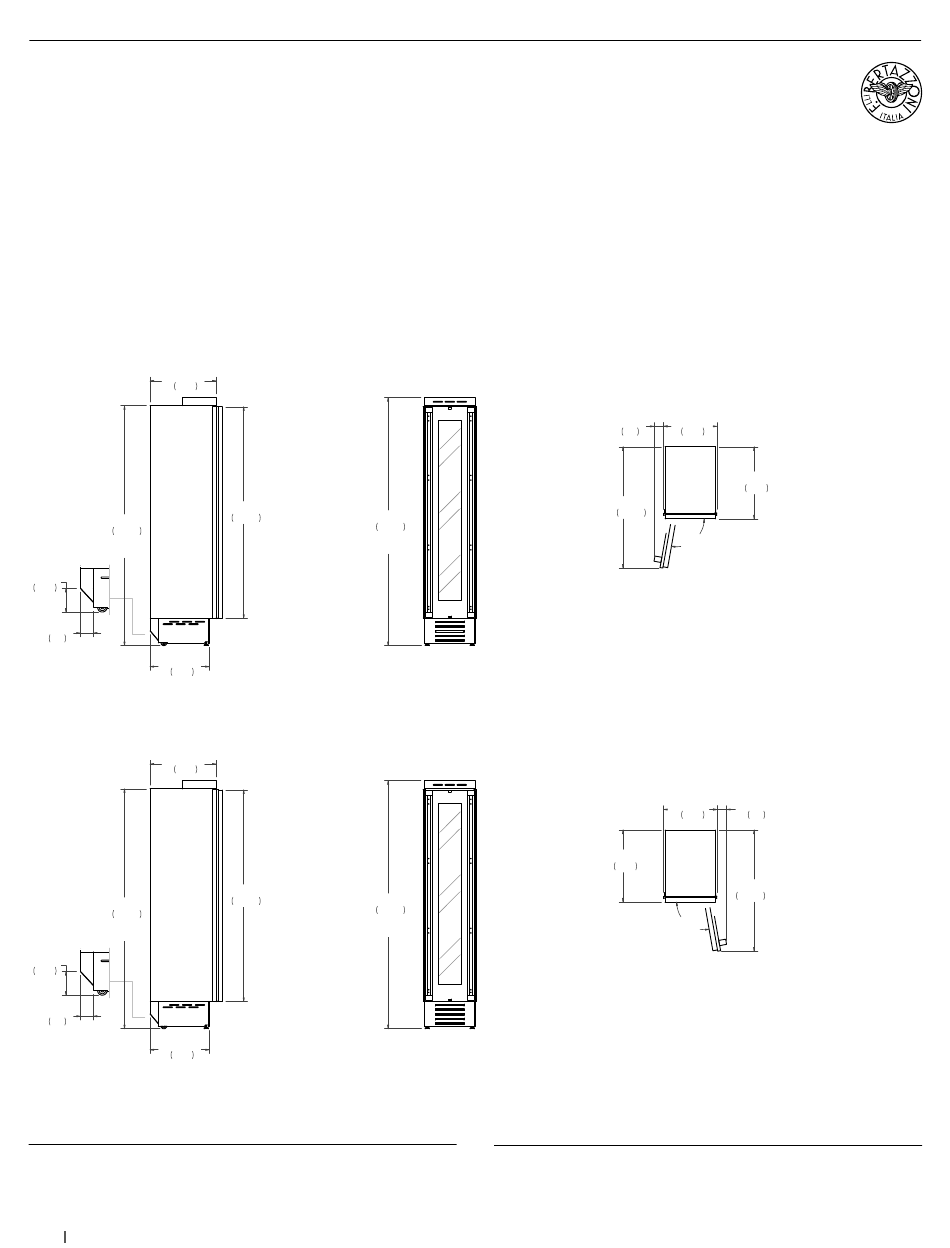

Dimensions
WC455BLP2T (left hinge)
WC455BRP2T (right hinge)
SIDE VIEW
22 1/4"
565
80 3/4"
2050
+
1"(25)
5"
127
2 3/4"
70
19 7/8"
505
SIDE VIEW
22 1/4"
565
80 3/4"
2050
+
1"(25)
5"
127
2 3/4"
70
19 7/8"
505
* Maximum Overall Handle Dimension
** Width of 19mm (3/4") Door Panel
For detailed handle dimensions see page 71
55
bertazzoni.com
FRONT VIEW
71 1/8"
83 1/2"
1808
2120
+
1"(25)
FRONT VIEW
71 1/8"
83 1/2"
1808
2120
+
1"(25)
TOP VIEW
3 1/4"
17 15/16"
*
82
40 3/4"
**
1036
TOP VIEW
17 15/16"
24 1/4"
615
Dimensions in parentheses are millimeters unless otherwise
specified.
For custom panel dimensions and window cutout see page 69.
456
24 1/4"
615
100°
3 1/4"
*
456
82
40 3/4"
1036 **
100°
