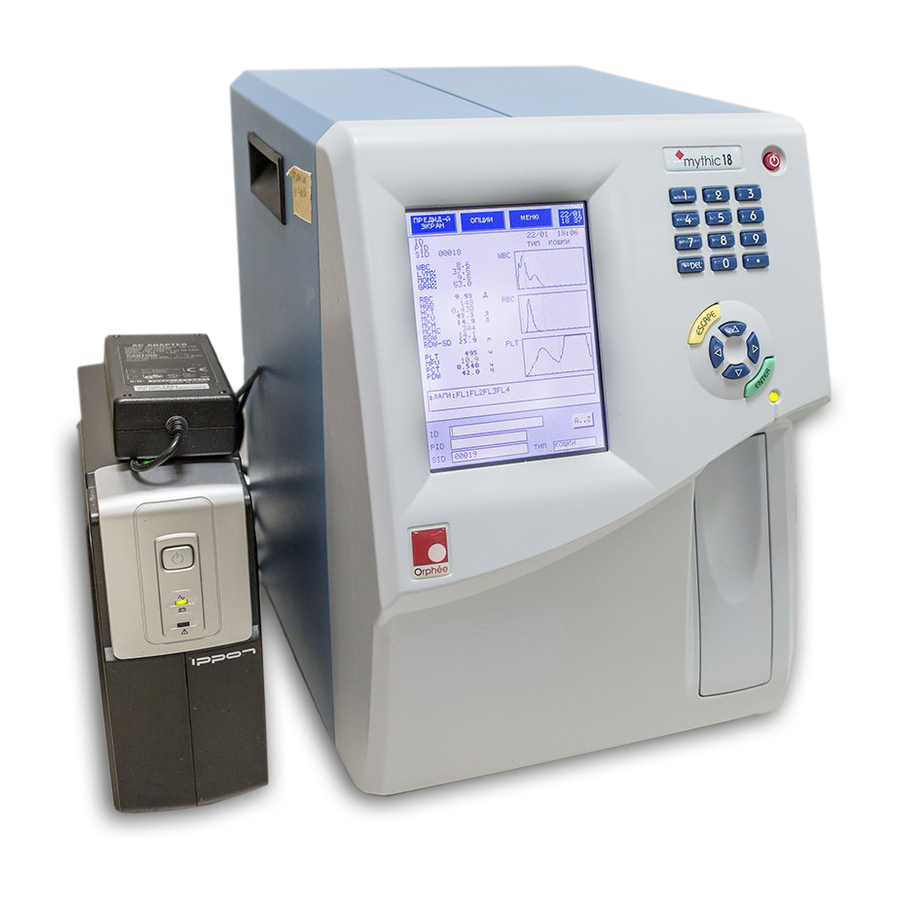

Orphee MYTHIC 18 Technical Notes

Installing sheaths on tubing 19 and 20

Hide thumbs Also See for MYTHIC 18:

Table of Contents

Download this manual

Purpose: To ensure a good fitting for tubing 19 and 20 on the counting heads.

Concern: all mythic 18 SN :103804-000225 and lower

Material: silicon Sheaths

Labour time: 15 min

1- Drain the system [SERVICE] [HYDRAULICS] [DRAIN ALL], remove tubing 19 and 20,

and disconnect the counting heads from the chambers.

2- With a tissue, wipe up the metallic fitting of the counting heads.

3- Prepare tubing 19 and 20 as follow:

4- Connect tubing 19 on the metallic fitting of RBC counting head (side of the silicon sheath).

5- Connect tubing 20 on the metallic fitting of WBC counting head (side of the silicon sheath),

the other side on the RBC Chamber. (Fig2)

MYTHIC 18

TECHNICAL NOTE

Installing Sheaths on Tubing 19 and 20

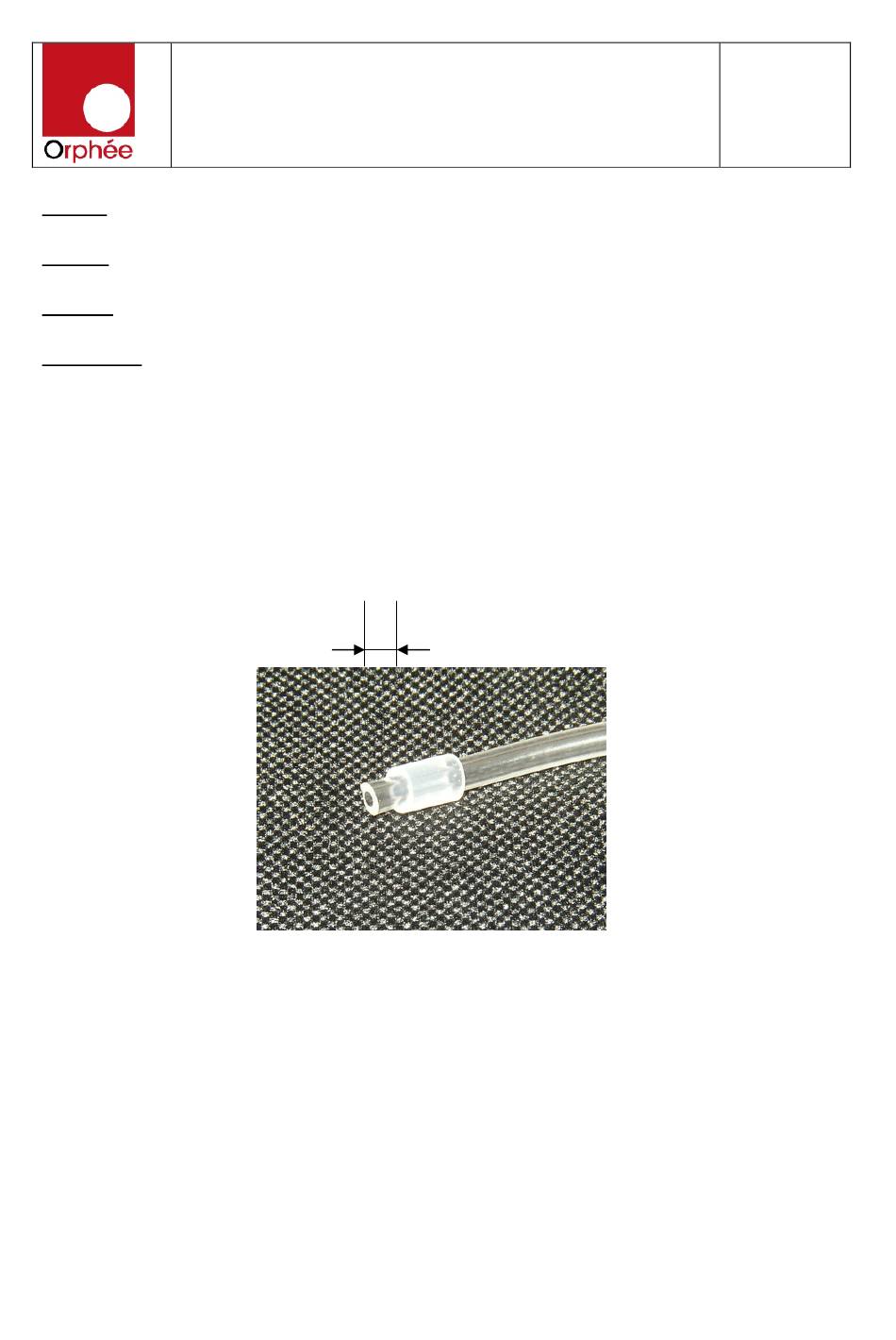

- Place the silicon sheath on one end of tubing 19 and 20.

- Be sure that you have 3-4mm clearance of tubing 19 and 20. (Fig 1)

3-4 mm

20/10/2005

.../...

Table of Contents

Do you have a question about the MYTHIC 18 and is the answer not in the manual?

Page 1 20/10/2005 Installing Sheaths on Tubing 19 and 20 Purpose: To ensure a good fitting for tubing 19 and 20 on the counting heads. Concern: all mythic 18 SN :103804-000225 and lower Material: silicon Sheaths Labour time: 15 min 1- Drain the system [SERVICE] [HYDRAULICS] [DRAIN ALL], remove tubing 19 and 20, and disconnect the counting heads from the chambers.
Page 2 1 mm Fig 2: tubing 19 installed on the RBC counting head 6- Connect tubing 17 on WBC counting head, tubing 2 (if removed) on WBC chamber. Tubing 19 Tubing 20 Fig3: Counting heads with 19 and 20 mounted 7- Reassemble WBC and RBC counting head on the WBC and RBC chambers; Connect tubing 17 and 19 to the Counting Manifold.
