Related Manuals for Orphee MYTHIC 22

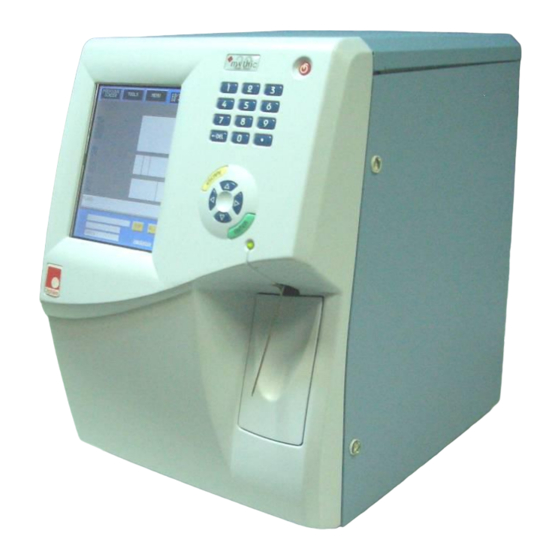

Summary of Contents for Orphee MYTHIC 22

  • Page 1 22 User’s Manual MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 1/105...
  • Page 2 ORPHEE SA 19, chemin du champ des filles CH-1228 Geneva / Plan-les-Ouates SWITZERLAND Tel : +41 (0) 22 706 1840 Fax : +41 (0) 22 794 4391 http://www.orphee-medical.com LOCAL AGENT Page 2/105 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 3: Read This Before Using The Equipment

     Do not use the MYTHIC 22 if it is not working properly, or if it has suffered any damage ( damage to the supply cord or its plug; damaged caused by dropping the power supply adapter).
  • Page 4 This equipment needs special precautions regarding general requirements for safety. Guidance and manufacturer’s declaration – electromagnetic emissions. The MYTHIC 22 is intended for use in the electromagnetic environment specified below. The customer or the user of the MYTHIC 22 should assure that it is used in such an environment.
  • Page 5 RF transmitters, an electromagnetic site survey should considered. If the measured field strength in the location in which the MYTHIC 22 is used exceeds the applicable RF compliance level above, the MYTHIC 22 should be observed to verify normal operation.

  • Page 6: Table Of Contents

    ................................38 HYSICAL PECIFICATIONS 4.3 R ................................40 EAGENTS PECIFICATIONS 4.3.1 Diluent for Mythic 22 ..................................40 4.3.2“OnlyOne” ......................................41 4.3.3 Cleaner for Mythic 22 ..................................42 4.3.4 Mythic 18-22 FLUSH – CLEANER ..............................43 ................................44 ANALYTICAL IMITATIONS Page 6/105 Copyright©...
  • Page 7 8.6.5 Optical bench ....................................82 8.7 S ......................................82 OFTWARE 8.7.1 Windows ......................................82 8.7.2 Menu tree ......................................83 9. SERVICE ......................... 84 9.1 M ..................................... 84 AINTENANCE 9.1.1 Maintenance table .................................... 84 MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 7/105...

  • Page 8: Installation

    - The optimum performances can only be achieved if the calibration, controls check, cleaning and maintenance procedures are carefully followed If the MYTHIC 22 has been stored at a temperature less than 10°C it must be left at room temperature during 24 hours.
  • Page 9 050-1001-01 150 24 European Power line cord 150-2001-CEE C13 1000 5/10-20L Adaptator 300-1009-05 1020 M22C User manual MYTHIC 22 Installation Report MYTHIC 22 Quality Control Certificate Screwdriver Slot 1/4" 700-7101-02 MAINTENANCE KIT Box 18/22 Designation Part Number Tygon tubing 1.52x3.2mm(1000mm) 300-0502- 016 032 Tygon tubing 2.06x4mm(500mm)

  • Page 10: Visual Checking

    1.2.1 Installation place To ensure that the MYTHIC 22 fulfills its function, place the instrument on a table that supports the weight of the instrument, printer and reagents (around 40 Kg). Leave a space of 10 cm in the rear of the instrument to ensure a well-ventilated place.

  • Page 11: Electrical Connections

    Choose a well-ventilated place for the block and be sure to connect this power supply in a socket-outlet with a correct earth connection. The power supply block must be placed at the rear of the MYTHIC 22 and, if possible in an upper position to avoid the contact with any liquid.

  • Page 12: Connection, Change And Priming Reagents

    Example of neutralization procedure usually used in a laboratory for waste material: For 20 liters of waste, produced by the MYTHIC 22, add 50 ml of a solution of sodium hydroxide (NaOH) at 200g/l, mix the container, add 100ml of bleach at 36°C, mix the container, wait one hour before empty Only use this procedure if there is no specific local legislation for the treatment of the waste.

  • Page 13: Priming

    1.5.2 Priming When first starting the MYTHIC 22, it is necessary to perform a complete prime of the fluidic circuit. Before starting, be sure that all the reagent and waste tubes are properly connected. The reagents must be stored minimum 24 hours at room temperature before use.
  • Page 14 - Press on NOTA To execute an emergency stop push shortly on the switch on/off button - Press : The MYTHIC 22 performs a complete priming cycle. - The cycle LED turns red. No cycle can be performed before it turns green.

  • Page 15: Diluent Priming

    - After the replacement of a new container or to prime the cleaner, press - A new entry is automatically done in the logs (see section 5.9). MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 15/105...

  • Page 16: Waste Setting

    1.6 TRANSPORTATION AND STORAGE Storage temperature: -10°C to +50°C. If the MYTHIC 22 has been stored at a temperature less than 10°C it must be left at room temperature for 24 hours. Before transportation outside the laboratory, perform a complete cleaning with a disinfectant in compliance with the local legislation.

  • Page 17: General Overview

    ENERAL OVERVIEW 2.1 GENERALITIES The MYTHIC 22 is an automated hematology analyzer for in vitro diagnostic use in clinical laboratories by an authorized and trained people. - Only human blood or artificial blood (recommended ORPHEE controls or calibrators) should be run.

  • Page 18: Overview

    2. GENERAL OVERVIEW REF : M22/UM/EN/014 2.2 OVERVIEW MYTHIC 22 consist of 8 main parts: Display / Keyboard. Dilution hydraulic part. Mono electronic board. Reagent tray. Connection. External power supply block. Printer. Barcode reader (option). Page 18/105 Copyright© Orphée SA. All Rights Reserved.

  • Page 19: Main Part Description

    2.3 MAIN PART DESCRIPTION 2.3.1 Display / Keyboard Cursors Numeric keyboard ON/OFF and Emergency STOP Delete (DEL) Color Touch Screen LCD Exit (ESCAPE) display 380*240 Enter (ENTER) Cycle in process MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 19/105...

  • Page 20: Main Menu Description

    (section 5.10) Mythic parameters (section 3). Maintenance and service menu Log In and Log Out (section 3.1). Analysis Reagent Mythic events replacement performing logs (section 5.3). (section 5.5). (section 5.9). Page 20/105 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 21: Dilution Hydraulic Part

    Liquid valve manifold assembly and tubing. Optical Manifold: Liquid valve manifold assembly and tubing. Optical bench: Optical bench (patented) with his flow cell (patented). Optical bench Optical manifold Sampling module Syringe module Counting module MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 21/105...

  • Page 22: Mono Electronic Board

    2.3.5 Power Supply Block MYTHIC 22 is supplied with an external power supply block. - In the case of replacement of the main power wire supplied with the MYTHIC 22 the new one must comply with the local regulation. - The MYTHIC 22 has been certified with the power supply box provided with the instrument.

  • Page 23: Reagent Tray

    2. GENERAL OVERVIEW REF : M22/UM/EN/014 2.3.6 Reagent tray The reagent tray is dedicated to the OnlyOne lysing reagent and cleaning solution bottles. MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 23/105...

  • Page 24: Instrument Set Up

    - Enter your identification name with the alphabetic keyboard. - Place the cursor in the password window. - Enter your password for identification. - For the first login, MYTHIC 22 proposes 3 access levels : User : No password, Biologist : Password by default 1- 2- 3 , Service people.

  • Page 25: System Status

    Login access level, Software version active, Serial number of CPU electronic board. - To change the screen luminosity press L, N or H. - To return to the MAIN MENU press MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 25/105...

  • Page 26: Set Up

    PC in the lab in order to directly print the results on the printer connected to this PC. MythicPrinting Tool is small software easy to install and which will not affect the functionality of the PC. It is downloadable free of charge directly from ORPHEE web site at orphee-medical.com Page 26/105 Copyright©...

  • Page 27: Advanced Set-Up

    SVM (Validation Station for MYTHIC) or Mythic printing tool. - EXTENDED is necessary to set in case of SVM connection. -NEW PARAMS option adds the RDWS parameters to be sent with the other parameters. MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 27/105...

  • Page 28: Analysis Options

    (about 20 pages are printed). only the blood type in the combo box is printed. Page 28/105 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 29: Limits

    3.4.4.1 Limits: - This display enables to enter normal and panic limits for every 24 parameters given by the MYTHIC 22 (see section 8). - To validate the new values, press VALID key in the next page (see below). - Once modifications are done, press...

  • Page 30: Thresholds

    Threshold modifications can affect the quality of the results or can affect the alarm detection area. We recommend modifying these values only after an Orphée’s training. Page 30/105 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 31: Flags Level

    To rename a blood type press then select it then press to accede at the alphabetic keyboard then press validate or to exit without any modification. MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 31/105...

  • Page 32: Calibration Factor

    3.4.7 Storage options: MYTHIC 22 can save more than the last 1000 patients with results, alarms, distribution curves in the internal memory and until a maximum of 60 000 results in a memory stick (USB key) of 512 Mbit or more.
  • Page 33 Mythic management. The serial number of the Mythic 22 is coded as : xxxxxx-yyyyyy These two groups of 6 digits will be used to create private folders, only usable on one instrument. Root folder for Mythic 22 analyser.

  • Page 34: Version Release

    - Choose another version or call your Orphée’s representative. The menu , allows to initiate the reagent Lock mode with encrypting. This menu is only accessible with Orphee’s representative Technician password level. Page 34/105 Copyright© Orphée SA. All Rights Reserved.

  • Page 35: Specifications

    8 to 15 HCT (%) 70 to 80 PLT (10 2000 to 5 000 Repeatability: Calculated with 20 runs of a fresh whole blood sample performed on a commercial MYTHIC 22. PARAMETERS Coefficient Variation RANGE < 2,5% > to 6,0×10 <...
  • Page 36 0,151 PLT (10 0,990 MPV (fL) 0,890 n.Σxy – Σx. Σy Calculated method: r =  (n. Σx²-(Σx²))(n. Σy²- (Σy²)) PENTRA 120 ® is a registered trademark of HORIBA ABX. Page 36/105 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...
  • Page 37 REF : M22/UM/EN/014 Precision (Reproductibility)* The Mythic 22 was initially calibrated with Myt-CAL calibrator (lot PLUS065, expiry date 14-05-2015). Three levels of Myt-5D control material (lot MYT 506, expiry date 05-08-2015) were run in duplicate twice daily for 20 days. The results were used to quantify within run precision, SD of the run means, SD of the daily means and the total imprecision with the NCCLS EP-05 A2 guidelines.

  • Page 38: Physical Specifications

    Relative Humidity: 80% maximum at 32°C. Storage temperature: -10 to 50°C. If the MYTHIC 22 has been stored at a temperature lower than 10°C, it must stay at room temperature for 24 hours before switching it on. If the room temperature change by more than 10°C during the working day, the MYTHIC 22 must be re calibrate.
  • Page 39 POWER SUPPLY BLOCK: Dimensions: Height: 55 mm Width: 127 mm Depth: 230 mm Weight: 1,32Kg Power supply Input: 100 to 240VAC (2A/230VAC at maximum load – 4A/115VAC at maximum load) 50-60Hz MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 39/105...

  • Page 40: Reagents Specifications

    REF : M22/UM/EN/014 4.3 REAGENTS SPECIFICATIONS All the reagents must be transported and stored at temperature stated on their labels. 4.3.1 Diluent for Mythic 22 ORPHEE code number: HM22-003-10 Open shelf life: 60 days. Application: The diluent is used to carry out the necessary dilutions for the measurement performed by the MYTHIC 22.(see section 8)

  • Page 41: 2"Onlyone

    OnlyOne Lytic reagent is used as unique leukocyte and hemoglobin reagent to lyse red blood cells, enable cells subpopulations differentiation and counting and quantitatively determine hemoglobin content of blood samples on MYTHIC 22, (see section 8). Active components: alkaline salts,...

  • Page 42: Cleaner For Mythic 22

    3. INSTRUMENT SET UP REF : M22/UM/EN/014 4.3.3 Cleaner for Mythic 22 ORPHEE code number: HM22-001-1 (please do not use HM18-007-1 which is dedicated for Mythic 18) Opening shelf life: 60 days. Application: The cleaning solution is used to carry out the cleaning of the measurement system and hydraulic circuit (see section 8).

  • Page 43: Mythic 18-22 Flush - Cleaner

    3. INSTRUMENT SET UP REF : M22/UM/EN/014 4.3.4 Mythic 18-22 FLUSH – CLEANER ORPHEE code number: HM18-011-025 Application: Mythic 18-22 FLUSH - CLEANER is hypochlorite-based reagent. Its function is periodic and routine cleaning of the measuring system of haematology analysers (see section 9.1.2).

  • Page 44: Analytical Limitations

    4.4.2 Interferences Occurrence Parameter Specimen action Possible Indication of Error on MYTHIC 22 Cause : high IgM level may lower RBC and increase MCV. Seek for red cell clumping Cold Agglutinin Indication : ↑MCV, ↓HCT, N1 &/or N2 &/or L1 &/or...
  • Page 45 3. INSTRUMENT SET UP REF : M22/UM/EN/014 Occurrence Parameter Specimen action Possible Indication of Error on MYTHIC 22 Indication: NRBC may be detected on the WBC Nucleated RBC Seek for NRBC on smear. scattergram with N1 &/or N2 &/or L1 &/or HL (# &...
  • Page 46 3. INSTRUMENT SET UP REF : M22/UM/EN/014 Occurrence Parameter Specimen action Possible Indication of Error on MYTHIC 22 Cause: Toxic or abnormal granules, as much as degranulated areas may alter optical properties of Seek for granulations Granulations eosinophils and cause an erroneous EOS counting.
  • Page 47 3. INSTRUMENT SET UP REF : M22/UM/EN/014 Occurrence Parameter Specimen action Possible Indication of Error on MYTHIC 22 Centrifuge the sample remove WBC and re-assay Cause: high level of WBC causes excessive light Leukocytosis the re-diluted RBC part. Or scatter that interferes with Hgb measurement.
  • Page 48 3. INSTRUMENT SET UP REF : M22/UM/EN/014 Occurrence Parameter Specimen action Possible Indication of Error on MYTHIC 22 The MCH is determined according to Hgb value and See Hgb value and RBC count. The limitations listed for Hgb and RBC RBC count interferences may cause indirect interferences.

  • Page 49: Sample Analysis

    5. S AMPLE ANALYSIS 5.1 VERIFICATIONS BEFORE STARTING Before starting MYTHIC 22, we recommend to check the reagent levels in each bottle and the level of the waste container. Please also check the paper quantity in the printer. 5.2 START UP - Press ON/OFF button on the printer to start.

  • Page 50: Reagent Replacement

    - If one or more reagent needs to be replaced, proceed as indicated in section 1.5.2 - AUTONOMY (run) indicates the number of samples (runs) you can perform in CBC or DIF mode (calculated with the smaller quantity of reagents). Page 50/105 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 51: Start Up

     If the level is higher, MYTHIC 22 displays a window “START UP FAILED”, press OK and perform a new start up. If the user chooses to run samples, every result will be printed with “Start Up not done” message.

  • Page 52: Analysis

    The working temperature of the fluidic part must be reached before starting the analysis. The average time to reach it is around 15’ at a room temperature > 23 °C (see 5.6.3). NOTA: The MYTHIC 22 is delivered with a standard parameter setting described in section 3. 5.6.2 Sample Identification...
  • Page 53 - To change the blood type, press the combo box select the type. - To valid the entry and return to the previous screen, press - To return to the previous screen without validation, press MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 53/105...

  • Page 54: Sample Run

    Start cycle trigger - As soon as the cycle is launched, the SID is incremented automatically and, thanks to its data processing multitasks, the MYTHIC 22 is available for the identification of the following sample (See section 5.6.2). Page 54/105 Copyright©...

  • Page 55: Results

    It is mandatory to read the section to understand the flags meaning. Example of a result of analysis in CBC mode. MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 55/105...
  • Page 56 -In DIFF mode Press on the matrix to access to a zoomed view. - Press on flags window to access detailed flags window. - In regard of the different flags found by the MYTHIC 22 the upper part proposes list of the cells to check on the smear.

  • Page 57: Printing

    5. SAMPLE ANALYSIS REF : M22/UM/EN/014 5.8 PRINTING Once the analysis is finished, the MYTHIC 22 prints a result report. To modify the printing presentation or to disconnect the printer, see section 3.4.1. To load a new printer driver, see section 3.3.

  • Page 58: Model Report - Thermal Printer

    5. SAMPLE ANALYSIS REF : M22/UM/EN/014 5.8.2 Model report – Thermal printer SEIKO DPU 414 model DIF mode CBC mode Page 58/105 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 59: Logs

    5.9 LOGS From the main menu, press to reach the logs display. - MYTHIC 22 manage a simplified log allowing saving and displaying all the events done for the following actions: BIO: Login with the Biologist code. TEC: Login with the service Technician code.

  • Page 60: Results

    - This prompt appears to confirm the storage in the USB key. If you press YES the selected results will be deleted from internal memory stored in the USB key. - This prompt allows following the storage. Page 60/105 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 61: View

    . Selected results: Select the first and the last results: - Then press on This message appears when you exit the result screens and it could stay up to 6 min to enable the update of all the files. MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 61/105...

  • Page 62: Stand By And Shut Down

    5. SAMPLE ANALYSIS REF : M22/UM/EN/014 5.11 STAND BY AND SHUT DOWN NOTA: It is recommended to switch off the MYTHIC 22 if it will be not used for next several hours. - From the main menu, press . MYTHIC 22 automatically performs a shut down cycle.

  • Page 63: Quality Control

    If result still exceeding the tolerances indicated on the blood control result sheet, it is recommended to perform a calibration (see section 7). 6.2 QC MYTHIC 22 stores in memory up to 100 results per lot, for 6 different lots. Results of each lot can be viewed in tables and Levey-Jennings graph. - Press to have access to the quality control menu.

  • Page 64: Change

    NOTA: All the results in memory linked with the control lot number will be cleared as soon as the validation is confirmed. - Select the right lot then press - Press to confirm. Page 64/105 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 65: Run Control Blood

    This screen allows carrying out a test of repeatability on all the parameters measured by the MYTHIC 22. - Dry the needle with a clean paper towel. - Present the control blood under the sampling needle. - Press the start cycle trigger.

  • Page 66: Levey-Jennings Graph

    - Press YES if you are sure to load the selected file. All the information of the selected file will be overwrite by the one from the USB key. 6.3 REPEATABILITY - To run repeatability, press first Page 66/105 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...
  • Page 67 (see section 4.1) repeatability table. This screen allows carrying out a test of repeatability on all the parameters measured by the MYTHIC 22. - Dry the needle with a clean paper towel before each aspiration. - Present the sample under the sampling needle and press in the trigger located behind the needle.

  • Page 68: Calibration

    7. C ALIBRATION The calibration of the MYTHIC 22 should be carried out minimum once a year or if the QC carried out on a blood control used under the recommended conditions, is out of the limits to a significant degree (see section 6).

  • Page 69: Results

    7.1.1 Calibration blood analysis This screen allows carrying out analysis on calibration blood to perform the MYTHIC 22 calibration. -Present the calibration tube under the sampling needle and press the trigger behind the needle. The calibrator should be mixed manually during the all process and between each measurement.

  • Page 70: Calibration

    This screen inform you about deletion of the previous calibration (all patients or controls results are kept). Any modification (lot number, date or target values) involves the deletion of all the associated results always in memory. Page 70/105 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...
  • Page 71 7. CALIBRATION REF : M22/UM/EN/014 Loading values from targets file (files are available on http://www.orphee-medical.com, distributors area)) and copy it on USB key previously formatted on the Mythic. Put it in folder “LOT”. - Plug the USB key, then - Select the right lot then press - Press if you are sure to load the right file.

  • Page 72: Technology

    REF : M22/UM/EN/014 8. T ECHNOLOGY The innovative technology of the MYTHIC 22 is covered by six pending patents. A new innovative concept of optical measurement system and a unique lysing reagent were developed to obtain a small and powerful analyzer.

  • Page 73: Five-Part Diff Measurement

    Axis Loss Light (ALL) measurement and one for the Forward Side SCatter (FSC) measurement. The result of those two axes of measurement is the high definition matrix that enables to identify five WBC populations. MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 73/105...

  • Page 74: Hemoglobin Measurement

    The reagents used in those instruments just stabilize the methemoglobin which is already formed (stabilization complex depends on the chosen ligand that is incorporated into the reagent). Page 74/105 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 75: Leucocyte Analysis

    Eosinophils in percentage Eosinophilis : EOS > EOS h (%&/or #) EOS# Eosinophils in value BAS% Basophils in percentage Basophilis : BAS > BAS h (%&/or #) BAS# Basophils in value MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 75/105...

  • Page 76: Erythrocyte Analysis

    RDWS determination is an actual measurement of the width of the RBC distribution curve. This measurement is performed at a relative height of 20% above the baseline see picture below). Page 76/105 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 77: Analysis Of Platelets

    12 fl (marked in red on below picture). The PLCR is the percentage of cells higher than 12fl regarding the whole platelets count. MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 77/105...

  • Page 78: Flags

    8.5 FLAGS MYTHIC 22 manages 25 different flags. These flags allow the user to be alerted if there is a problem which can affect the quality of the results. All of these flags appear on the right of the result.

  • Page 79: Leucocytes Flags

    - If one or more DIF parameters (LYC, MON, NEU, EOS or BAS) are following with a star (XXX *) the sample must be checked on smear. - Basophiles result must be checked on smear if it is following by a star (XXX *). MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 79/105...

  • Page 80: Erythrocyte And Hgb Flags

    SU_ND: STARTUP not done means that the Start Up has not been done or that the analysis is done with results of the Start Up outside the limits (see section 5.4). Page 80/105 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 81: Hydraulic Description

    8. TECHNOLOGY REF : M22/UM/EN/014 8.6 HYDRAULIC DESCRIPTION The hydraulic part of the MYTHIC 22 is very simple and made of these modules: - Sampling module, - Counting bath module, - Syringes module, - Optical manifold, - Optical bench. The modules are connected together by semi rigid tubing.

  • Page 82: Optical Bench

    WARNING: You have to INFORMATION window. occurred, it is mandatory confirm or not the action to do the action described described in the window. in the window or in the table section 9.6. Page 82/105 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 83: Menu Tree

    8. TECHNOLOGY REF : M22/UM/EN/014 8.7.2 Menu tree MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 83/105...

  • Page 84: Service

    9. S ERVICE The quality of the results and the reliability of the MYTHIC 22 are directly linked to the strict respect of the maintenance hereafter described. To perform the maintenance and the repair described in this section, it is mandatory to have received adequate training, use the Orphee spare parts accordingly, to wear rubber gloves and wash hands with a disinfectant after completion of work.

  • Page 85: Concentrate Cleaning With Hypochlorite

    (see 3.4.6). - Return to the main menu by pressing - Then press - Press - Press to start the cycle (drain the counting chamber). MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 85/105...

  • Page 86: Piston Greasing

    - MYTHIC 22 perform a maintenance cycle of the apertures followed with a standby mode during 10 min. - After 10 min. MYTHIC 22 rinses all of the elements. Perform a blank cycle before to run any analytic cycle.

  • Page 87: Hydraulic Cycles

    - The other pistons can be turned with fingers. - Press CONTINUE. - Close the side door. 9.2 HYDRAULIC CYCLES - To have access to the hydraulic cycle, press from the MAIN MENU, then press MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 87/105...

  • Page 88: Mechanics

    89 switch on (or off) the HGB led to check it. switch on (or off) the optical led to check it. see section 9.4.2. see section 9.1.3. Page 88/105 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 89: Repairing

    - To test all the valves press 9.4 REPAIRING 9.4.1 Emergency stop In case of mechanical or hydraulic problem, immediately press , the MYTHIC 22 will make an emergency stop. - After having identified the problem, it is necessary to perform a control cycle.

  • Page 90: Needle Or O-Ring Replacement

    - Open the door located on the right side to have access to the hydraulic part. - The needle is in front of the counting chambers. - Remove the sampling module, while slightly lowering the clip to the bottom. Page 90/105 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...
  • Page 91 - Replace the o-ring. No greasing. REASSEMBLY PROCEDURE: To reassemble the unit, carry out the various operations in the opposite direction. Place the seal on the needle gently not to wound it. MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 91/105...

  • Page 92: Baths Dismantling

    - Press to perform a draining of the counting baths. - Open the door located on the right side of the instrument to have access to the hydraulic part. Page 92/105 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...
  • Page 93 - Next, remove the tubing fixed on the RBC counting head, located on the right side of the counting module. Please maintain with left hand the counting head during the puling of the tube. MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 93/105...
  • Page 94 - The counting bath module can now be handled to carry out the desired operations of replacement. REASSEMBLY PROCEDURE: To reassemble the unit, carry out the various operations in the opposite direction. Page 94/105 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 95: Baths O-Ring Replacement

    -Rotate the counting head of ¼ tour. - With the help of the provided tool in the maintenance kit, unscrew the screw and remove the connection. MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 95/105...

  • Page 96: Troubleshooting

    Check the level bubble flow in the WBC bath during the run cycle. Rejection Close the door. Perform a new Start Up cycle. Flag INS_H Perform a new Start Up cycle. Page 96/105 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 97: Other Problems

    9.1.3) and check the tubing connection of the fluidics, For all occurrences check also the level of the reagents. Printer No printing. Check the paper. Check the electrical connection. Bad printing. Check the black ribbon. MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 97/105...

  • Page 98: Disinfection Procedure

    PLT : 10 If the level is higher, MYTHIC displays a window “START UP FAILED” press OK and perform a new startup. If failed again, please contact your Orphée’s representative company. Page 98/105 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 99: Troubleshooting Messages

    REF : M22/UM/EN/014 9.6 TROUBLESHOOTING MESSAGES This section allows knowing what to do when a troubleshooting message appears on the screen. If the problem persists; go on contact your Orphee representative. MESSAGE ACTION Re-start the Mythic. Update to last SW version if not done.
  • Page 100 Hardware failure on memory. BACKUP: SECTOR FAILED. Rebuild cycles with good options. COM: BAD CYCLE MODULE Check the hardware connection FSC Board to opt. bench. HARDWARE: F.S.C BOARD ID FAILED. Page 100/105 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...
  • Page 101 PLEASE DELETE FILES. VERSION RELEASE FAILED. THE CHOSEN RELEASE IS NOT COMPATIBLE WITH THE Select the correct version. MYTHIC 22 SYSTEM. PRINTER DRIVER UPDATE FAILED. THE CHOSEN Select the right driver compatible with the Mythic. DRIVER IS NOT COMPATIBLE WITH THE MYTHIC MYTHIC 22 Copyright©...
  • Page 102 THE USB THUMB DRIVE FILE SYSTEM IS NOT The USB thumb drive as an incompatible tree structure for the COMPATIBLE WITH THE MYTHIC 22. EITHER analyzer or no file present in the folder. See section 3.4.7. REMOVE IT OR FORMAT IT.

  • Page 103: Logs Errors

    - To print or save (in an USB key) the error of one or more days select then enter the error reference number. MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 103/105...

  • Page 104: Hydraulic Diagram

    2 x 5mm 180mm 50mm 2 x 5mm 60mm 2 x 5mm 365mm 140mm 15mm 15mm 835+165mm 8mm +/-0.4 30mm Diluent 1500mm 300mm Waste 1500mm 50mm Lyse 230mm Cleaner 250mm Page 104/105 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...
  • Page 105 9. SERVICE REF : M22/UM/EN/014 MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 105/105...
