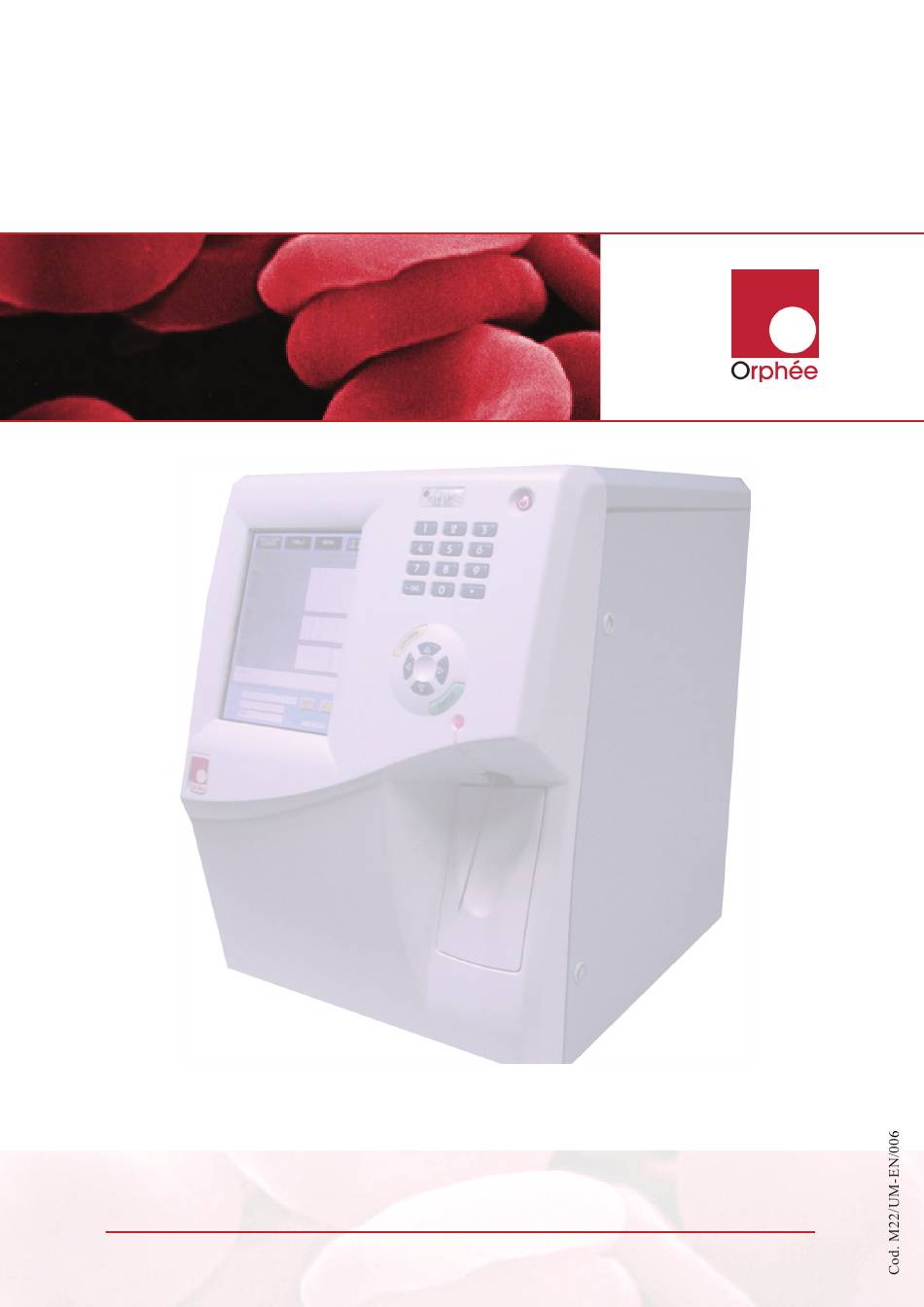

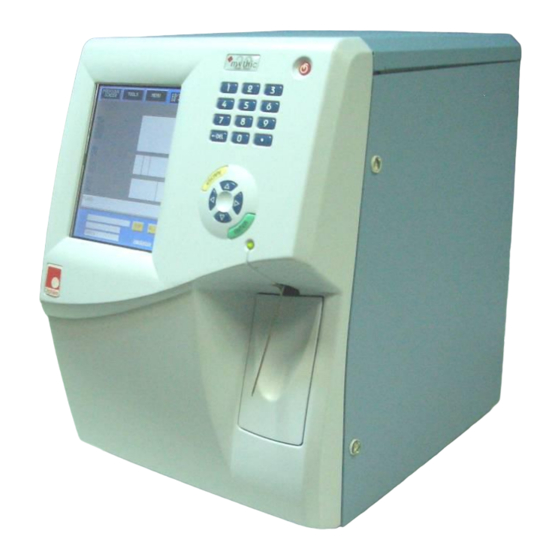

  • Page 1 22 User’s Manual Orphée SA 19, chemin du Champ des Filles - 1228 CH-Plan Les Ouates / SWITZERLAND Tel : +41.(0)22.706.18.40 Fax : +41.(0)22.794.43.91 - Web Site : www.orphee-medical.com...
  • Page 2 ORPHEE SA 19, chemin du champ des filles CH-1228 Geneva / Plan-les-Ouates SWITZERLAND Tel : +41 (0) 22 706 1840 Fax : +41 (0) 22 794 4391 http://www.orphee-medical.com LOCAL AGENT Page 2/99 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 3: Read This Before Using The Equipment

     Do not use the MYTHIC 22 if it is not working properly, or if it has suffered any damage ( damage to the supply cord or its plug; damaged caused by dropping the power supply adapter).
  • Page 4 This equipment needs special precautions regarding general requirements for safety. Guidance and manufacturer’s declaration – Electromagnetic emmissions The MYTHIC 22 is intended for use in the electromagnetic environment specified below. The customer or the user of the MYTHIC 22 should assure that it is used in such an environment.
  • Page 5 RF transmitters, an electromagnetic site survey should considered. If the measured field strength in the location in which the MYTHIC 22 is used exceeds the applicable RF compliance level above, the MYTHIC 22 should be observed to verify normal operation.
  • Page 6 For more detailed information about recycling of this product, please contact your local city office or your distributor of this product. Page 6/99 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...
  • Page 7 Nous déclarons sous notre propre responsabilité que Dichiariamo sotto nostra responsabilità che We declare under our sole responsibility that das Medizinprodukt für die In-vitro-Diagnostik Mythic 22 le dispositif médical de diagnostic in vitro il dispositivo medico-diagnostico in vitro Ref. M22OT the in vitro diagnostic medical device mit folgender Klassifizierung nach der Richtlinie über In-vitro-Diagnostika 98/79/EG...
  • Page 8 Ort, Datum / Lieu, date / Name und Funktion / Nom et fonction /Nome e Luogo, data / Place, date funzione / Name and function Genève le 06 Juin 2008 Philippe Daire RA & QA Page 8/99 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 9: Table Of Contents

    ................................39 EAGENTS CIFICATIONS 4.3.1 Diluent........................................39 4.3.2 Lytic reagent “OnlyOne” ..................................40 4.3.3 Cleaning solution ....................................41 ................................... 42 ANALYTICAL IMITATIONS 4.4.1 Recommendations ....................................42 4.4.2 Interferences ......................................42 MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 9/99...
  • Page 10 ......................................78 OFTWARE 8.8.1 Windows ........................................78 8.8.2 Menu tree ....................................... 78 9. SERVICE ....................... 80 9.1 M ......................................80 AINTENANCE 9.1.1 Maintenance table ....................................80 9.1.2 Concentrate cleaning .................................... 81 Page 10/99 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...
  • Page 11 ....................................92 ROUBLESHOOTING 9.5.1 Analytical problems ....................................92 9.5.2 Other problems ..................................... 93 9.6 T ................................93 ROUBLESHOOTING MESSAGE 9.7 L ......................................97 OGS ERRORS 9.8 H ..................................... 98 YDRAULIC DIAGRAM MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 11/99...

  • Page 12: Installation

    - The optimum performances can be only achieved if the cleaning and maintenance procedures are carefully followed. If the MYTHIC 22 has been stored at a temperature less than 10°C it must be left at room temperature during 24 hours.

  • Page 13: Visual Checking

    1.2.1 Installation place To ensure that the MYTHIC 22 fulfills its function, place the instrument on a table which supports the weight of the instrument, printer and reagents (around 40 Kg). Leave a space of 10 cm in the rear of the instrument to ensure a well-ventilated place.

  • Page 14: Electrical Connections

    Choose a well-ventilated place for the block and be sure to connect this power supply in a socket-outlet with a correct earth connection. The power supply block must be placed at the rear of the MYTHIC 22 and, if possible in an upper position to avoid the contact with any liquid.

  • Page 15: Connection, Change And Priming Reagents

    1. INSTALLATION REF : M22/UM/EN/006 1.5 CONNECTION, CHANGE AND PRIMING REAGENTS MYTHIC 22 works with the reagents described in section 4.3. Some commercial reagents can also be used. Please contact your Orphée’s representative. 1.5.1 Connection Lysis reagent and cleaning solution: Before handling the reagents, read carefully their specifications described in section 4.3.

  • Page 16: Priming

    REF : M22/UM/EN/006 1.5.2 Priming When first starting the MYTHIC 22, it is necessary to perform a complete prime of the fluidic circuit. Before starting, be sure that all the reagent and waste tubes are properly connected. The reagents must be stored 24 hours minimum at room temperature before use.
  • Page 17 - Press on NOTA To do an emergency stop push shortly on the switch on/off button - Press : The MYTHIC 22 performs a complete priming cycle. - The cycle LED turns red. No cycle can be performed before it turns green.

  • Page 18: Transportation And Storage

    1.6 TRANSPORTATION AND STORAGE Storage temperature: -10°C to +50°C. If the MYTHIC 22 has been stored at a temperature less than 10°C it must be left at room temperature during 24 hours. Before transportation outside the laboratory, perform a complete cleaning with a disinfectant in compliance with the local legislation.

  • Page 19: General Overview

    ENERAL OVERVIEW 2.1 GENERALITIES MYTHIC 22 is a fully automated analyzer performing hematological analysis on whole blood collected on EDTA K2 or K3 tubes. Sample volume: 15,7 µl (inside the needle, the total volume could be upper in function of the blood remaining outside of the needle).

  • Page 20: Overview

    2. GENERAL OVERVIEW REF : M22/UM/EN/006 2.2 OVERVIEW MYTHIC 22 consists of 8 main parts: Display / Keyboard. Dilution hydraulic part. Mono electronic board. Reagent tray. Connection. External power supply block. Printer. Barcode reader (option). 2.3 MAIN PART DESCRIPTION Stand By and 2.3.1 Display / Keyboard...
  • Page 21 (Section 5.10). Mythic setting parameters (Section 3). Maintenance and Service Menu Log In and Log Out (Section 3.1). Reagents Analysis Mythic Events replacement performing Logs (Section 5.3). (Section 5.5). (Section 5.9). MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 21/99...

  • Page 22: Dilution Hydraulic Part

    Optical Manifold : Liquid valve manifold assembly and tubing. Optical bench : Optical bench (patented) with his flow cell (patented). Optical bench Optical manifold Sampling module Syringe module Counting module Page 22/99 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 23: Mono Electronic Board

    Switch on/off MYTHIC 22 is supplied with an external power supply block. - In the case of replacement of the main power wire supplied with the MYTHIC 22 the new one must comply with the local regulation. - The MYTHIC 22 has been certified with the power supply box provided with the machine.

  • Page 24: Reagent Tray

    2. GENERAL OVERVIEW REF : M22/UM/EN/006 2.3.5 Reagent tray The reagent tray is dedicated to the OnlyOne lysing reagent and cleaning solution bottles. Page 24/99 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 25: Instrument Set Up

    - Enter your identification name with the alphabetic keyboard. - Place the cursor in the Password window. - Enter your password for identification. - For the first login, MYTHIC 22 proposes 3 access levels : User : No password Biologist : Password by default 1- 2- 3 Service people - Biologist Password can be modified in section 3.3.6.

  • Page 26: System Status

    3. INSTRUMENT SET UP REF : M22/UM/EN/006 - If this window appears, it means that several results in memory have not been sent before the MYTHIC 22 was switched off. - Press YES to send them immediately, or press LATER to wait at another time or NO if you do not want to send them.

  • Page 27: Set Up

    - Then press - Press then, the driver is loaded in the MYTHIC 22 - This prompt appears if the release is failed. Check the USB connection or change the USB key or call your Orphée’s representative. This prompt appears if the release is done successfully.

  • Page 28: Advanced Set-Up

    - To exit the menu, either press to keep the last setting, or to save the last modifications. 3.4.2 Communication: - Reserved for technical Service people. - To set up the connection between MYTHIC and Host. Page 28/99 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 29: Analysis Options

    (about 20 pages are printed) only the blood type in the combo box is printed. MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 29/99...
  • Page 30 3.4.4.1 Limits: - This display enables to enter normal and panic limits for every 22 parameters given by the MYTHIC 22 (see section 8). - To validate the new values, press VALID key in the next page (see below). - Once modifications are done, press...
  • Page 31 Threshold modifications can affect the quality of the results or can affect the alarm detection area. We recommend to modify these values only after an Orphée’s training. - Press to return to the manufacturer parameter setting. MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 31/99...
  • Page 32 - In this menu, for each blood type, users can define a correction factor which is multiplied by the calibration factor given by a normal calibration (see section 7). - Once modifications are done, press to validate or to exit without any modification. Page 32/99 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 33: Calibration Factor

    3.4.7 Storage options: MYTHIC 22 can save more than the last 1000 patients with results, alarms, distribution curves in the internal memory and until a maximum of 60 000 results in a memory stick (USB key) of 512 Mbit or more.

  • Page 34: Version Release

    - This prompt appears to confirm the version loading. - This prompt appears when the release of the software is failed. - Choose another version or call your Orphée’s representative. Page 34/99 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 35: Specifications

    8 to 15 HCT (%) 70 to 80 PLT (10 2000 to 4 000 Repeatability: Calculated with 20 runs of a fresh whole blood sample performed on a commercial MYTHIC 22. PARAMETERS RANGE < 2,5% > to 6,0 10 < 5% >...
  • Page 36 0,963 MCHC (g/dL) 0,151 PLT (10 0,990 MPV (fL) 0,890 n.Σxy – Σx. Σy Calculated method: (n. Σx²-(Σx²))(n. Σy²- (Σy²)) PENTRA 120 ® is a registered trademark of HORIBA ABX. Page 36/99 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 37: Physical Specifications

    Ambient temperature: from 18 to 34°C Relative Humidity: 80% maximum at 32°C Storage temperature: -10 to 50°C If the MYTHIC 22 has been stored at a temperature less than 10°C, it must stay at room temperature during 24 hours before switching it on. INSTRUMENT: Dimensions: Height: 350 mm (approx.)
  • Page 38 50 to 60 Hz Electric consumption: 23W (approx.) Paper size: Depends on the format chosen in the set up. Printer: Impact (9 needles) Speed: Up to 300 cps (character per second) Page 38/99 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 39: Reagents Specifications

    4.3.1 Diluent ORPHEE code number: HM22-003-10 Opening shelf life: 60 days. Application: The diluent is used to carry out the necessary dilutions for the measurement performed by the MYTHIC 22.(see section 8) Active components: Solid content: 0,9%. Others components: Buffer.

  • Page 40: Lytic Reagent "Onlyone

    OnlyOne Lytic reagent is used as unique leukocyte and hemoglobin reagent to lyse red blood cells, enable cells subpopulations differentiation and counting and quantitatively determine hemoglobin content of blood samples on MYTHIC 22, (see section 8) Active components: - alkaline salts and buffering means...

  • Page 41: Cleaning Solution

    4. SPECIFICATIONS REF : M22/UM/EN/006 4.3.3 Cleaning solution ORPHEE code number: HM22-001-1 Opening shelf life: 60 days. Application: The cleaning solution is used to carry out the cleaning of the measurement system and hydraulic circuit (see section 8). Components: Enzyme...

  • Page 42: Analytical Limitations

    4.4.2 Interferences Occurrence Parameter Specimen action Possible Indication of Error on MYTHIC 22 Cause : high IgM level may lower RBC and increase Seek for red cell clumping Cold Agglutinin Indication MCV, HCT, N1 &/or N2 &/or L1 &/or...
  • Page 43 4. SPECIFICATIONS REF : M22/UM/EN/006 Occurrence Parameter Specimen action Possible Indication of Error on MYTHIC 22 Indication: Nucleated RBC NRBC may be detected on the WBC Seek for NRBC on smear. (# & %) Erythroblastosis scattergram with N1 &/or N2 &/or L1 &/or HL flags...
  • Page 44 4. SPECIFICATIONS REF : M22/UM/EN/006 Occurrence Parameter Specimen action Possible Indication of Error on MYTHIC 22 Cause: Toxic or abnormal granules, as much as degranulated areas may alter optical properties of Seek for Granulations Granulations eosinophils and cause an erroneous EOS counting modifications on smear (# &...
  • Page 45 4. SPECIFICATIONS REF : M22/UM/EN/006 Occurrence Parameter Specimen action Possible Indication of Error on MYTHIC 22 Centrifuge the sample Cause: high level of WBC causes excessive light remove WBC and re-assay Leukocytosis scatter that interferes with Hgb measurement. the re-diluted RBC part. Or Indication: very high WBC (>100,000/ L), MCHC...
  • Page 46 REF : M22/UM/EN/006 Occurrence Parameter Specimen action Possible Indication of Error on MYTHIC 22 The MCH is determined according to Hgb value and See Hgb value and RBC count RBC count. The limitations listed for Hgb and RBC may cause indirect interferences.

  • Page 47: Sample Analysis

    5. S AMPLE ANALYSIS 5.1 VERIFICATIONS BEFORE STARTING Before starting MYTHIC 22, we recommend to check the reagent levels in each bottle, and the level of the waste container. Please also check the paper quantity in the printer. 5.2 START UP - Press ON/OFF button on the printer to start.

  • Page 48: Reagent Replacement

    - If one or more reagent needs to be replaced, proceed as indicated in section 1.5.2 - AUTONOMY (run) indicates the number of samples (runs) you can perform in CBC or DIF mode (calculated with the smaller quantity of reagents). Page 48/99 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 49: Start Up Rinsing

     If the level is higher, MYTHIC 22 displays a window “START UP FAILED” press OK and perform a new start up. If the user chooses to run samples, every result will be printed with “Start Up not done” message.

  • Page 50: Sample Identification

    - To change the blood type, press the combo box select the type - To valid the entry and return to the previous screen, press - To return to the previous screen without validation, press Page 50/99 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 51: Sample Run

    Start cycle trigger - As soon as the cycle is launched, the SID is incremented automatically and, thanks to its data processing multitasks, the MYTHIC 22 is available for the identification of the following sample (See section 5.6.2). MYTHIC 22 Copyright©...

  • Page 52: Results

    It is mandatory to read the section to understand the flags meaning. - Example of a normal result analysis in CBC mode. Page 52/99 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...
  • Page 53 - Press on the matrix to access to a zoomed view. - Press on the flags zone to open the flags window. - In regard of the different flags found by the MYTHIC 22 the upper part propose list of the cells to check on the smear.

  • Page 54: Printing

    5. SAMPLE ANALYSIS REF : M22/UM/EN/006 5.8 PRINTING Once the analysis is finished, the MYTHIC 22 prints a result report. To modify the printing presentation or to disconnect the printer, see section 3.4.1. To load a new printer driver, see section 3.3.

  • Page 55: Model Report - Thermal Printer

    5. SAMPLE ANALYSIS REF : M22/UM/EN/006 Two results per page DIF mode CBC mode 5.8.2 Model report – Thermal printer SEIKO DPU 414 model DIF mode CBC mode MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 55/99...

  • Page 56: Logs

    5.9 LOGS From the main menu, press to reach the logs display - MYTHIC 22 manage a simplified log allowing saving and displaying all the events done for the following actions: BIO: Login with the Biologist code. TEC: Login with the service Technician code.

  • Page 57: Results

    - This prompt appears to confirm the storage in the USB key. If you press YES the selected results will be deleted from internal memory stored in the USB key. - This prompt allows following the storage. MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 57/99...

  • Page 58: View

    . Selected results: Select the first and the last results: - Then press on This message appears when you exit the result screens and it could stay up to 6 mn to enable the update of all the files. Page 58/99 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 59: Stand By And Shut Down

    5. SAMPLE ANALYSIS REF : M22/UM/EN/006 5.11 STAND BY AND SHUT DOWN NOTA: It is recommended to switch off the MYTHIC 22 if it is not use for several hours consecutives. - From the main menu, press . MYTHIC 22 automatically performs a shut down cycle.

  • Page 60: Quality Control

    If result still exceeding the tolerances indicated on the blood control result sheet, it is recommended to perform a calibration (see section 7). 6.2 QC MYTHIC 22 stores in memory up to 100 results per lot, for 6 different lots. Results of each lot can be viewed in tables and Levey-Jennings graph. - Press to have access to the quality control menu.

  • Page 61: Change

    - Press to load the target and tolerances values, the lot number and expiry date from a USB key. - Select the right lot then press - Press to confirm. MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 61/99...

  • Page 62: Run Control Blood

    - To print, send, delete or save (in an USB key) a result, press - Press to open the Levey-Jennings graph screen. Page 62/99 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 63: Levey-Jennings Graph

    - Press YES if you are sure to load the selected file. All the information of the selected file will be overwrite by the one from the USB key. 6.3 REPEATABILITY - To run repeatability, press first MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 63/99...
  • Page 64 This screen allows carrying out a test of repeatability on all the parameters measured by the MYTHIC 22. - Present the sample under the sampling needle and press in the trigger located behind the needle.

  • Page 65: Calibration

    7. C ALIBRATION The calibration of the MYTHIC 22 should be carried out only if the QC carried out on a blood control used under the recommended conditions, is out of the limits to a significant degree (see section 6).

  • Page 66: Results

    Model of print out calibration report: 7.1 RESULTS 7.1.1 Calibration blood analysis This screen allows carrying out analysis on calibration blood to perform the MYTHIC 22 calibration. - Present the calibration tube under the sampling needle and press the trigger behind the needle.

  • Page 67: Calibration

    USB key. Any modification (lot number, date or target values) involves the deletion of all the associated results always in memory. MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 67/99...
  • Page 68 - Plug the USB key then - Select the right lot then press Press to confirm the loading of the target and tolerances values and expiry date and lot number. Page 68/99 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 69: Technology

    REF : M22/UM/EN/006 8. T ECHNOLOGY The innovative technology of the MYTHIC 22 is covered by six pending patents. A new innovative concept of optical measurement system and an unique lysing reagent were developed to obtain a so small and powerful analyzer.

  • Page 70: Five Part Diff Measurement

    Axis Loss Light (ALL) measurement and one for the Forward Side SCatter (FSC) measurement. The result of those two axes of measurement is the high definition matrix that enables to identify five WBC populations. Page 70/99 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 71: Hemoglobin Measurement

    Eosinophils in percentage Eosinophilis : EOS > EOS h (%&/or #) EOS# Eosinophils in value BAS% Basophils in percentage Basophilis : BAS > BAS h (%&/or #) BAS# Basophils in value MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 71/99...

  • Page 72: Erythrocyte Analysis

    The Mean Corpuscular Hemoglobin (MCH) calculation is made from HGB and RBC by the formula below : MCH = HGB ● 10 The Mean Corpuscular Hemoglobin Concentration (MCHC) is made from HGB and HCT by the formula below : MCHC = HGB ● 100 Page 72/99 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 73: Analysis Of Platelets

    8.5 FLAGS MYTHIC 22 CT manages 25 different flags. These flags allow the user to be alerted if there is a problem which can affect the quality of the results. All of these flags appear on the right of the result.

  • Page 74: Instrument Flags

    9.1.2). INS-H: HGB channel saturation, run a START UP cycle. INS-T: A temperature (enclosure, reagents or ambient) is out of range (see section 9.5.2) INS-P: Pressure default (see section 9.5.2). Page 74/99 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 75: Leucocytes Flags

    - If one or more DIF parameters (LYC, MON, NEU, EOS or BAS) are following with a star (XXX *) the sample must be checked on smear. - Basophile result must be checked on smear if it is following by a star (XXX *). MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 75/99...

  • Page 76: Erythrocyte And Hgb Flags

    SU_ND: STARTUP not done means that the Start Up has not been done or that the analysis are done with results of the Start Up outside the limits (see section 5.4). Page 76/99 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 77: Hydraulic Description

    8. TECHNOLOGY REF : M22/UM/EN/006 8.6 HYDRAULIC DESCRIPTION The hydraulic part of the MYTHIC 22 is very simple and made of these modules: - Sampling module. - Counting bath module. - Syringes module. - Optical manifold. - Optical bench. The modules are connected together by semi rigid tubing.

  • Page 78: Optical Bench

    9.6. 8.8.2 Menu tree See next page. Page 78/99 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...
  • Page 79 8. TECHNOLOGY REF : M22/UM/EN/006 MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 79/99...

  • Page 80: Service

    9. S ERVICE The quality of the results and the reliability of the MYTHIC 22 are directly linked to the strict respect of the maintenance hereafter described. To perform the maintenance and the repair described in this section, it is mandatory to have received adequate training, to wear rubber gloves and wash hands with a disinfectant after completion of work.

  • Page 81: Concentrate Cleaning

    9.1.2 Concentrate cleaning This cleaning is necessary once a week to clean the WBC and RBC baths or when MYTHIC 22 is in permanent rejection for one measured parameter or if it give too much clog flags (see section 8.5.1).

  • Page 82: Piston Greasing

    - MYTHIC 22 performs a maintenance cycle of the apertures and the flow cell follow with a standby mode during 2 min. - After 2 min. MYTHIC 22 rinses all of the elements. Operator can perform an analytic cycle. Wear rubber gloves and wash hands with a disinfectant after completion of work.

  • Page 83: Hydraulic Cycles

    - Continue to put a thin film of grease around each piston. - The other pistons can be turned with fingers. 9.2 HYDRAULIC CYCLES - To have access to the hydraulic cycle, press from the MAIN MENU, then press MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 83/99...

  • Page 84: Mechanics

    (or off) the HGB led to check it. switches on (or off) the optical led to check it. see section 9.4.2 see section 9.1.3 Page 84/99 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 85: Repairing

    9.4.1 Emergency stop In case of mechanical or hydraulic problem, immediately press , the MYTHIC 22 will make an emergency stop. - After having identified the problem, it is necessary to perform a Control cycle. - To have access to this cycle, press...

  • Page 86: Needle Or O-Ring Replacement

    - Open the door located on the right side to have access to the hydraulic part. - The needle is in front of the counting chambers - Remove the sampling module, while slightly lowering the clip to the bottom. Page 86/99 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...
  • Page 87 - Remove the tubing fixed at the end of the needle. - Unscrew the serrated roller which maintains the seal and the needle. - Leave the serrated roller, the needle and the o-ring from the rinsing head. MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 87/99...

  • Page 88: Baths Dismantling

    - Press to perform a draining of the counting baths. - Open the door located on the right side of the instrument to have access to the hydraulic part. Page 88/99 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...
  • Page 89 - Then, upwards, raise the counting module. - Next, remove the tubing fixed on the RBC counting head, located on the right side of the counting module. MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 89/99...
  • Page 90 - The counting bath module can now be handled to carry out the desired operations of replacement. REASSEMBLY PROCEDURE: To reassemble the unit, carry out the various operations in the opposite direction. Page 90/99 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 91: Baths O-Ring Replacement

    - With the help of the provided tool in the maintenance kit, unscrew the screw and remove the connection. NOTA: This operation can be performed without dismantling the complete bath block. - Unscrew the aperture block of a quarter of turn. MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 91/99...

  • Page 92: Troubleshooting

    Check the level bubble flow in the WBC bath during the run cycle. Rejection Close the door. Perform a new Start Up cycle. Flag INS_H Perform a new Start Up cycle. Page 92/99 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...

  • Page 93: Other Problems

    Bad printing Check the black ribbon. 9.6 TROUBLESHOOTING MESSAGE This section allows knowing what to do when a troubleshooting message appears on the screen. If the problem go on contact your Orphee representative. ACTION MESSAGE Re-start the Mythic. BACKUP : FOLDER NOT FOUND...
  • Page 94 Replace the bottle and perform a prime Lysis LYSE ALMOST EMPTY Perform an initialization or a control cycle. MECA: HOME NEEDLE NOT FOUND Perform an initialization or a control cycle. MECA: HOME ROCKER NOT FOUND Page 94/99 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...
  • Page 95 THE DILUENT USED IS OUT OF DATE. Replace the bottle and perform a prime Lysis THE LYSE USED IS OUT OF DATE. Try again or change for another USB Thumb. USB: DIRECTORY DOES NOT EXIST. MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 95/99...
  • Page 96 Try again or change for another USB Thumb. USB: WRITE PROTECTED FILE. VERSION RELEASE FAILED. THE CHOSEN RELEASE IS NOT COMPATIBLE WITH THE Select the correct version MYTHIC 22 SYSTEM. Replace the waste container WASTE ALMOST FULL Page 96/99 Copyright© Orphée SA. All Rights Reserved.

  • Page 97: Logs Errors

    - To print or save (in an USB key) the error of one or more days select then enter the error reference number. MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 97/99...

  • Page 98: Hydraulic Diagram

    2 x 20 mm Tubing 51 180mm Tubing 52 50mm Tubing 53 60mm Tubing 54 365mm Tubing 55 140mm 15mm Tubing 56 10mm Tubing 57 80mm Tubing 58 1000mm Tubing 59 Page 98/99 Copyright© Orphée SA. All Rights Reserved. MYTHIC 22...
  • Page 99 9. SERVICE REF : M22/UM/EN/006 MYTHIC 22 Copyright© Orphée SA. All Rights Reserved. Page 99/99...
