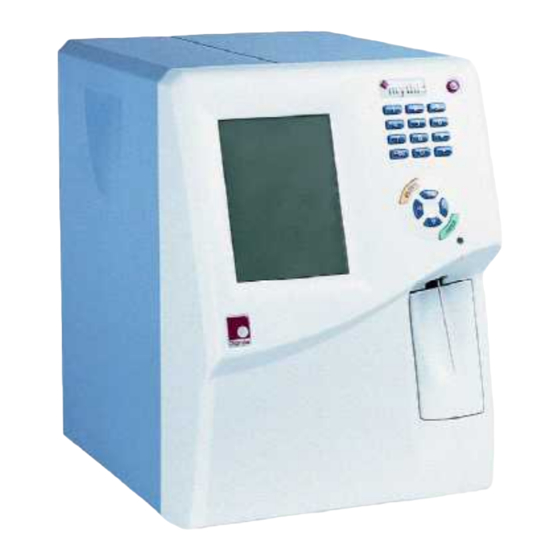

Orphee MYTHIC 18 Service Manual

Hide thumbs Also See for MYTHIC 18:

Service engineer training workbook (79 pages)

Technical notes (2 pages)

Table Of Contents

Table of Contents

Quick Links

Download this manual

ORPHEE

19, chemin du champ-des-filles

CH-1228 Geneva / Plan-les-Ouates

SWITZERLAND

Tel : +41 (0) 22 706 1840

Fax : +41 (0) 22 794 4391

http://www.orphee-medical.com

MYTHIC 18

REF : M18-SM-001 Rev 02

MYTHIC 18

Page 1/68

Table of Contents

Need help?

Do you have a question about the MYTHIC 18 and is the answer not in the manual?

Questions and answers

Summary of Contents for Orphee MYTHIC 18

Page 1 19, chemin du champ-des-filles CH-1228 Geneva / Plan-les-Ouates SWITZERLAND Tel : +41 (0) 22 706 1840 Fax : +41 (0) 22 794 4391 http://www.orphee-medical.com MYTHIC 18 REF : M18-SM-001 Rev 02 MYTHIC 18 Copyright© Orphée SA. All Rights Reserved. Page 1/68...
Page 2: Ref : M18-Sm-001 Rev
AUTHORIZED REPRESENTATIVE ORPHEE SA 19, chemin du champ-des-filles CH-1228 Geneva / Plan-les-Ouates WORLDWIDE SWITZERLAND Tel : +41 (0) 22 706 1840 Fax : +41 (0) 22 794 4391 http://www.orphee-medical.com LOCAL REPRESENTATIVE Page 2/68 Copyright© Orphée SA. All Rights Reserved. MYTHIC 18...
Page 3 NOTA : Indicates important additional information. BEFORE TO INSTALL OR TO MAINTAIN A MYTHIC 18 YOU HAVE TO READ AND TO REFER TO THE USER’S MANUAL. OPERATORS MUST HAVE RECEIVED ADEQUATE TRAINING.
Page 4 RF transmitters, an electromagnetic site survey should considered. If the measured field strenght in the location in which the MYTHIC 18 is used exceeds the applicable RF compliance level above, the MYTHIC 18 should be observed to verify normal operation.
Page 6: Table Of Contents
5.2.2.2.2 WBC pathologic alarms ............................. 32 5.2.2.2.3 RBC pathologic messages ..........................33 5.2.2.2.4 PLT pathologic messages..........................33 5.2.2.3 CALIBRATION ................................33 5.2.2.3.1 Results ................................... 34 5.2.2.4 QC....................................34 5.2.2.4.1 Results ................................... 34 5.2.2.5 REPEATABILITY................................ 35 Page 6/68 Copyright© Orphée SA. All Rights Reserved. MYTHIC 18...
Page 7 9.5.3.1 Fuse replacement ................................ 63 9.5.3.2 Battery replacement..............................63 9.5.4. Preamplifier board replacement............................65 10. TROUBLESHOOTING 10.1 A ..................................66 NALYTICAL PROBLEMS 10.2 O .....................................66 THER PROBLEMS 10.3 T .................................67 ROUBLESHOOTING MESSAGE MYTHIC 18 Copyright© Orphée SA. All Rights Reserved. Page 7/68...
Page 8: Introduction
BEFORE TO INSTALL OR TO MAINTAIN A MYTHIC 18 YOU HAVE TO READ AND TO REFER TO THE USER’S MANUAL The following chapters describe the different technical parts of the MYTHIC 18 Fluidic Electric & electronic Technical specification Output format...
Page 9: Fluidics
LUIDICS 2.1 GENERALITIES MYTHIC 18 is a fully automated analyzer performing hematological analysis on whole blood. The human blood venous sample must be collected in an EDTA K3 (Ethylene Diamine Tetracetic Acid, tri potassic) tube in sufficient quantity. The LMG results are available for six hours after the blood draw. The use of EDTA K2 leads to a poor quality level of the LMG results.
Page 10 28- Rocker move in the sampling position 26- Syringe up Waste syringe drain (valve 7) 30- Needle down in sampling position The MYTHIC 18 is ready to perform a new analyze. Page 10/68 Copyright© Orphée SA. All Rights Reserved. MYTHIC 18...
Page 11: Fluidics View
Reagent syringes (Diluent, lysis), sampling and air syringes. Liquid valve manifold assembly and tubing. Counting chambers : WBC and RBC counting chambers and hemoglobin measurement. Liquid valve manifold assembly and tubing. Sampling module Syringe Module Counting module MYTHIC 18 Copyright© Orphée SA. All Rights Reserved. Page 11/68...
Page 12: Fluidics Parts Description
2. FLUIDICS REF : M18-SM-001 Rev 02 2.4 FLUIDICS PARTS DESCRIPTION The hydraulic part of the MYTHIC 18 is very simple and made of only three modules : - Sampling module. - Counting bath module. - Syringes module. The modules are connected together by semi rigid tubing.
Page 14: Manifold Tubing Position
2. FLUIDICS REF : M18-SM-001 Rev 02 2.5.2 Manifold tubing position Each figure corresponds to a tubing number (see the Fluidic diagram section 2.5.1) Counting manifold Syringe manifold Syringe body Page 14/68 Copyright© Orphée SA. All Rights Reserved. MYTHIC 18...
Page 15: Size & Length Tubing
55mm (45°) 005-1001-90 26 A Tubing 26 005-1001-90 016 Tygon Tubing L=1000mm 1,6x3.2mm 1000mm 005-1001-90 020 A Tygon Tubing L=500mm 2x4mm 500mm 005-1001-90 030 A 20L Tubing Straw adaptor 100mm MYTHIC 18 Copyright© Orphée SA. All Rights Reserved. Page 15/68...
Page 16: Electric & Electronic
& LECTRIC ELECTRONIC 3.1 GENERALITIES Only three boards compose the MYTHIC 18 : the main board the preamplifier board and the GUI board - In the case of replacement of the main board or preamplifier board, be aware of the sensibility of this board to the electrical static discharge (ESD).
Page 17: Gui Board
3.2.4 Power supply block MYTHIC 18 is supplied with an external power supply block. - In case of replacement of the main power wire supplied with the MYTHIC 18, the new one must comply with the local regulation. - The MYTHIC 18 has been certified with the power supply box provided with the machine.
Page 29: Specifications
REF : M18-SM-001 Rev 02 4. S PECIFICATIONS 4.1 ANALYTICAL SPECIFICATIONS Refer to the User Manual. 4.2 REAGENTS SPECIFICATIONS Refer to the User Manual. 4.3 LIMITATIONS Refer to the User Manual. Page 29/68 Copyright© Orphée SA. All Rights Reserved. MYTHIC 18...
Page 30: Output Format
5.2.2.1.1 Request to send results MYTHIC X ;Y ;RESULT_READY ;Size[CR] 5.2.2.1.2 A CKNOWLEDGEMENT REQUEST TO SEND RESULTS ACK_RESULT_READY[CR] 5.2.2.1.3 A CKNOWLEDGEMENT RESULTS ACK_RESULT;A;B[CR] Where A : OK or Error Code, B : Reserved. MYTHIC 18 Copyright© Orphée SA. All Rights Reserved. Page 30/68...
Page 31: Routine Results
PLT CURVE; Channel value1;… ; Channel value 128 [CR] PLT THRESHOLDS; S1 [CR] ALARMS;x;x;x;x;x;x;x;x;x;x;x [CR] INTERPRETIVE_WBC;y;y;y;y;y;y;y;y;y;y;y;y [CR] INTERPRETIVE_RBC;y;y;y;y;y;y;y;y;y;y;y;y [CR] INTERPRETIVE_PLT;y;y;y;y;y;y;y;y;y;y;y;y [CR] COMMENT; RUO message if necessary END_RESULT; Checksum value [CR] MYTHIC 18 Copyright© Orphée SA. All Rights Reserved. Page 31/68...
Page 32: Alarm List
5.2.2.2.1 Alarm list. S-UP NOT DONE S-UP FAIL QC NOT DONE QC FAIL INS-M INS-T INS-P INS-R INS-H 5.2.2.2.2 WBC pathologic alarms LEU> LEU< LYM> LYM< GRA> GRA< MON> NO_INTERPRETATION Page 32/68 Copyright© Orphée SA. All Rights Reserved. MYTHIC 18...
Page 33: Rbc Pathologic Messages
In case of manual input of the coefficients, information of the lot are empty and the number of results is null. Acknowledgement of the calibration is done by the frame ACK_CALI ;Lot;A [CR] Where A : OK or Error Code. MYTHIC 18 Copyright© Orphée SA. All Rights Reserved. Page 33/68...
Page 34: Results
MON%; Value;A;B; Target - tolerance;;; Target + tolerance [CR] GRA%; Value;A;B; Target - tolerance;;; Target + tolerance [CR] LYM; Value;A;B; Target - tolerance;;; Target + tolerance [CR] MON; Value;A;B; Target - tolerance;;; Target + tolerance [CR] Page 34/68 Copyright© Orphée SA. All Rights Reserved. MYTHIC 18...
Page 35: Repeatability
CRC = 0xFFFF For each byte Work on high neeble: Indix = byte XOR CRC Indix = Indix AND 000F CRC = Table(Indix) XOR (CRC divided by 16) Work on low neeble: MYTHIC 18 Copyright© Orphée SA. All Rights Reserved. Page 35/68...
Page 36 = ausCrcTab1[(*pucData ^ usAcc1) & 15] ^ (usAcc1 >> 4); usAcc1 = ausCrcTab1[((*pucData >> 4) ^ usAcc1) & 15] ^ (usAcc1 >> 4); pucData++; lSize--; return(usAcc1); ^ : XOR. >> : Logical shift right. & : logical AND. Page 36/68 Copyright© Orphée SA. All Rights Reserved. MYTHIC 18...
Page 37: Parts List & Blow Up View
BLOW UP VIEW 6.1 PARTS LIST 6.1.2 Two years spare parts kit Part Number : 002-1001-50 20 02 Designation : Mythic 18 (2 years) spare parts kit QTY Rev Part Number Designation A 002-1001-50 10 Mythic 18 O-Rings kit A 002-1001-50 11 Mythic 18 Tubings kit A 005-1001-03 03 Piston Ø...
Page 38: O-Rings Kit
6. PARTS LISTE & BLOW UP VIEW REF : M18-SM-001 Rev 02 6.1.2 O-rings kit Part Number : 002-1001-50 10 Designation : Mythic 18 O-Rings kit QTY Rev Part Number Designation 312-0501-1554 262 O-ring Ø15.54x2.62 Silicone 60SH 312-0501-1877 178 O-ring Ø18.77x1.78 Silicone 60SH 312-0501-2189 262 O-ring Ø21.89x2.62 Silicone 60SH...
Page 39: All Spare Parts
Front cover 005-1001-04 02 UNIT Lubriplate DS-ES 410-0502-01 UNIT Lyse Spring 005-1001-86 01 UNIT Mythic 18 (2 years) spare part kit 002-1001-50 20 02 UNIT Mythic 18 CPU Board 205-1001-01 UNIT Mythic 18 CPU Board & Preamplifier 002-2001-04 UNIT Mythic 18 IHM Board...
Page 40 Tygon tubing 0,8x2,4mm 300-0502-008 024 1000 Tygon tubing 1,3x3mm 300-0502-013 030 1000 Tygon tubing 1,6x3,2mm 300-0502-016 032 5000 Tygon tubing 2x4mm 300-0502-020 040 5000 WBC Counting Head 005-1001-01 02 01 UNIT Page 40/68 Copyright© Orphée SA. All Rights Reserved. MYTHIC 18...
Page 41: Blow Up View
005-1001-01 02 01 WBC Counting Head 005-1001-01 02 02 RBC Counting Head 312-0505-500 100 O-ring Ø5x1 Silicone 80SH 360-0101-030 060 Screw CZX M3 x 6 312-0505-1310 160 O-ring Ø13.1x1.6 Fluocarbon 80SH MYTHIC 18 Copyright© Orphée SA. All Rights Reserved. Page 41/68...
Page 42: Sampling Module
11 360-0102-030 060 Screw RLX M3 x 6 12 360-0101-030 080 Screw CZX M3 x 8 13 005-1001-82 880 200 Rocker Optical Sensor 14 370-4050-030 10 Anti-loss washer Ø3 x 1 Page 42/68 Copyright© Orphée SA. All Rights Reserved. MYTHIC 18...
Page 43: Syringe Module
O-ring Ø21.89x2.62 Silicone 60SH 312-0501-630 240 O-ring Ø6.3x2.4 Silicone 60SH 10 312-0505-140 125 O-ring Ø1.4x1.25 Fluocarbon 80SH 11 010-2501-03 10 O-ring spacer 12 363-0201-030 100 Screw K 30 x 10 MYTHIC 18 Copyright© Orphée SA. All Rights Reserved. Page 43/68...
Page 44 Screw K 30 x 10 360-0101-040 200 Screw CZX M4 x 20 385-1001-04 30 Silent bloc M4 005-1001-82 880 250 Syringe Optical Sensor 363-0201-030 080 Screw K 30 x 8 Page 44/68 Copyright© Orphée SA. All Rights Reserved. MYTHIC 18...
Page 45 REF : M18-SM-001 Rev 02 Rep Part Number Designation 005-1001-03 07 Syringes motor holder 002-1001-03 05 Syringes body 360-4002-030 Plain washer Ø3 360-0101-030 080 Screw CZX M3 x 8 005-1001-90 26 Tubing 26 MYTHIC 18 Copyright© Orphée SA. All Rights Reserved. Page 45/68...
Page 46: Cpu-Preamplifier Module
6. PARTS LISTE & BLOW UP VIEW REF : M18-SM-001 Rev 02 6.2.4 CPU-PREAMPLIFIER Module Rep Part Number Designation 002-2001-04 Mythic 18 CPU & Preamplifier board 205-1001-01 Mythic 18 CPU board 205-1001-03 Mythic 18 Preamplifier board 360-0101-030 060 Screw CZX M3 x 6...
Page 47: Front Cover Module
6. PARTS LISTE & BLOW UP VIEW REF : M18-SM-001 Rev 02 6.2.5 Front cover Module Rep Part Number Designation 005-1001-04 02 Front cover 005-1001-84 06 170 Start key Switch MYTHIC 18 Copyright© Orphée SA. All Rights Reserved. Page 47/68...
Page 48: Software
- For an access to the latex adjustment and HGB blanc adjustment press allows to test the aperture current. see section 8.3. allows to fill up the log accessible from the MAIN MENU. MYTHIC 18 Copyright© Orphée SA. All Rights Reserved. Page 48/68...
Page 49: Counting Parameters
WBC gain with the use of special latex particles. allows to adjust the RBC and PLT gain with the use of special latex particles. : Tag means that the adjustments are automatically done. MYTHIC 18 Copyright© Orphée SA. All Rights Reserved. Page 49/68...
Page 51: Maintenance
8. M AINTENANCE The quality of the results and the reliability of the MYTHIC 18 are directly linked to the strict respect of the maintenance hereafter described. To perform the maintenance and the repair described in this section, it is mandatory to wear rubber gloves and wash hands with a disinfectant after completion of work.
Page 52: Concentrated Cleaning
REF : M18-SM-001 Rev 02 8.2 CONCENTRATED CLEANING Such cleaning is necessary when MYTHIC 18 is in permanent rejection for one measured parameter. Prepare a Sodium Hypochlorite solution at 12° in chloride (diluted 4 times with distilled water if sodium hypochlorite is concentrated at 48°...
Page 53: Clean Out
8.3 CLEAN OUT This procedure has to be used when the MYTHIC 18 must be transported for a long distance by car, train or plane. This procedure consists of cleaning the MYTHIC 18 with sodium hypochloride, then rinsing it with distilled water and drying it before the transportation.
Page 54: Repairing
Be careful with the edge of the metal sheets after having dismantled of the covers. 9.1 EMERGENCY STOP In case of mechanical or hydraulic problem, immediately press , the MYTHIC 18 will make a emergency stop. - After having identified the problem, it is necessary to perform a Control cycle.
Page 55 - Unscrew the two guide screw but DO NOT remove it. - Then slide down the guide - Remove the complete rocker module. REASSEMBLY PROCEDURE : To reassemble the unit, carry out the various operations in the opposite direction. MYTHIC 18 Copyright© Orphée SA. All Rights Reserved. Page 55/68...
Page 56: Counting Baths Module
: Take care about the tubing reconnection, if necessary, cut few millimeters (2 to 3mm) of tubing or exchange them. REASSEMBLY PROCEDURE : To reassemble the unit, carry out the various operations in the opposite direction. Page 56/68 Copyright© Orphée SA. All Rights Reserved. MYTHIC 18...
Page 57: Syringe Module
- Unscrew (but WITHOUT dismantle them) the four screws which maintain the syringe module. - Lift the bloc, to exit the syringe pistons from the piston carriage. - Exchange the piston, if needed. MYTHIC 18 Copyright© Orphée SA. All Rights Reserved. Page 57/68...
Page 58: Complete Syringe Module Replacement
- Disconnect the tubing. - Remove the complete syringe module. NOTA : Take care about the tubing reconnection, if necessary, cut few millimeters (2 to 4mm) of tubing or exchange them. Page 58/68 Copyright© Orphée SA. All Rights Reserved. MYTHIC 18...
Page 59: Boards Replacement
9. REPARING REF : M18-SM-001 Rev 02 9.5 BOARDS REPLACEMENT THE THREE BOARDS OF THE MYTHIC 18 ARE VERY SENSITIVE TO ELECTROSTATIC DISCHARGE, YOU HAVE TO USE A BODY EARTH CONNECTION HANDLE BOARDS THEIR REPLACEMENT DISMANTLING. 9.5.1 GUI board replacement Unscrew (but WITHOUT dismantle them) the two upper screws which maintain the front panel.
Page 60 . This part is VERY sensitive. In case of brake, the complete GUI board have to be changed. VERY SLOWLY pull the flat cable outside the connector. Page 60/68 Copyright© Orphée SA. All Rights Reserved. MYTHIC 18...
Page 61: Main Board Replacement
VERY SLOWLY push the flat cable inside the window. Remove the nine connectors located at the top of the board Remove the baths connection (HGB, WBC coaxial, RBC coaxial and temperature sensor). MYTHIC 18 Copyright© Orphée SA. All Rights Reserved. Page 61/68...
Page 62 Remove the two screws located at the hydraulics side. Remove the vacuum tubing, then remove the board. NOTA : After having performed the replacement of the board, don’t forget to reconnect the vacuum tubing. Page 62/68 Copyright© Orphée SA. All Rights Reserved. MYTHIC 18...
Page 63: Main Board
Never subject the battery to severe shock. Dropping, throwing or stomping on the battery may cause distortion, leakage, overheating, explosion, or fire. MYTHIC 18 Copyright© Orphée SA. All Rights Reserved. Page 63/68...
Page 64 As electric capacity is left in a discarded battery and it comes into contact with other metals, it could lead to distortion, leakage, overheating, or explosion, so make sure to cover the (+) and (-) terminals with friction tape or some other insulator before disposal. Page 64/68 Copyright© Orphée SA. All Rights Reserved. MYTHIC 18...
Page 65: Preamplifier Board Replacement
Remove the two screws located on the copper side. Remove the preamplifier box from the main board. To reassemble the part, carry out the various operations in the opposite direction. MYTHIC 18 Copyright© Orphée SA. All Rights Reserved. Page 65/68...
Page 66: Troubleshooting
Check the level diluent and if the tubing is pinched. No display Check the flat cable. Printer No printing Check the paper. Check the electrical connection. Bad printing Check the black ribbon. MYTHIC 18 Copyright© Orphée SA. All Rights Reserved. Page 66/68...
Page 67: Troubleshooting Message
INTERN: NO MEMORY AVAILABLE Re-start the Mythic. Wait before performing a cycle. If persisting, re-start INTERN: RESULT AREA IS LOCKED the Mythic. LYSE ALMOST EMPTY Replace the bottle and perform a prime Lysis MYTHIC 18 Copyright© Orphée SA. All Rights Reserved. Page 67/68...
Page 68 Replace the container and perform a prime Diluent THE LYSE USED IS OUT OF DATE Replace the bottle and perform a prime Lysis WASTE ALMOST FULL Replace the waste container Page 68/68 Copyright© Orphée SA. All Rights Reserved. MYTHIC 18...
