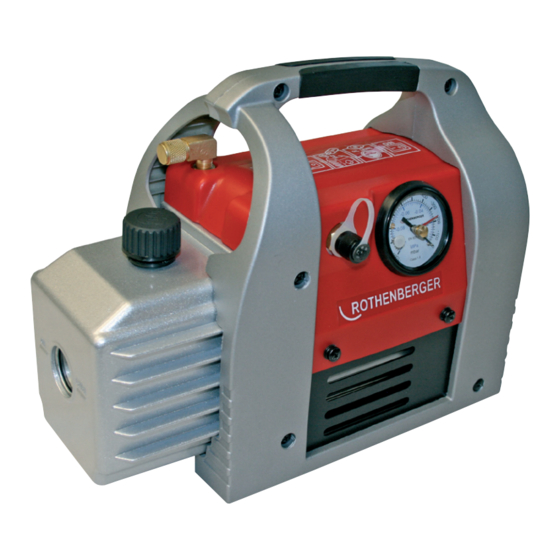

Summary of Contents for Rothenberger ROAIRVAC 1.5

  • Page 1 ROAIRVAC 170061 170062 Instructions for use 170063 170064 www.rothenberger.co...
  • Page 2 Overview B Overview...
  • Page 3 C ROAIRVAC...
  • Page 4 2004/108/EC 2006/95/EC 2011/65/EU EN 55014-1 EN 55014-2 EN 61000-3-2 EN 61000-3-3 Herstellerunterschrift Manufacturer / authorized representative signature César Sainz de Diego 17.11.2014 Technische Unterlagen bei / Technical file at: ROTHENBERGER S.A. Ctra. Durango-Elorrio, Km 2 E-48220 Abadiano (Vizcaya)
  • Page 5 Intro DEUTSCH Seite 2 Bedienungsanleitung bitte lesen und aufbewahren! Nicht wegwerfen! Bei Schäden durch Bedienungsfehler erlischt die Garantie! Technische Änderungen vorbehalten! ENGLISH page 11 Please read and retain these directions for use. Do not throw them away! The warranty does not cover damage caused by incorrect use of the equipment! Subject to technical modifications! FRANÇAIS page 19...
  • Page 6: Table Of Contents

    Contents Page Safety Notes ........................12 General safety instructions ....................12 Special safety instructions ....................13 Material included......................... 13 Description (A – B – C) ....................... 13 Technical Data ........................14 Set-up of pump before first operation ................16 Operation ..........................16 Routine maintenance ......................
  • Page 7: Safety Notes

    Safety Notes General safety instructions ATTENTION! When using electric tools, the following fundamental safety measures must be taken to prevent electric shock, injury or fire. Read all of these instructions before you use the electric tool, and store the safety in- structions properly.
  • Page 8: Special Safety Instructions

    18 Use outdoor extension cords. When outdoors, use only extension cords that are approved and appropriately marked. 19 Be alert. Pay attention to what you do. Approach your work sensibly. Do not use the electric tool when you are distracted. 20 Check the electric tool for damage.
  • Page 9: Technical Data

    Oil level sight glass Oil drainage plug Vacuum gauge and solenoid valve integrated 1/4”SAE connection ON/OFF Cooling fan Characteristics label Technical Data ROAIRVAC 1.5 ROAIRVAC 3.0 ROAIRVAC 6.0 ROAIRVAC 9.0* 230 V, 50 – 60 Hz No. 170061 No. 170062 No. 170063 No.
  • Page 10 ROAIRVAC 1.5J ROAIRVAC 2.5J ROAIRVAC 4.0J ROAIRVAC 6.0J* 100 V, 50 – 60 Hz No. R17061J16 No. R17065J16 No. R17066J16 No. R17063J16 CFM 60Hz / 1.5 / 1.3 2.5 / 2 4 / 3.5 6 / 5 50 Hz l/min 60Hz / 42 / 34 71 / 57 113 / 99...
  • Page 11: Set-Up Of Pump Before First Operation

    Only use ROTHENBERGER oil; different lubricants reduce performance and may cause irreversible damage to the pump. Warranty is void if other oil has been used.
  • Page 12: Routine Maintenance

    CFC, HCFC and HFC refrigerants. Working with ROTHENBERGER POE synthetic oil is also feasible. Both ROTHENBERGER oil types available after order. Volumes to be filled into the pumps are specified in section 1.1. Replace the oil charge no later than 20 hours of operation.
  • Page 13: Customer Service

    2. Contact our Service-After-Sales. Customer service The ROTHENBERGER service locations are available to help you (see listing in catalog or on- line) and replacement parts and service are also available through these same service locations. Order your accessories and spare parts from your specialist retailer or using our service-after-...
  • Page 14 Tel. + 86 21 / 67 60 20 61 • + 86 21 / 67 60 20 67 ROTHENBERGER Sweden AB Fax + 86 21 / 67 60 20 63 • office@rothenberger.cn Hemvärnsgatan 22 • S- 171 54 Solna, Sverige Tel.
