USER'S MANUAL
Carefully read these instructions before starting
and using your fi rewood packer!
FIREWOOD PACKER
WRAPTIME I/S , II/S
Südharzer Maschinenbau GmbH
Helmestraße 94 ∙ 99734 Nordhausen/Harz
Zentrale: 03631/6297-0 ∙ 7 -111
Internet: www.bgu-maschinen.de
e-mail: info@bgu-maschinen.de
Advertisement
Table of Contents
Related Manuals for BGU WRAPTIME I/S
Summary of Contents for BGU WRAPTIME I/S

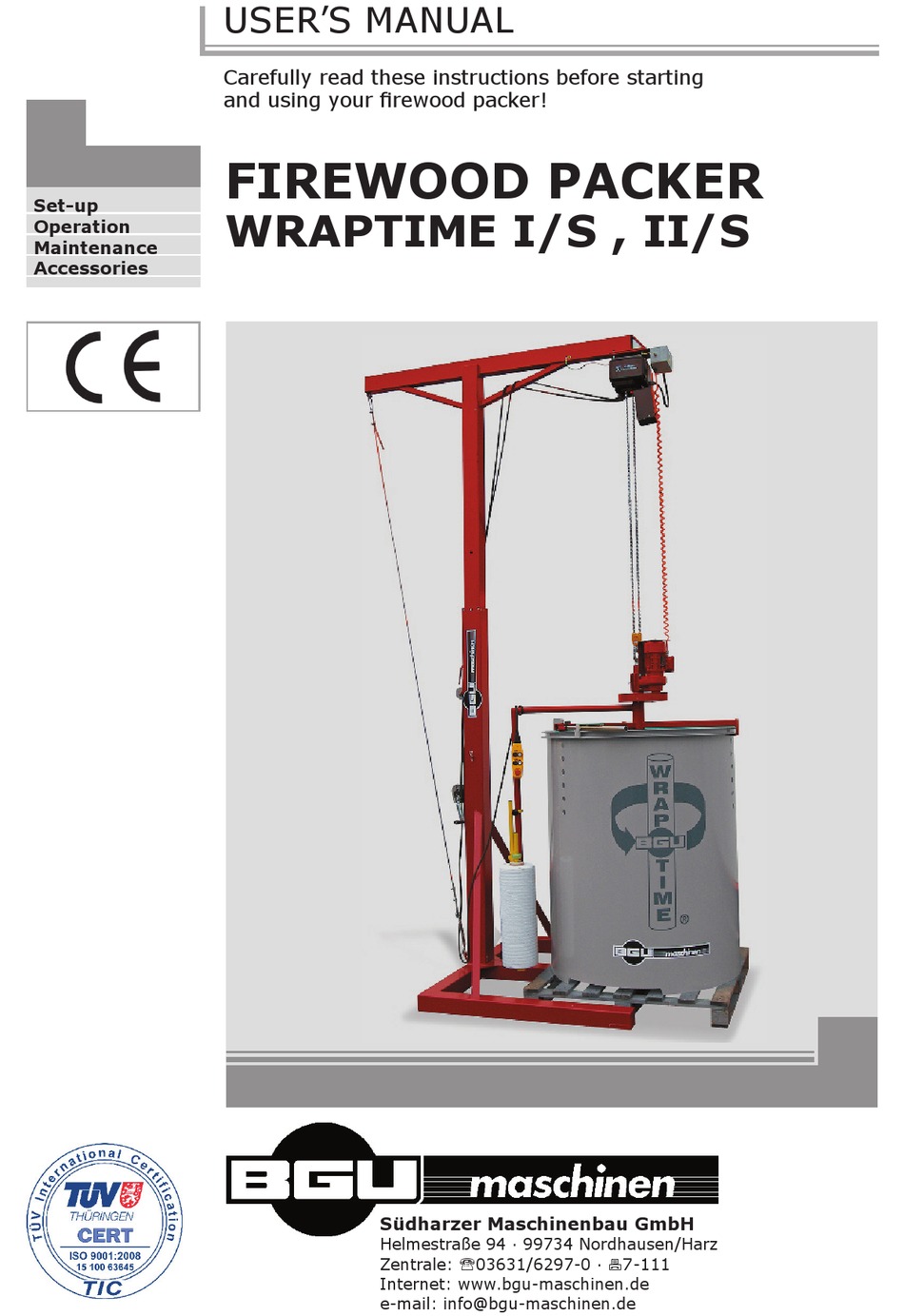

- Page 1 USER’S MANUAL Carefully read these instructions before starting and using your fi rewood packer! FIREWOOD PACKER Set-up WRAPTIME I/S , II/S Operation Maintenance Accessories Südharzer Maschinenbau GmbH Helmestraße 94 ∙ 99734 Nordhausen/Harz Zentrale: 03631/6297-0 ∙ 7 -111 Internet: www.bgu-maschinen.de...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION 1.1 About the manual 1.2 Delivery and transport claims 1.3. Mandatory application field SAFETY PICTOGRAMS AND WARNING LABELS GENERAL SAFETY RULES OPERATION 4.1 Description of the packing process USE OF THE MOUNT FRAME 5.1 Installation of the mount frame 5.2 Installation of the hoist on the upper swing-arm 5.3 Setting the mount frame ready for operation 5.4 Connection of the electric chain-hoist... -
Page 3: Introduction
Our firewood packing machine is available in the following two versions: BGU Wraptime I/S - with electric rope hoist BGU Wraptime I/S - with electric chain rope hoist 1.1 About the manual Please take time to read this manual and learn to how operate and maintain the equipment safely. -
Page 4: Mandatory Application Field
No claims will be taken into account by the shipper or by the insurance company, if a reservation note is not made on the delivery bill. All transport damages must be notified within latest 2 days from deliv- ery. Therefore delivery must be collected and inspected within this term. -
Page 5: Safety Pictograms And Warning Labels
SAFETY PICTOGRAMS AND WARNING LABELS 1. BGU-Maschinen“ Manufacturer’s logo” 2. Identification label This label shows the company details of the manufacturer and the main technical data of machine. 3. Machine safety label „Read, understand, and follow all instructions in this manual and on the packer before starting!“... -
Page 6: General Safety Rules
GENERAL SAFETY RULES Keep bystanders and unauthorized persons away from the dangerous areas! Do not alter the construction of the machine for no reason at all! Make sure that the machine is properly and efficiently attached to the trac- tor, and that the locking mechanism is perfectly and efficiently opera- ting. -
Page 7: Operation
OPERATION 4.1 Description of the packing process Settle the pallet under the collection barrel (Code no. 97173). Move the barrel from the top down, onto the pallet. Disengage the quick-fastener with rotary lock (Fig. 1.1) Fig. 1 The quick-fastening system allows rapid changing of the barrel when you are working with more than one barrel at a time in a continuous operation mode. - Page 8 BEWARE! Rotation must occur in the same direction as shown by the arrow! Make sure that the first two wraps are done below pallet top and firmly around all corners (or alternatively underneath the extension planks). This is to allow firm attachment of the net and avoid twisting or slip- ping of the latter, which could cause later undoing of the wood pack.
- Page 9 Should you note that the net is loose and does not hold together tightly, pull the upper holder of the yellow spool bracket to adjust the spooler tension. When you do so, you will increase the slipping resistance, which results into efficient netting. Fig.
- Page 10 Finally lift the barrel all the way up, so that you can remove the wood pack and replace it with a new pallet. Press the opposite push-button as the one used for hoisting and let Fig. 11 the barrel down to start a new cycle. Wrapped wood packs ready for sale are safely and efficiently stackab- Fig.
-
Page 11: Use Of The Mount Frame
HOIST AND MOUNT FRAME! 5.2 Installation of the hoist on the upper swing-arm If you bought our hoist version Wraptime I/S (Code no. 97165), with electric rope, screw it directly to the plate that you find on the upper arm of the mount frame. -
Page 12: Setting The Mount Frame Ready For Operation
When you operate the „UP-button“, the chain will be completely woun- ded up. When you operate the „DOWN-button“, the chain will be completely unwounded. The rotation of the barrel must match the direction shown by the arrow on the barrel. (see Fig. 16) Fig. -
Page 13: Connection Of The Electric Chain-Hoist
Clamping rope: Tie the free end of the clamping rope (the one pulled across the rear side of the mount-frame arm) to the special eye bolt located underneath the floor-stand of the crane, and secure it using a screw jack. (see Fig. -
Page 14: Repairs And Maintenance
Make sure to provide regular lubrication of all bearings. 6.1 Consumables Bearing and springs are consumable parts that are not covered by any warranty. 7. TECHNICAL DATA Technical data Wraptime I/S Wraptime II/S Electric chain hoist 1000 Kg Electric rope hoist 400/800 kg... -
Page 15: Transport
TRANSPORT The mount frame is delivered by the manufacturer completely folded up for easier and cost-effective transportation. The machine can be equipped with a Euro-Combi carrier (also see Point 5) for attachment to a tractor: • Front loader or • Rear tractor hydraulics... -
Page 16: Diactivating And Disposal
DIACTIVATING AND DISPOSAL When the packer is fully obsolete and cannot be of any longer use, it should be duly dismounted ahead of disposal. Certain components need deactivation and dismantling in order to assure that no further use is made by other parties and that no worn out parts are recycled for other applications. -
Page 17: Spare Part List
10. SPARE PART LIST Pos. Description (Wraptime) Dimensions Motor lid Gear motor Motor plate Motor mount Screw M8x35 Screw M10x15 Self-locking nut Screw M10x130 Self-locking nut Screw M8x30 Belt 13780-001 Belt sheave, small Screw M6x15 Sheave, large Belt upper casing Hex socket head cap screw M6x20 Belt sheave, large... - Page 18 Pos. Description (Wraptime) Dimensions Self-locking nut Shim Stud, locking bar Screw with hex recess M6x20 Plastic pad 1 Hexagon socket head cap screw M6x15 Lever Plastic pad 2 Hexagon socket head cap screw M6x10 Plastic pad 3 Hexagon socket head cap screw M6x10 Packing Star screw...
- Page 19 Pos. Description (C R A N E) Dimensions Hoist Screw Screw M5x6 Shim Chain hoist, plate Control panel for chain/rope winch Spiral wire Wire adjuster Adjuster Power cord Plate for hoist control panel Floor plate Stand Plastic pad 4 Hexagon socket head cap screw M6x10 Plastic pad 5 Hexagon socket head cap screw...
-
Page 23: Ec Statement Of Compliance
This statement of compliance does not apply to customer modifications of the equipment without manufacturer’s written approval. Machine type: Wraptime Models: Wraptime I/S , II/S Production serial no.: see product identification label Applicable European Standards: EC Machine Directive No. EC 2006/42... - Page 24 Subject to changes without prior noticen Form: 2141.19.01.2017 - Rev. B Südharzer Maschinenbau GmbH Form: 2142.19.01.2017 - Rev. A Helmestraße 94 ∙ 99734 Nordhausen/Harz Form: 2143.19.01.2017 - Rev. A Service-Tel. 03631/6297-104 ∙ Fax 03631/6297-111 Internet: www.bgu-maschinen.de Form: 2144.19.01.2017 - Rev. A e-mail: info@bgu-maschinen.de...
