dji OM 5 User Manual

Hide thumbs Also See for OM 5:
Table of Contents

Advertisement

Quick Links

User Manual
2021.09
v1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OM 5 and is the answer not in the manual?

Questions and answers

Related Manuals for dji OM 5

Summary of Contents for dji OM 5

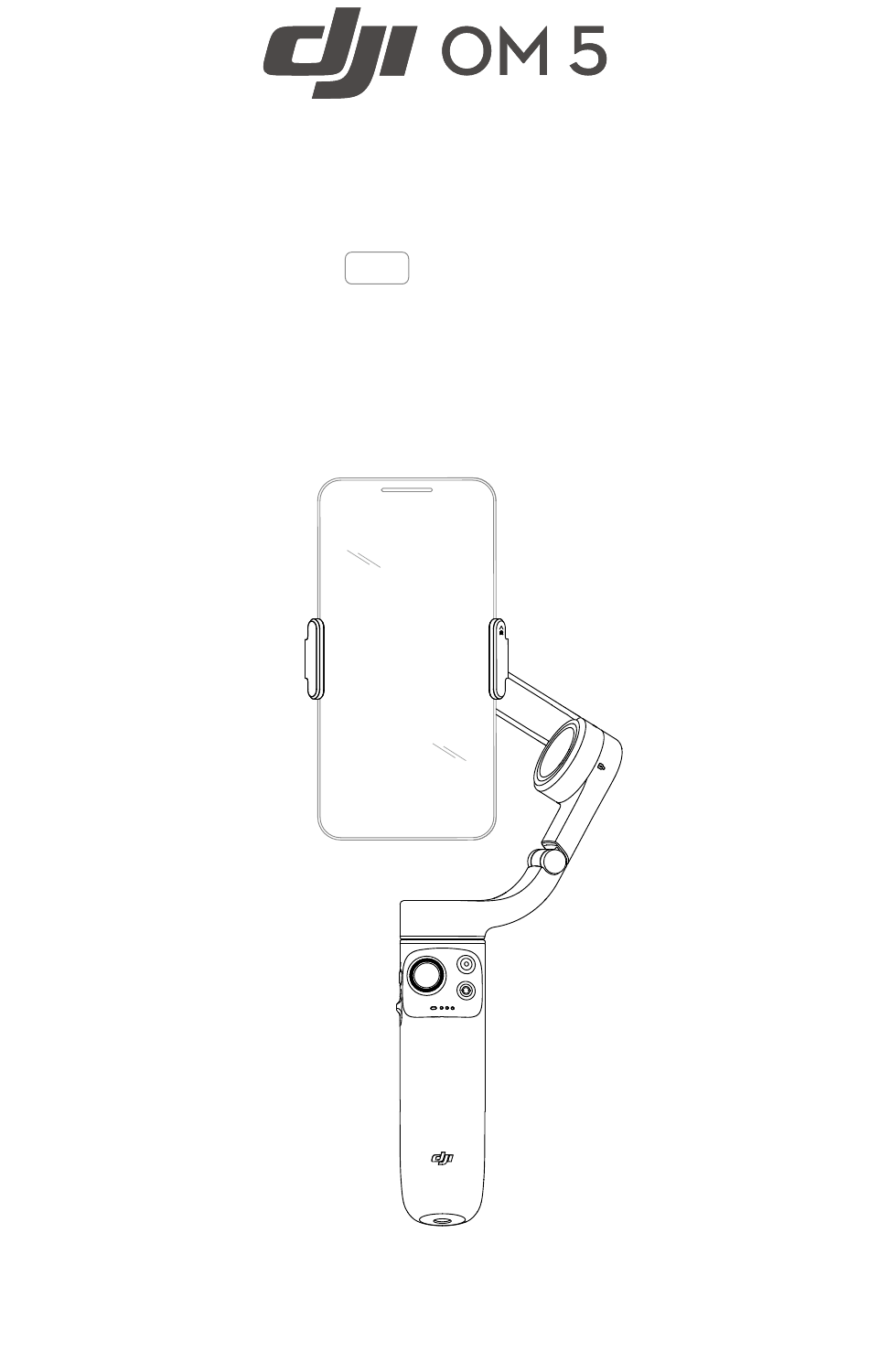

  • Page 1 User Manual 2021.09 v1.0...

  • Page 2: Using This Manual

    It is recommend to watch all tutorial videos on the official DJI website (www.dji.com/om-5/ video) or in the DJI Mimo app. Read the safety guidelines and quick start guide before using for the first time. Refer to this user manual for more information.

  • Page 3: Table Of Contents

    Getting Started Charging Attaching the Phone Using DJI OM 5 Button and Port Functions Operating Mode DJI Mimo App Connecting to the DJI Mimo App Camera View Firmware Update How to Update Storage Specifications © 2021 DJI OSMO All Rights Reserved.

  • Page 4: Introduction

    DJI OM 5 can be operated in both portrait and landscape and the upright, underslung, side grip, and low position modes help you capture the perfect shot. Take your content to the next level through DJI Mimo with ActiveTrack 4.0, Hyperlapse, Timelapse, DynamicZoom, and Pano.

  • Page 5: Getting Started

    Getting Started Charging To charge DJI OM 5, connect a USB adapter (not included) to the charging port using the power cable (included). The battery is fully charged when the battery level indicators turn off. Charging time: 1.5 hours (tested in the environment temperature of 25° C when using a 10 W charger) Max runtime: 6 hours (tested with the gimbal balanced and held steadily.
  • Page 6 3. Align the marks on the phone clamp and the phone clamp mounting plate. Attach the mobile phone to DJI OM 5. 4. Press and hold the M button to power on DJI OM 5. © 2021 DJI OSMO All Rights Reserved.
  • Page 7 M o u n t t h e m o b i l e p h o n e b e f o r e powering on DJI OM 5. If no mobile phone is detected, DJI OM 5 will vibrate and enter standby mode.

  • Page 8: Button And Port Functions

    Using DJI OM 5 After powering on, DJI OM 5 will enter follow mode by default. The gimbal converts joystick movements into smooth pan and tilt transitions, and reduces the impact of natural vibrations. The mobile phone can by adjusted by hand as well.
  • Page 9 DJI OM 5 User Manual Battery Level Indicators Indicates the battery level of DJI OM 5. Refer to the table below for details. The indicators are defined below. LED is on. LED is off. LED is flashing. LED is flashing fast.
  • Page 10 The Bluetooth connection is reset successfully when the system status indicator turns from green to yellow. Search DJI OM 5 and reconnect. DJI OM 5 will be powered off automatically if there is no operation for three minutes in standby mode.

  • Page 11: Operating Mode

    DJI OM 5 User Manual Operating Mode The figures below depict the operation modes when using OM 5 in portrait mode. The same operation modes apply when used in landscape mode. Upright Mode Underslung Mode Upright mode can be used without any Hold DJI OM 5 upside down to enter further user input.

  • Page 12: Dji Mimo App

    Album: manage and view footage from the phone or DJI devices. Editor: tap to edit photos or videos from DJI OM 5 or import and edit from a mobile device. Profile: register or log in to a DJI account. View works and settings, check likes and followers, send messages to other users, and connect with the DJI Store.

  • Page 13: Camera View

    There are three ways to use ActiveTrack 4.0: a. Drag a box on the screen in the camera view in DJI Mimo. A green box around the subject indicates ActiveTrack 4.0 is successfully enabled. Tap the X icon on the top corner to stop tracking.
  • Page 14 Angle, L to R, and R to L, set the interval and duration and start to shoot. For Custom Motion, select up to four positions and the gimbal will move to each position in sequence. DynamicZoom: choose from Move Out and Move In mode. After selecting a mode, drag a © 2021 DJI OSMO All Rights Reserved.
  • Page 15 Joystick Speed: tap to set the maximum speed when controlling the joystick. There are Fast, Medium, and Slow options. Joystick Control Direction: choose from Free and Horiz/Vert. Free enables the gimbal to be controlled in horizontal and vertical direction simultaneously. Horiz/Vert enables the © 2021 DJI OSMO All Rights Reserved.
  • Page 16 Gimbal Auto Calibration: reduces drift caused by nearby magnetic interference or human error. Before calibrating, place DJI OM 5 on a flat surface using a tripod. Do not touch the gimbal during calibration.

  • Page 17: Firmware Update

    DJI OM 5 is designed to be folded for easier storage and transportation. Make sure to fully retract the built-in extension rod and fold the OM 5 after powering off. Rotate the pan and tilt axis as shown and fold the gimbal. The mark of the axis arm should slot into the hole on the handle.

  • Page 18: Specifications

    0° to 40° C (32° to 104° F) Charging Time 1.5 hours (Measured with a 10 W charger in the environment temperature of 25° C) Operating Time 6 hours (Under ideal conditions with the gimbal fully balanced) © 2021 DJI OSMO All Rights Reserved.
  • Page 19 This content is subject to change. Download the latest version from www.dji.com/om-5/downloads OSMO is a trademark of DJI OSMO. Copyright © 2021 DJI OSMO All Rights Reserved.
