Page 2: Installation
INSTALLATION The MC60 adapter is installed between the incoming coaxial wall jack and the destination device, such as a TV or a set-top box. Connect a coax cable to the In port (or similar input port) on the destination device and to the TV OUT port on the MC60 adapter. Connect a coax cable to the cable wall jack and to the MoCA®...
Page 3 ® TV OUT MoCA ETHERNET RESET DC SV ON/OFF...
Page 4: Led Indicators

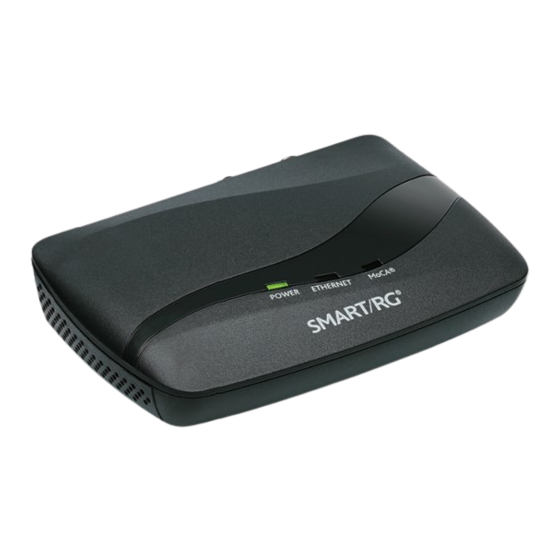

LED INDICATORS The LEDs on top of the MC60 can assist you in better understanding the current state of your adapter. POWER ETHERNET MOCA® Adapter has power Ethernet is connected Data being transmitted Adapter is connected to at least one other adapter Data being transmitted : Green : Green blinking...
Page 5 SYMBOLS The symbols displayed on the MC60 labeling are explained below. Symbol Indicates Polarity of DC power connector. DC voltage. AC voltage. For indoor use only. Class II equipment. Energy Efficiency Marking.
Page 6: Optional Wall Mount
OPTIONAL WALL MOUNT Insert the two included screws into the wall using the template below. Using wall anchors is recommended. 2 1/2” (64 mm) Slide the adapter down on the screws.
