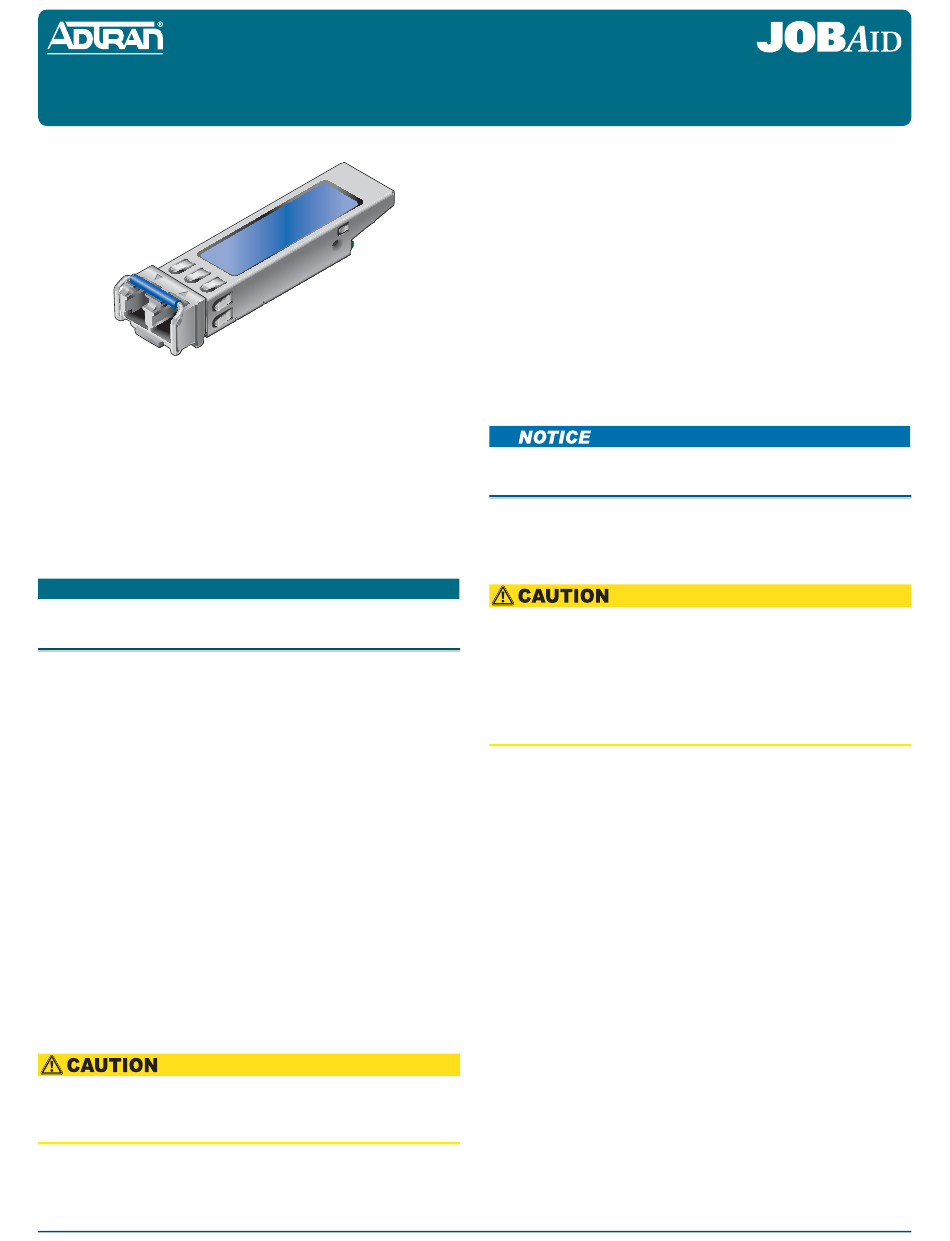

Small form factor pluggable 3.125 gigabit ethernet 20 km

Advertisement

CLEI: SOOTAKDJ_ _
Product P/N: 1442820G1
D
ESCRIPTION

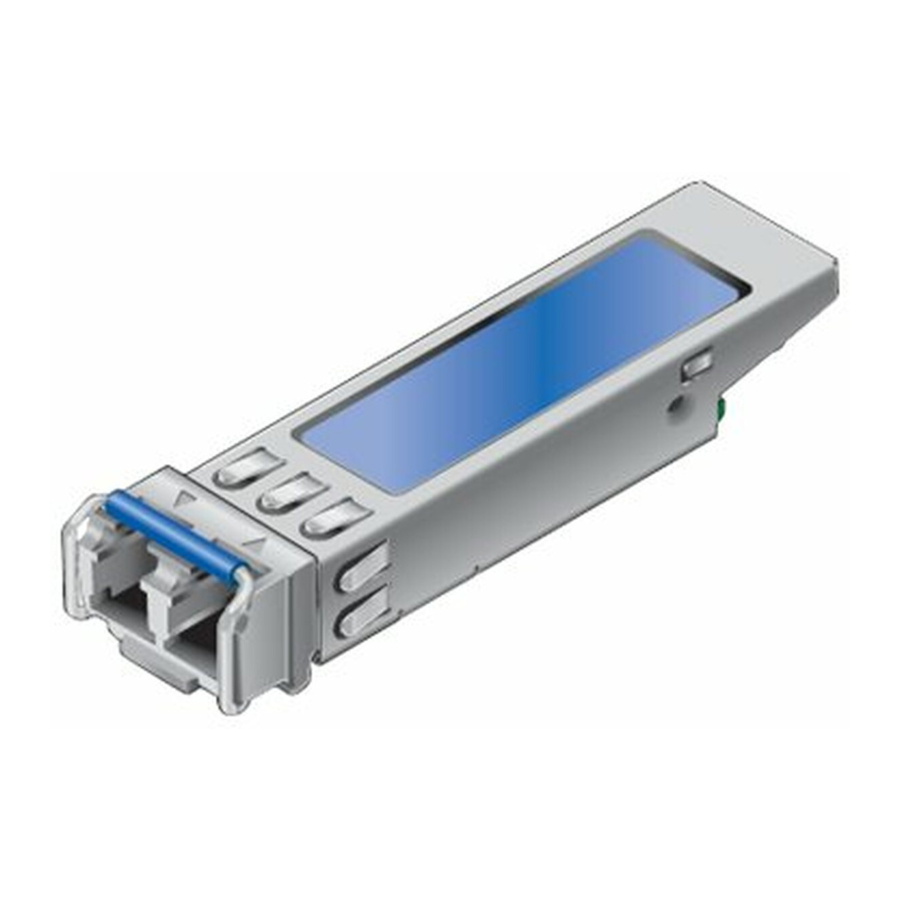

The Small Form-Factor Pluggable (SFP) 3.125 Gigabit
Ethernet is a single mode fiber SFP that plugs into a
module designed to accept SFPs. The SFP provides a dual
optical interface to the 3.125 Gigabit Ethernet physical
interface. Installed into an appropriate module, the SFP
provides 3.125 Gigabit Ethernet interface to the supporting
system.
NOTE
This SFP should not be used in applications requiring
standard Gigabit (1000Base) Ethernet services.
The following features are supported on the SFP:
3.125 Gigabit Ethernet data rate
1310nm Transmitter
Wavelength: 1310nm
Optical distance: 20 km maximum
Operational Specifications
Optical transmit level: –5 dBm to 0 dBm
Optical receive level: –16 dBm to 0 dBm
Optical connectors: LC
SFF 8472 Digital diagnostic compliant
Compatible with SFP MSA
Extended Environmental Support:
Operational temperature range: –40°C to +85°C
Storage temperature range: –40°C to +85°C
Relative humidity to 95%, noncondensing
Due to compliance certification requirements, use only
SFPs supplied by ADTRAN. ADTRAN cannot certify system
integrity with other SFPs.
Small Form Factor Pluggable
3.125 Gigabit Ethernet 20 km
I
NSTALLATION
To install the SFP into an appropriate module, complete the
following steps:
1. Inspect the SFP. If damaged, file a claim with the car-
rier and then contact ADTRAN Customer Service.
2. Do not remove the protective end cap from the SFP
until the fiber optic cable is ready to be connected.
3. Insert the SFP into the SFP cage on the module.
Ensure the manufacturer's label on the SFP is facing
upward for correct installation.
4. Slide the SFP all the way into the receptacle until there
is an audible "click."
The latch on the SFP is used to remove the SFP from the
cage on the circuit card.
C
OMPLIANCE
Electrostatic Discharge (ESD) can damage electronic
modules. When handling modules, wear an antistatic
discharge wrist strap to prevent damage to electronic
components. Place modules in antistatic packing material
when transporting or storing. When working on modules,
always place them on an approved antistatic mat that is
electrically grounded.
The SFP meets or exceeds all the applicable requirements
of NEBS, Telcordia GR-63-CORE, and GR-1089-CORE. The
SFP is intended for deployment in Central Office type facil-
ities, EEEs, EECs, and locations where the NEC applies (for
example, Customer Premises). The SFP is to be installed in
ADTRAN products in Restricted Access Locations only, and
installed by trained service personnel.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
Changes or modifications not expressly approved by
ADTRAN could void the user's authority to operate this
equipment.
Issue Date: 0812
