- Page 1 501 SE Columbia Shores Boulevard, Suite 500 Vancouver, Washington 98661 USA +1 360 859 1780 / smartrg.com /User Manual Model: MC60 Adapter Version: 1.1 June 2019...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Welcome! Purpose & Scope Intended Audience Getting Assistance Getting Familiar with your Adapter LED Status Indicators Connections Symbols Logging in to your Adapter's Interface Device Info Node Info Statistics Configuration SW Update APPENDIX A: FCC STATEMENTS FCC Interference Statement FCC Radiation Exposure Statement FCC - PART 68... -
Page 3: Welcome
Welcome! Thank you for purchasing this SmartRG product. SmartRG offers solutions that simplify the complex Internet ecosystem. Our solutions include hardware, software, applications, enhanced network insights, and security delivered via a future-proof operating system. Based in the USA, SmartRG provides local, proactive software development and customer support. -
Page 4: Getting Familiar With Your Adapter

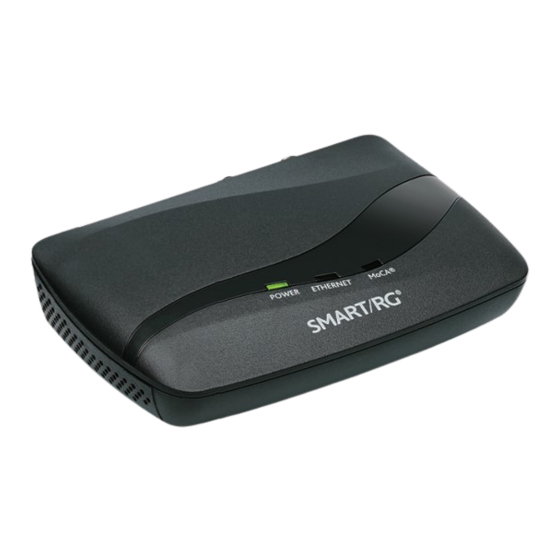

Getting Familiar with your Adapter This section contains a quick description of the adapter's lights, ports, and buttons to help you get familiar with its operation. LED Status Indicators Your SmartRG adapter has three indicator lights (LEDs) on its exterior. The following table describes the LEDs located on top of the adapter. -
Page 5: Symbols
Feature Description If you want to restore the default settings, insert a fine wire (such as a paper clip) into the hole, press the Reset button gently for 10 seconds, and then release the button. The system reboots and returns to the factory defaults. -
Page 6: Logging In To Your Adapter's Interface
Logging in to your Adapter's Interface To manually configure the MC60 adapter, access its embedded UI. Note: Before you can access the UI, make sure that your computer's IP (NIC) is set to any other IP address than the default IP address of the adapter (192.168.0.2). -
Page 7: Device Info
Device Info On this page, you can view information about your device including Board ID: The installed chip. SW Version: The embedded software version. HW Version: The hardware version. MY Version: The firmware version. RF Channel: The channel currently in use. Band: The active band. -
Page 8: Node Info
Node Info On this page, you can view information about your node including the node name, MAC address,power levels, etc. In the left navigation bar, click Node Info. The following page appears. SMARTRG INC. PROPRIETARY AND CONFIDENTIAL. ALL RIGHTS RESERVED. COPYRIGHT © 2016... -
Page 9: Statistics
Statistics On this page, you can view Ethernet statistics. In the left navigation bar, click Statistics.The following page appears. SMARTRG INC. PROPRIETARY AND CONFIDENTIAL. ALL RIGHTS RESERVED. COPYRIGHT © 2016... -
Page 10: Configuration
Configuration On this page, you can configure the RF settings. 1. In the left navigation bar, click Configuration. The following page appears. 2. Modify the fields, using the information provided in the table below. 3. Click Submit. Field Description This option is set to 1400 by default and cannot be changed. RF Channel Select an appropriate RF band. -
Page 11: Sw Update
SW Update On this page, you can upload a new software image file (firmware) to update your adapter. 1. In the left navigation bar, click Update. The following page appears. 2. Click Browse and select the file you want to upload. 3. -
Page 12: Fcc Radiation Exposure Statement
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numrique de la classe B est conforme à la norme NMB-003 du Canada. FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. -
Page 13: Ic Cs-03 Statement
The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service. If trouble is experienced with this equipment, for repair or warranty information, please contact SmartRG,Inc. -
Page 14: 5Ghz
Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu'aucune autre antenne ou émetteur. Cet équipement devrait être installé et actionné avec une distance minimum de 20 centimètres entre le radiateur et votre corps. This radio transmitter (identify the device by certification number, or model number if Category II) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. -
Page 15: Revision History
Revision History Revision Date Description June 2019 Updated content to reflect changes in physical design of the product. Sept 2016 Initial release of this user manual. SMARTRG INC. PROPRIETARY AND CONFIDENTIAL. ALL RIGHTS RESERVED. COPYRIGHT © 2016...
