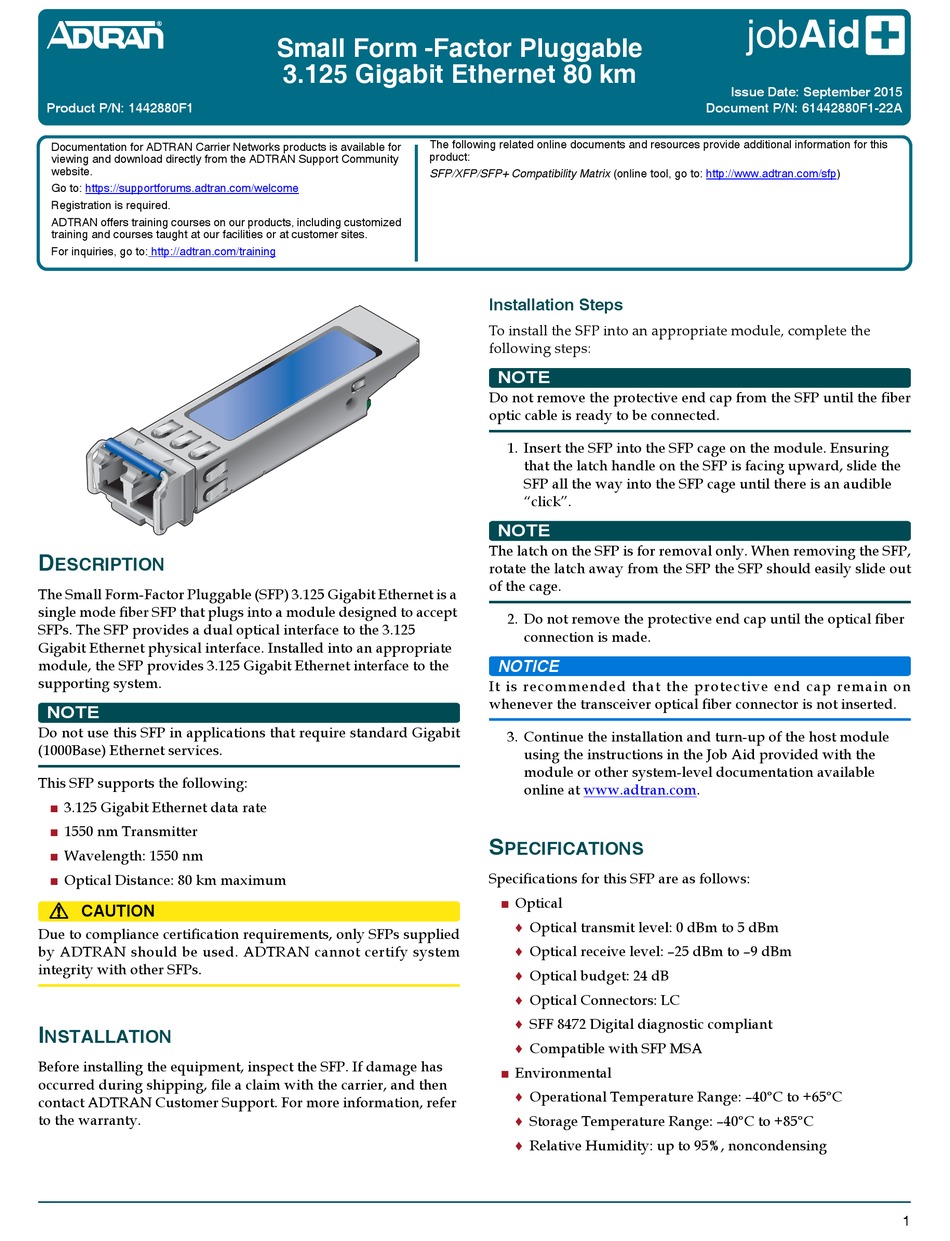

ADTRAN 1442880F1 Quick Start Manual

Product P/N: 1442880F1
Documentation for ADTRAN Carrier Networks products is available for
viewing and download directly from the ADTRAN Support Community
website.
Go to: https://supportforums.adtran.com/welcome
Registration is required.
ADTRAN offers training courses on our products, including customized
training and courses taught at our facilities or at customer sites.
For inquiries, go to: http://adtran.com/training
D
ESCRIPTION
The Small Form-Factor Pluggable (SFP) 3.125 Gigabit Ethernet is a
single mode fiber SFP that plugs into a module designed to accept
SFPs. The SFP provides a dual optical interface to the 3.125
Gigabit Ethernet physical interface. Installed into an appropriate
module, the SFP provides 3.125 Gigabit Ethernet interface to the
supporting system.
NOTE
Do not use this SFP in applications that require standard Gigabit
(1000Base) Ethernet services.
This SFP supports the following:
■ 3.125 Gigabit Ethernet data rate
■ 1550 nm Transmitter
■ Wavelength: 1550 nm
■ Optical Distance: 80 km maximum
!
CAUTION
Due to compliance certification requirements, only SFPs supplied
by ADTRAN should be used. ADTRAN cannot certify system
integrity with other SFPs.
I
NSTALLATION
Before installing the equipment, inspect the SFP. If damage has
occurred during shipping, file a claim with the carrier, and then
contact ADTRAN Customer Support. For more information, refer
to the warranty.
Small Form -Factor Pluggable
3.125 Gigabit Ethernet 80 km
The following related online documents and resources provide additional information for this
product:
SFP/XFP/SFP+ Compatibility Matrix (online tool, go to: http://www.adtran.com/sfp)
Installation Steps
To install the SFP into an appropriate module, complete the
following steps:
NOTE
Do not remove the protective end cap from the SFP until the fiber
optic cable is ready to be connected.
1. Insert the SFP into the SFP cage on the module. Ensuring
that the latch handle on the SFP is facing upward, slide the
SFP all the way into the SFP cage until there is an audible
"click".
NOTE
The latch on the SFP is for removal only. When removing the SFP,
rotate the latch away from the SFP the SFP should easily slide out
of the cage.
2. Do not remove the protective end cap until the optical fiber
connection is made.
NOTICE
It is recommended that the protective end cap remain on
whenever the transceiver optical fiber connector is not inserted.
3. Continue the installation and turn-up of the host module
using the instructions in the Job Aid provided with the
module or other system-level documentation available
online at www.adtran.com.
S
PECIFICATIONS
Specifications for this SFP are as follows:
■ Optical
♦ Optical transmit level: 0 dBm to 5 dBm
♦ Optical receive level: –25 dBm to –9 dBm
♦ Optical budget: 24 dB
♦ Optical Connectors: LC
♦ SFF 8472 Digital diagnostic compliant
♦ Compatible with SFP MSA
■ Environmental
♦ Operational Temperature Range: –40°C to +65°C
♦ Storage Temperature Range: –40°C to +85°C
♦ Relative Humidity: up to 95%, noncondensing
jobAid
Issue Date: September 2015
Document P/N: 61442880F1-22A
1
