Channel Vision 6115 Instructions

Specifications:
Image Sensor: Sony 1/3" Super HAD
Picture Elements: NTSC: 510x492
Resolution: 380 lines
S/N Ratio: More than 48 dB
Min Illumination: 0.2 LUX @ F2.0
Electronic Shutter: 1/60s - 1/100,000s
Gain Control: Automatic
Auto White Balance: Color Temperature: 2500K-9500K
Gamma Characteristic: 0.45
Camera Lens: 3.6mm / F2.0
Sync. System: Internal, Negative sync.
Power Requirements: 12VDC
Power Consumption: 145 mA
Video Output: 1 Vp-p @ 75 ohms
Operating Temp: -10°C to 50°C (14°F to 122°F)
CHANNEL VISION
Limited Warranty
Channel Vision Technology will repair or replace any defect in material or
workmanship which occurs during normal use of this product with new or rebuilt
parts, free of charge in the USA, for two years from the date of original purchase. This
is a no hassle warranty with no mail in warranty card needed. This warranty does not
cover damages in shipment, failures caused by other products not supplied by
Channel Vision Technology, or failures due to accident, misuse, abuse, or alteration
of the equipment. This warranty is extended only to the original purchaser, and a
purchase receipt, invoice, or other proof of original purchase date will be required
before warranty repairs are provided.
Mail in service can be obtained during the warranty period by calling (800) 840-0288
toll free. A Return Authorization number must be obtained in advance and can be
marked on the outside of the shipping carton.
This warranty gives you specific legal rights and you may have other rights (which
vary from state to state). If a problem with this product develops during or after the
warranty period, please contact Channel Vision Technology, your dealer or any
factory-authorized service center.
Specifications subject to change without notice.
500-139 rev B

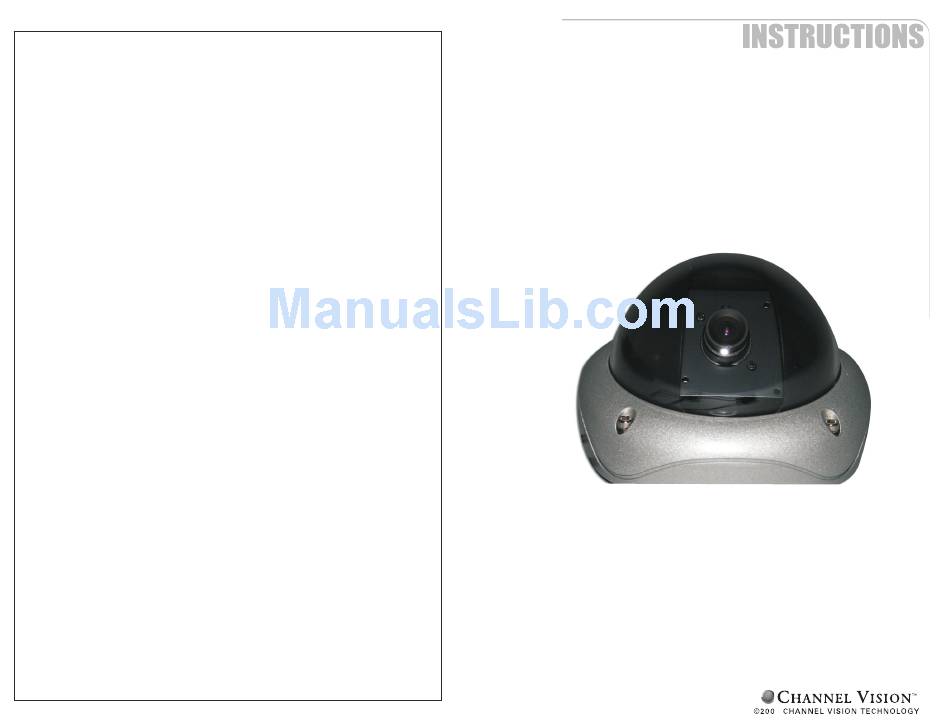

6115
Small Outdoor Color Dome Camera
