Channel Vision 6533 Instruction Manual

2 megapixel mini dome ip camera w/poe
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
6533
2 Megapixel Mini Dome IP Camera w/POE
1
3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6533 and is the answer not in the manual?

Questions and answers

Related Manuals for Channel Vision 6533

Summary of Contents for Channel Vision 6533

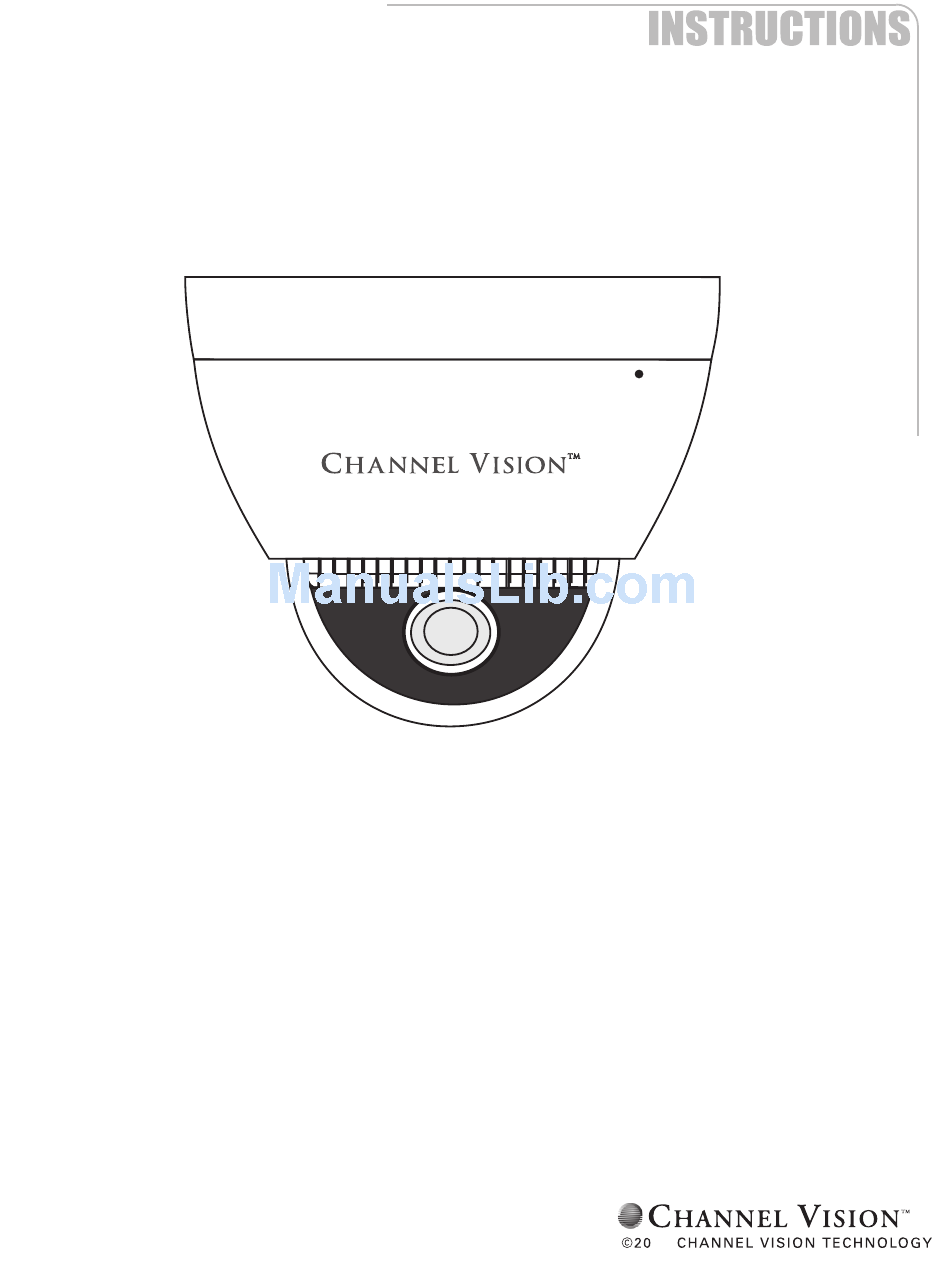

  • Page 1 6533 2 Megapixel Mini Dome IP Camera w/POE...
  • Page 2 Table Of Contents...
  • Page 3 Micro SD card recording slot inside camera 6533 Features: Channel Vision’s 6533 IP mini dome camera offers superior image quality with a 2 megapixel CMOS sensor and has the ability to capture images up to 1280 x 800 pixels. With H.264 compression, less bandwidth and storage space are used, while delivering full resolution at max frame rate with faster speeds over the internet.

  • Page 4: Safety Warnings

    9. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point of exit from the apparatus. 10. Only use attachments/accessories specified by Channel Vision. 11. Unplug this apparatus during lightning storms or when unused for long periods of time.

  • Page 5: Cable Pin Out

    “I/O Setting” section on the left. 3. Reset to factory default To restore your IP camera to Channel Vision default settings, unplug the power supply from the camera. Then, plug in power cable and press the “reset” button on the camera for 30 seconds. Once 30 seconds have passed, remove the electric wire and plug in the Ethernet cable.

  • Page 6: Camera Assembly

    Camera Assembly 1. Use without conversion ring (left) Use the three included screws to secure the base of the camera to the wall or ceiling. Screw on the camera cover, as tight as possible . Use with conversion ring right Use three screws to lock conversion ring onto the ceiling or wall.
  • Page 7 IP camera by your router. This, combined with UPnP (Universal Plug and Play) will make the IP setup of the IP camera a quick and easy task to accomplish. *For the best security, Channel Vision recommends you use a static IP setting and standard port forwarding. Open IP installer.
  • Page 8 Connecting To The IP Camera (DHCP) You will be prompted for a username and password. The default username is ‘admin’ The default password is ‘admin’ Installing The ActiveX Control 5. The first time you connect to the camera via Internet Explorer, it will ask you to install the ActiveX control. Internet Explorer 6, 7, 8, or 9 must be used to run this ActiveX control.
  • Page 9 Option Two: Assigning an IP Address (Static) Use the software, “IP Installer” to assign the IP address to your IP Camera. You can find "IP Installer" in the supplied CD. Execute IP Installer located on your disk under the folder “Software”...
  • Page 10 Assigning an IP Address (Static) /cont Click the start icon on your computer Type the word “run” and select enter on your keyboard. Type in ‘cmd’ and press enter on your keyboard, or press ok. Type in ‘ ipconfig /all ’...
  • Page 11 Assigning an IP Address (Static) /cont Copy/write down the following information from the DOS prompt. Default Gateway (Example 192.168.1.1) DNS Server (if 2 servers, use the first one, for example 192.168.1.9) Subnet Mask (Example 255.255.255.0)
  • Page 12 Assigning an IP Address (Static) /cont Enter the information you wrote down into the IP camera network page A. Default Gateway (Enter this number under “Gateway”) B. DNS Server (Enter this number under “DNS 1”) C. Subnet Mask (Enter this number under “Netmask”) Giving the IP Camera a unique IP address.
  • Page 13 Connecting To The IP Camera (Static) Open Internet Explorer. Type the IP address of the IP camera into the browser link window. Also, make sure to type the port at the end of the link. For example, I will type in http://192.168.1.199:9000 You will be prompted for a username and password.

  • Page 14: Configuring Internet Explorer

    Configuring Internet Explorer If the installation of the ActiveX control fails, for example the browser page says “done” but you do not see your camera, please check the security settings for your IE browser. Follow the instructions below. When popup the following dialogue box, click “Yes”.

  • Page 15: Live Viewing

    Live Viewing Once you connect to your camera, you will see the following screen. Below the icons and their functionality are defined. Snapshot Settings Shows the number of users Controls the selection of the video connected at any given time stream that is being viewed Controls the physical size of the streaming video on the browser screen Activates relay output...
  • Page 16 Live Viewing/cont. is icon opens the settings menu This icon takes a snapshot This icon shows system time, video resolution, and video refresh rate The bottom bar has an icon that allows you to select which stream you want to view. Stream 1 is usually the larger, better quality stream. Stream 2 is the smaller stream, generally used for mobile viewing The bottom bar has an icon shows how many users are connected to the IP camera.
  • Page 17 Configuration Select this icon to enter the settings menu Select this icon to go back to your live video feed...

  • Page 18: System Configuration

    System Configuration System Information: Use the number scheme below for a description of each item: MAC Address: (Media Access Control) address; This is a unique identifier assigned to IP devices for communication with the network. Your IP camera is pre-set with a MAC address Server name: Select to edit the camera name LED Indicator:...

  • Page 19: User Management

    User Management User managment: This IP camera supports 3 different types of users. 1. Administrator 2. General 3. Anonymous Click “Yes” to allow anonymous user access Click “Add/Set” to add a user Click “Edit” to modify a user. When you click edit, the following window will pop up: (Shown below.) Add the username and password, and click “OK”...

  • Page 20: System Update

    System Update: This menu is used to perform the following functions: 1. Firmware Update: Channel Vision will update the firmware from time to time. By registering your IP camera, you have access to all firmware improvements and extended warranty options.
  • Page 21 Network Network Setup/IP Setting: This setting is for the external viewing of camera over the internet. Once set up, you will be able to view this camera from anywhere in the world. This IP camera supports DHCP and Static settings. If you are new to installing an IP camera, use #2 ( Static IP DHCP:...
  • Page 22 Network/cont Network/cont: IPV4: Below is an example of the IPV4 network settings menu. This is where you key in all of your IP information from your network. These settings must be entered correctly in order for the IP camera to be viewable over the network.
  • Page 23 2. Key in the DynDNS server name, username, and password 3. Set up the IP update refresh rate 4. Click “Apply” 5. If it updates to often, the IP will be blocked by DynDNS Channel Vision recommends you set it to update once per day (1,440 minutes)
  • Page 24 Network/cont Mail & FTP : Enter your Mail and FTP information into the menu below: Mail: Mail is a way the IP camera can send you an email when certain actions occur, for example motion, a contact closure on the sensor, etc. FTP: FTP is for uploading recorded files to a designated FTP site Please note: standard...
  • Page 25 Network/cont Network/cont, IPV6: Below is an example of the IPV6 network settings menu. This is where you key in all of your IP information from your network. These settings must be entered correctly in order for the IP camera to be viewable over the IPV6 network. To manually set your IPV6 address, select that option, and enter your address, gateway, and DNS server.
  • Page 26 ONVIF, Bonjour, LLTD ONVIF: (Open Network Video Interface Forum) ONVIF is a global and open industry forum with the goal to facilitate the development and use of a global open standard for the interface of physical IP-based security products The following ONVIF versions are supported: 1.01 1.02 , and 2.10...

  • Page 27: Video Settings

    Video Settings You can adjust the following items on this camera: Image Setting: Brightness: This adjusts the brightness level of the camera Contrast: This adjusts the difference in color and light between parts of an image Hue: This adjusts the hue of the camera Saturation: This adjusts the color saturation of the camera Sharpness:...
  • Page 28 Video Settings/cont. Video Setting: Click the drop down list to select Video System Streaming: Basic mode: 1. Resolution: There are 5 resolutions you can choose from. 1280x800, 1280x720, 640x480, 320x240, & 176x144 2. Quality: There are 5 levels you can adjust to: Best, High, Standard, Medium, &...
  • Page 29 Video Settings/cont. Streaming (Advanced Mode): 1. Resolution: There are 5 resolutions you can choose from. 1280x800 1280x720 640x480 20x240 176x144 2. Bitrate Control mode: There are 2 choices. CBR (Constant Bit Rate) and VBR (Variable Bit Rate) A. CBR: 32Kbps-8Mbps (The higher the CBR, the better your video quality will be) B.
  • Page 30 Video Settings/cont. Stream 2 Basic Mode): 1. Resolution: There are 5 resolutions you can choose from. 1280x800 1280x720 640x480 20x240 176x144 2. Quality: There are 5 levels you can adjust to: Best, High, Standard, Medium, & Low If you use the highest settings, the network streaming speed will be slower Also, if you record any files, the higher the quality, the larger the file will be 3.
  • Page 31 MJPEG (JPEG) is older 6. RTSP Path: RTSP output connecting route. 7. 3GPP Streaming Mode: 1. Enable or Disable 3GPP Streaming 2. 3GPP: 3GPP output name *Channel Vision recommends you use 176x144 resolution, 5FPS, MPEG4 format for 3GPP mode...
  • Page 32 Recommended Video Settings Below are a few examples of recommended settings, depending on the situation. 1. Viewing a stationary object, or area that does not receive a high amount of movement If the camera is looking at a stationary object, or an area that does not receive a lot of traffic or movement, the camera can be set to the highest settings.
  • Page 33 Recommended Video Settings/cont 3. Viewing on a slow internet connection If the IP Camera is installed on a network that does not have a very fast internet connection, or you are viewing on a network with limited bandwidth, the example below is recommended. 4.

  • Page 34: Event List

    Event List 1.) Event Setting: The purpose of this menu is to configure what the camera will do when an “event” is generated. 2.) Motion Detection The IP Camera allows 3 areas of motion detection. (Area Setting) When motion is triggered, they can send the video in the form of events to a specific mail address, transmit the live video to a remote FTP server, &...
  • Page 35 Event List/cont. 4.) Record Time Setting: Pre Alarm and Post Alarm setups for record start and end time when motion is detected, or to trigger a relay. Note: Pre/Post Alarm record time based on record time setting and IP Camera's built-in memory. The ability to store data is limited, so if the video quality is set very high, this will cause a drop in the recorded FPS.
  • Page 36 Schedule 1.) Schedule: Complete schedule setup to tell the IP Camera when to record data. 2.) Snapshot: After enabling the snapshot function, user can select the storage location of the snapshot, the time of snapshot, and the file name of snapshot. Click “Enabled”...
  • Page 37 I/O Setting I/O Setting: The IP Camera supports 1 input/1 output. When the input is triggered, it can send the video to a specific e- mail address, (only one receiver email is allowed) transmit the video to a remote ftp server or trigger a relay. (N.O.

  • Page 38: Log List

    I/O Setting/cont I/O Setting: The IP Camera supports 1 input/1 output. When a input is triggered, it can send the video to a specific e- mail address, transmit the video to remote ftp server, or trigger a relay. *Maximum voltage allowed is 5vDC 50mA. INSTALLATION EXAMPLE: Floodlight Trigger a normally off (Normally Open) alarm siren that activates when an event/motion occur at the GND and D.O.
  • Page 39 SD Card SD Card: Below is a picture showing the location of the SD card in the IP camera Using the Micro SD card could affect the frame rate of the video. Make sure the Micro SD card is pushed into the slot completely. The capacity of the SD card is shown in the SD card menu.

  • Page 40: Port Forwarding

    Port Forwarding In order to view the IP camera from outside of your home or business network, port forwarding configuration will be required in your router. Port Forwarding TP-Link Routers In the example below, there is a IP camera running on port 8002 on the LAN.

  • Page 41: Upnp Port Forwarding

    IP Camera. Generally unused, not required Default is 80 Go to www.channelvision.com for detailed port forwarding, DDNS service, & Channel Vision iPhone and iPad app. iPod and iPad are trademarks of Apple Inc., registered in the U.S. and other countries.

  • Page 42: Specifications

    6533 Specifications CPU: Arm 9, 32 bit RISC RAM: 128MB Flash: 16MB Image Sensor: 1/4” 2 Mega-Pixel CMOS sensor Sensitivity: 1.0 Lux @ 30fps Shutter Time: 1/5 - 1/10,000 sec Lens Type: 4.2mm@F1.6 I/O: 1 Digital Input, 1 Digital Output Power Over Ethernet: Yes, 48V power consumption, Max 2.8W...
  • Page 43 Channel Vision products are not intended for use in medical, lifesaving, life sustaining or critical environment applications. Channel Vision customers using or selling Channel Vision products for use in such applications do so at their own risk and agree to fully indemnify Channel Vision for any damages resulting from such improper use or sale.
