Specifications:
Image Sensor:
Sony 1/3" Super HAD
Picture Elements:
NTSC: 768x494
Resolution:
540 lines
S/N Ratio:
More than 48 dB
Min Illumination:
0.02 LUX @ F2.0
Electronic Shutter:
1/60s - 1/100,000s, ON/OFF Switch-able
Iris Control:
Built-in DC Drive Iris Control
Flickerless Mode:
1/60s ON/OFF switchable
Gain Control:
High/Low switchable
Auto White Balance:
Color Temperature: 2500K-9500K
Back Light Comp.:
ON/OFF switchable
Gamma Characteristic:
0.45
Camera Lens:
Vari-Focal with DC Drive Iris Lens
Focal Length & App. Ratio:
3.7mm-12mm, F1.6-3.0
Angle Field of View:
Wide:H83.9°V61.9°, Tele:H23.0°V17.9°
Sync. System:
Internal, Negative sync.
Power Requirements:
12VDC
Power Consumption:
145 mA
Video Output:
1 Vp-p @ 75 ohms
Dimensions:
dia. 4.20", Height 3.56"
Operating Temp:
-10°C to 50°C (14°F to 122°F)
CHANNEL VISION
Limited Warranty
Channel Vision Technology will repair or replace any defect in material or workmanship which occurs
during normal use of this product with new or rebuilt parts, free of charge in the USA, for two years from
the date of original purchase. This is a no hassle warranty with no mail in warranty card needed. This
warranty does not cover damages in shipment, failures caused by other products not supplied by Channel
Vision Technology, or failures due to accident, misuse, abuse, or alteration of the equipment. This warranty
is extended only to the original purchaser, and a purchase receipt, invoice, or other proof of original
purchase date will be required before warranty repairs are provided.
Mail in service can be obtained during the warranty period by calling (800) 840-0288 toll free. A Return
Authorization number must be obtained in advance and can be marked on the outside of the shipping
carton.
This warranty gives you specific legal rights and you may have other rights (which vary from state to state).
If a problem with this product develops during or after the warranty period, please contact Channel Vision
Technology, your dealer or any factory-authorized service center.
Specifications subject to change without notice.
500-138 Rev D
6105

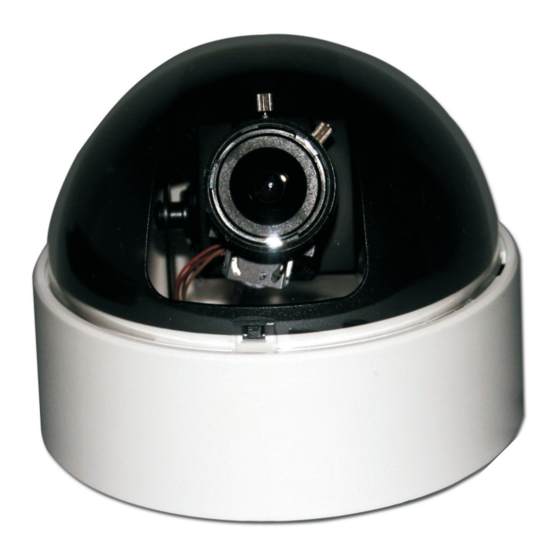

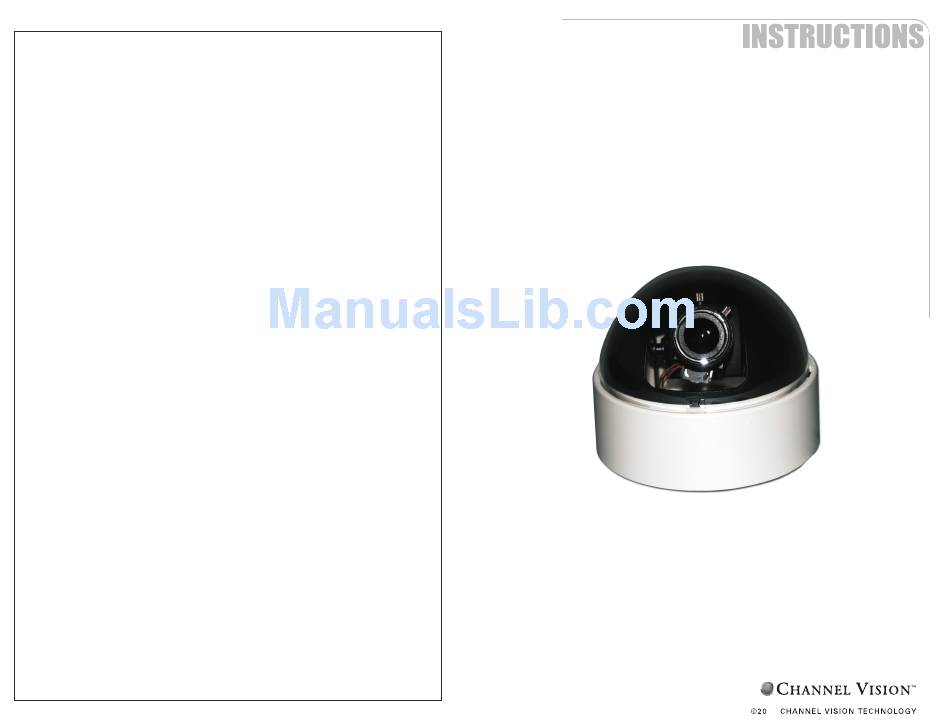

Medium Color Dome Camera
1
0
Advertisement
Table of Contents
Related Manuals for Channel Vision 6105
Summary of Contents for Channel Vision 6105
- Page 1 This warranty gives you specific legal rights and you may have other rights (which vary from state to state). If a problem with this product develops during or after the warranty period, please contact Channel Vision Technology, your dealer or any factory-authorized service center.
- Page 2 Power Supply Rotate 3. Rotate camera ring so that the image appears right side up Model 6105 3. Adjust camera settings 4. Attach dome FL: Flicker Lens ON/OFF AGC: Auto Gain Control High/Low AES: Auto Electronic Shutter ON/OFF BLC: Back Light Compensation ON/OFF...
