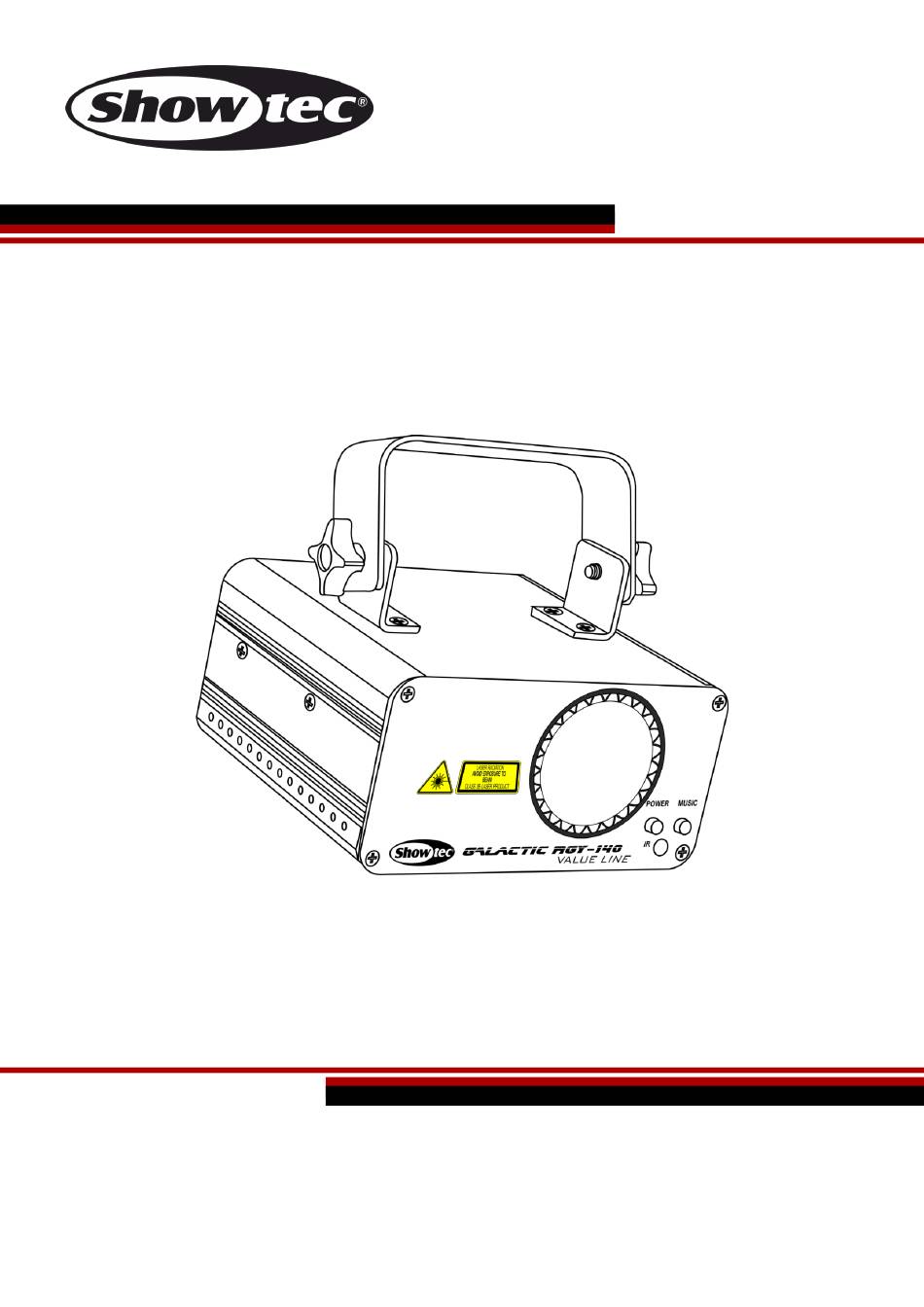

- Page 1 MANUAL ENGLISH Galactic RGY-140 MKII Ordercode: 51335 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Galactic RGY-140 MKII Table of contents Warning ....................................2 Unpacking Instructions ..............................2 Safety Instructions ................................. 3 Operating Determinations ............................5 Laser safety for a Class 3B Laser Product ......................... 5 Rigging .................................... 7 Connection with the mains............................7 Return Procedure ................................8 Claims .................................... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec Galactic RGY-140 MKII ● IEC Power cable (1,5 m) ●... -
Page 4: Safety Instructions
Galactic RGY-140 MKII Safety Instructions Every person involved with the installation, operation and maintenance of this device have to: ● be qualified ● follow the instructions of this manual Before the initial start-up, please make sure that there is no damage caused by transportation. Should there be any, consult your dealer and do not use the device. - Page 5 ● If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
Galactic RGY-140 MKII Operating Determinations ● This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. ● The minimum distance between light output and the illuminated surface must be bigger than 1 meter. - Page 7 Galactic RGY-140 MKII Product Classification and Manufacturing Label Identification Laser Classification Class 3B Cooling Cooling fans and TE Cooling Laser medium Wavelength 650nm / Red (LD GeAIAs); Output >100mW Wavelength 515nm / Green (DPSS Nd:YVO4); Output >60mW Output 160mW Beam Diameter <5mm at aperture...
-
Page 8: Rigging
Galactic RGY-140 MKII Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure: ●... -
Page 9: Return Procedure
Galactic RGY-140 MKII Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 10: Description Of The Device
Galactic RGY-140 MKII Description of the device Features The Showtec Galactic RGY-140 is a laser effect with high output and great effects. ● When using multiple units together, you can make a great and cost effective beam-show ● Sound-controlled via built-in microphone ●... -
Page 11: Overview
Galactic RGY-140 MKII Overview Fig. 01 01) Mounting bracket with inclination screws 02) Power LED indicator (Red) 03) Laser lens 04) IR remote sensor 05) Music-control LED indicator (Blue) Backside Fig. 02 06) 3-pin DMX signal connector OUT 07) Power switch ON/OFF... -
Page 12: Installation
Galactic RGY-140 MKII Installation Remove all packing materials from the Galactic. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 13: Control Modes
Galactic RGY-140 MKII Exclusion of liability Be aware that in some countries, there are additional regulations, regarding the use of laser devices. Therefore, we strongly advise you to verify your national laws with your authorities: We do not take any responsibility for eventual discrepancies, changes or adaptions regarding lawful use of laser devices. -
Page 14: Multiple Galactics (Master/Slave Mode)
Galactic RGY-140 MKII Multiple Galactics (Master/Slave Mode) 01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Plug the end of the electric mains power cord into a proper electric power supply socket. -
Page 15: Multiple Galactics (Dmx Control)
Galactic RGY-140 MKII Multiple Galactics (DMX Control) 01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Plug the end of the electric mains power cord into a proper electric power supply socket. -
Page 16: Fixture Linking
Galactic RGY-140 MKII Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 17: Control Panel
Galactic RGY-140 MKII Control Panel LED display FUNC button C) UP button DOWN button ENTER button Fig. 05 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it, the controller will display the saved DMX address the next time.) -
Page 18: Menu Overview
Galactic RGY-140 MKII Menu Overview The Galactic RGY-140 will only show its version number at start-up ! Main Menu Options Auto run programs/Sound-controlled programs Sound sensitivity DMX address Slave mode IR remote control mode Test mode You can only change a certain setting when the display is blinking. -
Page 19: Auto Run Programs/Sound-Controlled Programs
Galactic RGY-140 MKII 1. Auto run programs/Sound-controlled programs In this menu you can start several Auto run or Sound-controlled programs. 01) Press the FUNC button until the display shows 02) Press the UP/DOWN buttons to choose between 03) Choose the desired built-in program and press the ENTER button to confirm. -
Page 20: Remote Control
Galactic RGY-140 MKII Remote Control Button Function Description On / Off Press the ON/OFF button for 2 seconds to activate the different modes except the Slave mode. Auto programs mode Press the button to activate Auto program. Sound-controlled Mode Press the button to activate Sound-controlled program, if the device receives a sound signal, the Music LED indicator on the front will blink (Blue LED). -
Page 21: Dmx Channels
Galactic RGY-140 MKII DMX Channels 10 Channels Channel 1 – Auto Programs / Sound programs 0-29 Auto program Red, Green and Yellow 30-59 Auto program Green 60-89 Auto program Red 90-119 Auto programYellow 120-149 Sound program Red, Green and Yellow... - Page 22 Galactic RGY-140 MKII Channel 8 – Y-axis Rolling 0-127 0-359 degree fixed Y-Axis rolling 128-191 Counterclockwise rolling from slow to fast 192-255 Clockwise rolling from slow to fast Channel 9 – X-axis Rolling 0-127 0-359 degree fixed X-Axis rolling 128-191...
-
Page 23: Patterns
Galactic RGY-140 MKII Patterns Ordercode: 51335... -
Page 24: Maintenance
Galactic RGY-140 MKII Maintenance The Showtec Galactic requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth. Wipe the front glass panel clean with glass cleaner and a soft cloth. - Page 25 Galactic RGY-140 MKII Problem Probable cause(s) Remedy One or more No power to the fixture ● Check that power is switched on and fixtures do not cables are plugged in function at all Primary fuse blown ● Replace fuse Fixtures reset The controller is not connected ●...
-
Page 26: Product Specifications
Galactic RGY-140 MKII Product Specifications Model: Galactic RGY-140 Input Voltage: 100-240V AC, 50/60Hz Continuous Power: Fuse: T1A/250V Dimensions: 145 x 160 x 155 mm (LxWxH) (incl. bracket) Weight: 1,3 kg Operation and Programming Signal pin OUT: Pin 1 (earth), pin 2 (-), pin 3 (+) -
Page 27: Dimensions
Galactic RGY-140 MKII Dimensions Ordercode: 51335... - Page 28 ©2019 Showtec...
