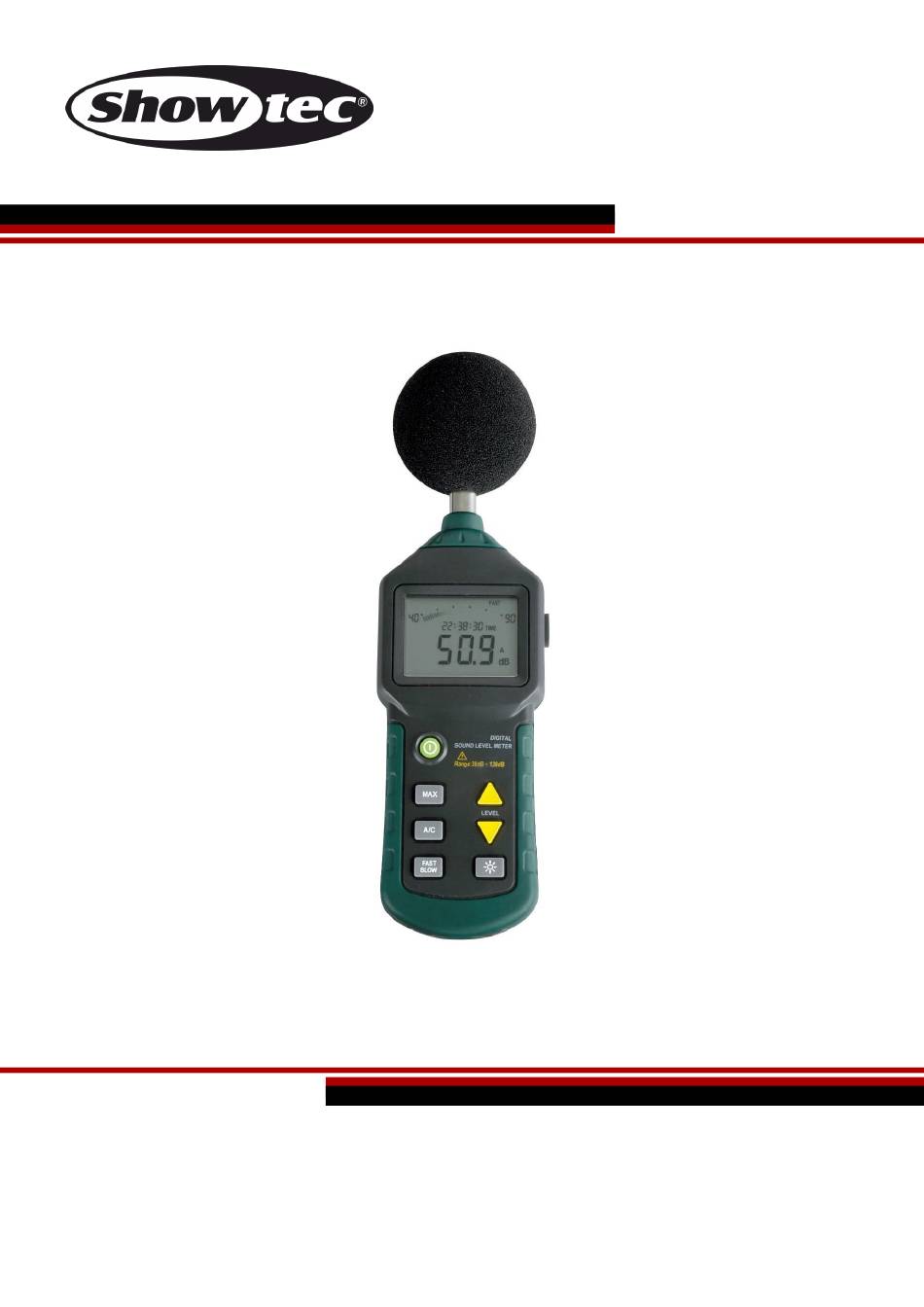

- Page 1 MANUAL ENGLISH Digital Sound Level Meter V1 Ordercode: 91004 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Digital Sound Level Meter Table of contents Warning ....................................2 Unpacking Instructions ..............................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Overview ..................................6 Installation ................................... 6 Set Up and Operation ............................... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec Digital Sound Level Meter 1 x carrying case ... -
Page 4: Operating Determinations
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 5: Return Procedure
Digital Sound Level Meter Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labelled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.com and request an RMA prior to shipping the... -
Page 6: Description Of The Device
Digital Sound Level Meter Description of the device Features Below, the main features of the Showtec Sound Level Meter. Power supply: 6 x 1,5V AAA battery LCD digital display Analog bar indicator Wide dynamic range ... -
Page 7: Overview
Digital Sound Level Meter Overview Fig. 01 01) Microphone 06) Fast/Slow 02) LCD Display 07) AC 03) Up Button 08) Max 04) Down Button 09) ON/OFF 05) Backlight Installation Remove all packing materials from the Sound Level Meter. Check if all foam and plastic padding is removed. -
Page 8: Set Up And Operation
Digital Sound Level Meter Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Make sure that you use 1,5V AAA alkaline batteries. Please use it according to the following usage. Environment conditions: Altitude: less than 2000 meters. -
Page 9: Replacing Batteries
Digital Sound Level Meter Record and storage of measured data 01) To save real-time data in the meter, press the “FAST∕SLOW” button for 2 seconds, until the “RECORD” symbol appears on the display. At the same time, the meter will start to record real-time data until its memory is full. -
Page 10: Maintenance
03) If you are unable to determine the cause of the problem, do not open the Sound Level Meter, as this may damage the unit and the warranty will become void. 04) Return the device to your Showtec dealer. Ordercode: 91004... -
Page 11: Product Specifications
Digital Sound Level Meter Product Specifications Model: Digital Sound Level Meter Frequency: 20 Hz - 8 kHz Hz Sampling Rate: 2 times/s Resolution: 0,1dB Accuracy: ±1.5dB Response frequency: 31.5Hz — 8kHz Dynamic range: 50dB Frequency weighting: Time weighting: FAST 125ms, SLOW 1sec Microphone: Electret Condenser microphone Digital display:... -
Page 12: Dimensions
Digital Sound Level Meter Dimensions Design and product specifications are subject to change without prior notice. www.Showtec.info Website: service@highlite.com Email: Ordercode: 91004... -
Page 13: Notes
Digital Sound Level Meter Notes Ordercode: 91004... - Page 14 Digital Sound Level Meter Ordercode: 91004...
- Page 15 Digital Sound Level Meter Ordercode: 91004...
- Page 16 ©2020 Showtec...
