CONFIGURING THE RELAY
1. Switching point (display required)
• Install jumper to pins labeled sw.p. (switching point).
(See Figure 5)
• Press down on the pushbutton (joystick) to select the switching
point of the relay. The chosen value (fpm) is shown on the display.
• Remove and store the jumper after the con guration is
completed.
2. Hysteresis (display required)
• Install jumper to pins labeled hyst. (hysteresis).
(See Figure 5)
• Press down on the pushbutton (joystick) to select the hysteresis of
the relay switching point. The chosen value (fpm) is shown on the
display.
• Remove and store the jumper after the con guration is
completed.
See Dimensional Drawing Above
Copyright HK Instruments
RELAY MODE ONLY STEP 4 FIGURE 3

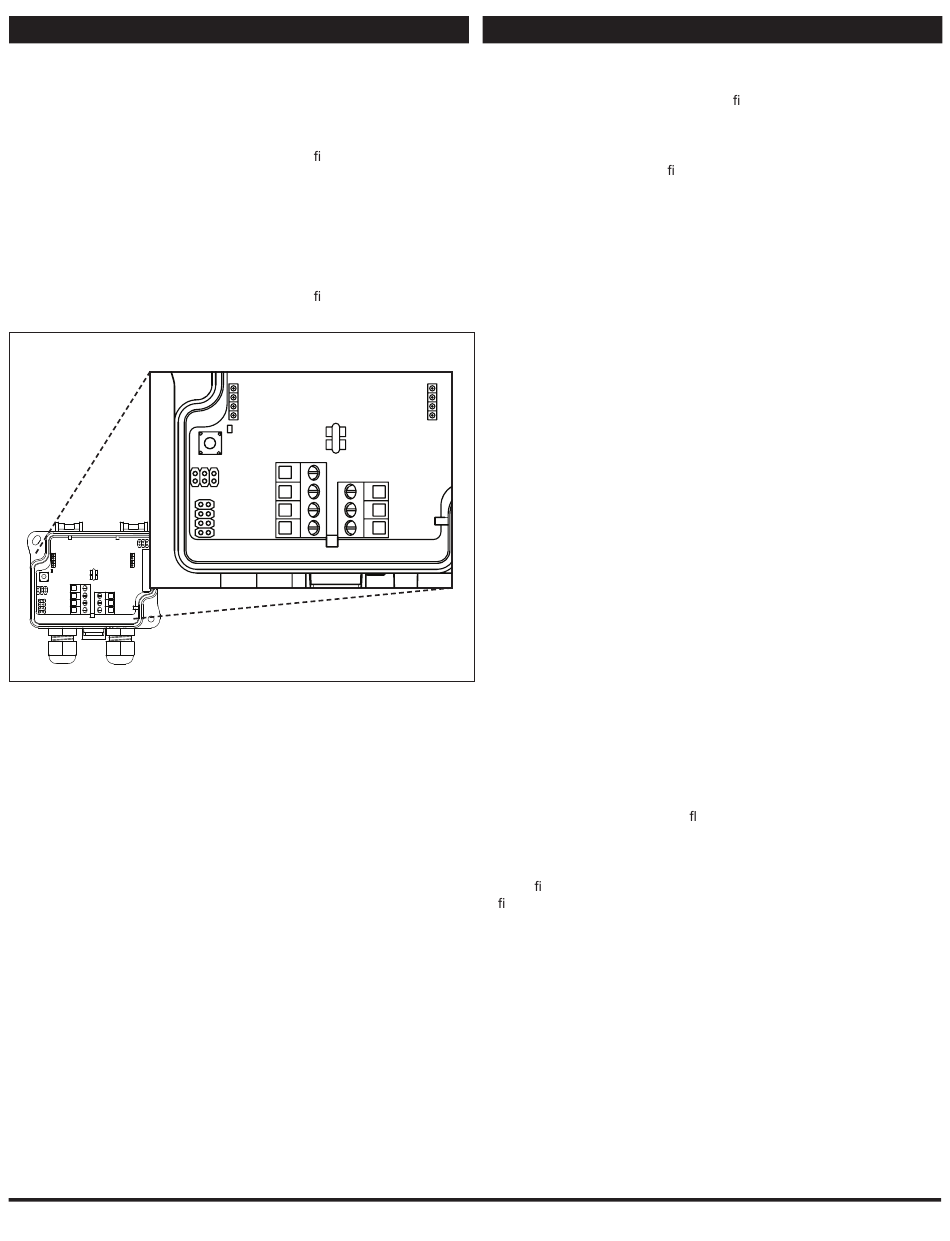

Figure 5
Push Button
T Tout
v
vout
V mA
J1
24V
J2
sw.p.
GND
hyst.
