HK Instruments AVT Series Installation Instructions page 3

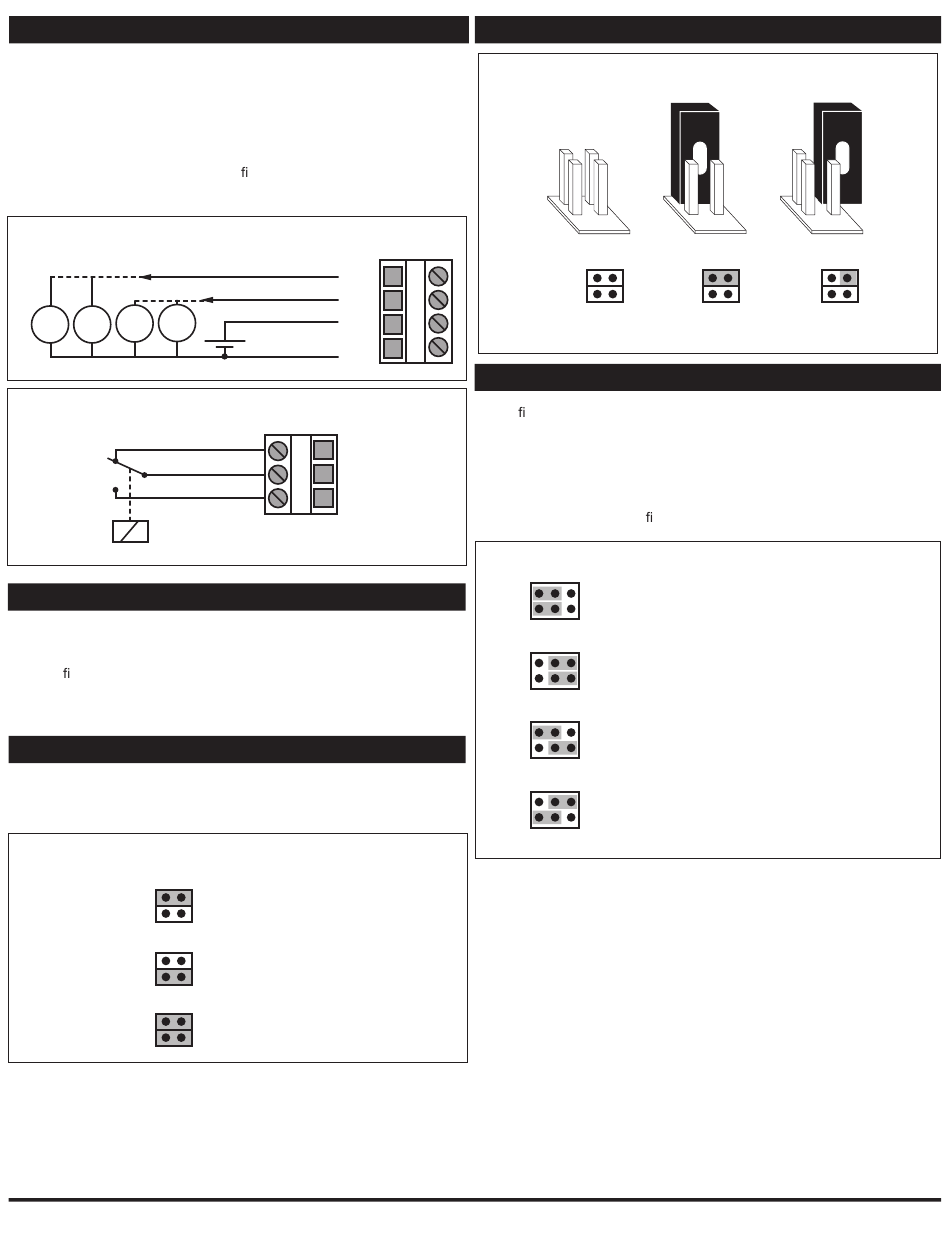

WIRING DIAGRAMS
For CE compliance, a properly grounded shielding cable is
required.
1) Unscrew strain relief and route cable(s). Use the strain relief on
left for power in and signal out (Tout/vout) and the strain relief on
right for relay.
2) Connect the wires as shown in gure 2a and 2b.
3) Tighten the strain relief.
Figure 2a - Wiring Diagram: Tout & Vout
Output 0...10V / 4...20mA (temperature)
Output 0...10V / 4...20mA (velocity)
V A
V A
Figure 2b - Wiring Diagram Relay Output
CONFIGURATION
1) Select the desired measurement range (see step 3
2) Select the desired measurement mode (see step 4)
3) Con gure the relay (optional) (see step 5)
The device is now ready to use.
SEL. THE MEASUREMENT RANGE
Select the measurement range by installing jumpers as shown in
Figure Z. (See Figure 3a-3b – Jumper settings)
Range 10 (0-2000 fpm)
Copyright HK Instruments
STEP 2 FIGURE 3
Tout
vout
24V
+
Power Supply
24VDC / 24VAC
GND
NC
COM
NO
STEP 3
Figure 3a
Range 2 (0-400 fpm)
J1 Jumper (J1): Installed
J2 Jumper (J2): Not Installed
J1 Jumper (J1): Not Installed
J2 Jumper (J2): Installed
Range 20 (0-4000 fpm)
J1 Jumper (J1): Installed
J2 Jumper (J2): Installed
SEL. THE MEASUREMENT RANGE
Figure 3b - Jumper Installation
No Jumper
Circuit Open
(Grey color indicates that a jumper is installed)
SEL. THE MEASUREMENT MODE
Con gure the outputs:
• Temperature output (Tout)
• Velocity output (vout)
Select the output mode, Current (mA) or Voltage (V), by installing
jumpers as shown in Figure 4. Both outputs, Temperature (T)
and Velocity (v), are con gured separately.
T Temperature Output (Tout): T=Voltage (V)
v Velocity Output (vout): v=Voltage (V)
V mA
T Temperature Output (Tout): T=Current (mA)
v
Velocity Output (vout): v=Current (mA)
V mA
T Temperature Output (Tout): T=Voltage (V)
v Velocity Output (vout): v=Current (mA)
V mA
T Temperature Output (Tout): T=Current (mA)
v
Velocity Output (vout): v=Voltage (V)
V mA
CONTINUED
Jumper Installed Jumper Stored
Cicuit Closed
STEP 4
Figure 4
Installation Version 1.0 2012
