Summary of Contents for Sena OUTSTAR

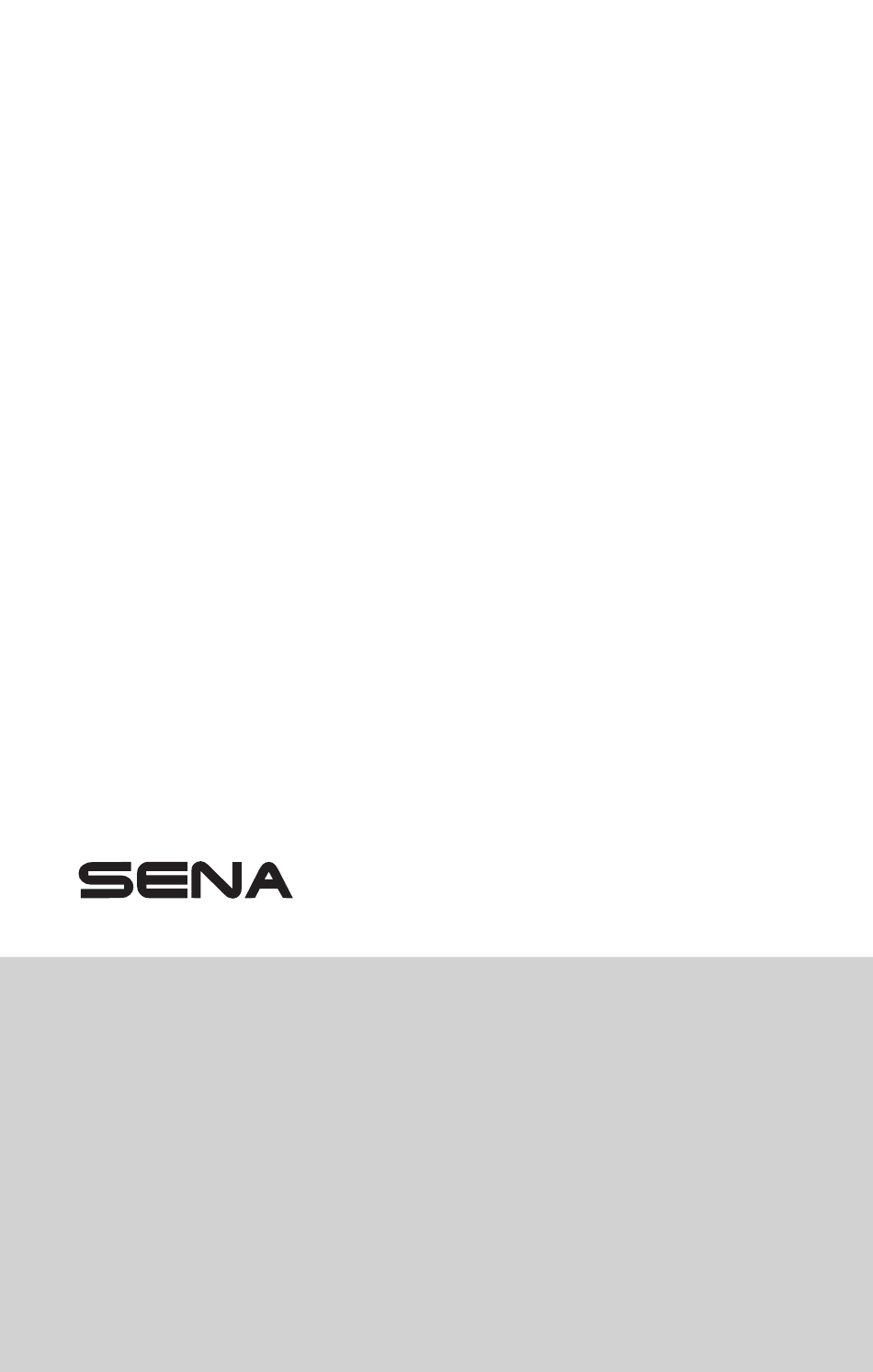

- Page 1 1.0.0_EN_March2020...
- Page 2 Bluetooth helmet ® USER’S GUIDE 1.0.0 ENGLISH...
- Page 3 RIDE CONNECTED Blast your favorite tunes, talk over the intercom with your buddies, hear directions from your GPS and more, all through your OUTSTAR Bluetooth ® Open-Face Helmet. With built-in Bluetooth ® capabilities, HD Intercom, technology has never felt so minimal or freeing.
- Page 4 Visit sena.com to see how to update your product. 2. Users can follow Sena on Facebook, YouTube, Twitter and Instagram to receive the most up to date information on products, helpful tips and all other announcements regarding Sena products.
-
Page 5: Table Of Contents
TABLE OF CONTENTS ABOUT THE OUTSTAR BLUETOOTH HELMET 1.1 General Information 1.2 Product Details 1.2.1 Bluetooth System Button 1.2.2 Detachable Inner Parts 1.3 Package Contents 1.4 Wearing the Helmet 1.4.1 Putting on the Helmet 1.4.2 Removing the Helmet 1.4.3 Removing the Shield Visor 1.4.4 Installing the Shield Visor... - Page 6 2.5.1 Sena Device Manager PAIRING THE BLUETOOTH SYSTEM wITH OTHER BLUETOOTH DEvICES 3.1 Mobile Phone Pairing 3.1.1 Initially Pairing the OUTSTAR 3.1.2 Pairing When the OUTSTAR is Turned Off 3.2 Second Mobile Phone Pairing MOBILE PHONE USAGE 4.1 Making and Answering Calls 4.2 Speed Dialing...
- Page 7 USING THE FM RADIO 7.1 FM Radio Operation GENERAL SETTINGS 8.1 Function Priority 8.2 Configuration Menu 8.2.1 Assigning Speed Dial 8.2.2 VOX Phone (Default: Enable) 8.2.3 Voice Prompt (Default: Enable) 8.2.4 Delete All Pairings 8.3 Firmware Upgrades TROUBLESHOOTING 9.1 Fault Reset 9.2 Factory Reset 10.
-
Page 8: About The Outstar Bluetooth Helmet
The contents of this helmet User’s Guide are subjected to change without notice. Its illustration may differ from the actual product. The copyrights for the User’s Guide belong to Sena Technologies, Inc. Reproduction or copying of the User’s Guide without permission is strictly prohibited. -
Page 9: Product Details
ABOUT THE OUTSTAR BLUETOOTH HELMET 1.2 Product Details No. Name No. Name Shield Visor Sun Visor Lever Sun Visor Shield Ratchet Speakers Rear Vent Chinstrap Shell Microphone Top Vent Jog Dial 3 4 5 No. Name No. Name Strap Adjuster DC Power Charging &... -
Page 10: Bluetooth System Button
ABOUT THE OUTSTAR BLUETOOTH HELMET 1.2.1 Bluetooth System Button Rotate/Rotate while Pressing Tap/Press and Hold 1.2.2 Detachable Inner Parts Inner Pad Cheek Pad (R) Cheek Pad (L) -
Page 11: Package Contents
ABOUT THE OUTSTAR BLUETOOTH HELMET 1.3 Package Contents Helmet Helmet Pouch Boom USB Power & Reflex Microphone Data Cable Stickers (4) Sponges (2) 1.4 Wearing the Helmet 1.4.1 Putting on the Helmet 1. Unfasten the chinstrap by using the retention system. -
Page 12: Removing The Helmet
ABOUT THE OUTSTAR BLUETOOTH HELMET 1.4.2 Removing the Helmet 1. Unfasten the chinstrap by using the retention system. 2. Gently pull the padded chinstrap outward and slide the helmet off your head. Note: Fastening the chinstrap after removing the helmet will help avoid scratching surfaces it’s placed upon. -
Page 13: Removing The Shield Visor
ABOUT THE OUTSTAR BLUETOOTH HELMET 1.4.3 Removing the Shield visor Hook A 1. Unlatch the left side of the shield visor to detach it from hook A, and open the shield visor to the fully opened position. 2. Pull the shield visor outward while pushing the shield ratchet lever upward. -
Page 14: Installing The Shield Visor
ABOUT THE OUTSTAR BLUETOOTH HELMET 1.4.4 Installing the Shield visor Hook B Hook D Hook C Hook E 1. Align hook B, hook C, hook D, and hook E to the shield ratchet as shown in the illustration above. 2. Insert hooks B-E into the shield ratchet while pushing the shield ratchet lever upward. -
Page 15: Removing The Cheek Pads
ABOUT THE OUTSTAR BLUETOOTH HELMET 1.4.5 Removing the Cheek Pads 1. Unsnap the three fasteners of the cheek pad from the helmet. 2. Remove the cheek pad by pulling it upward. 3. Repeat the process on the opposite side. -
Page 16: Installing The Cheek Pads
ABOUT THE OUTSTAR BLUETOOTH HELMET 1.4.6 Installing the Cheek Pads 1. Pass the chinstrap through the hole of the cheek pad and insert the cheek pad’s plastic plate into the space between the shell and EPS. 2. Snap the three fasteners of the cheek pad into place. -
Page 17: Removing The Inner Pad
ABOUT THE OUTSTAR BLUETOOTH HELMET 1.4.7 Removing the Inner Pad 1. Unsnap the two rear buttons of the inner pad. 2. Lift the pad upward and place your fingers under the plastic plate in the front section. Then, remove the... -
Page 18: Installing The Inner Pad
ABOUT THE OUTSTAR BLUETOOTH HELMET 1.4.8 Installing the Inner Pad 1. Align and install the plastic plate on the four sleeves of the front section. 2. Snap the two rear buttons of the inner pad into place. -
Page 19: Removing The Sun Visor
ABOUT THE OUTSTAR BLUETOOTH HELMET 1.4.9 Removing the Sun visor 1. Slide the sun visor lever in the direction shown in the illustration above to lower the sun visor. 2. Pull one side of the visor in the direction shown in the illustration above. -
Page 20: Installing The Sun Visor
ABOUT THE OUTSTAR BLUETOOTH HELMET 1.4.10 Installing the Sun visor 1. Insert the sun visor tab into its slot until you hear a click. 2. Repeat the process on the opposite side. -
Page 21: Pre-Ride Helmet Inspection
ABOUT THE OUTSTAR BLUETOOTH HELMET 1.5 Pre-Ride Helmet Inspection 1.5.1 Checking the Exterior Check the helmet regularly for damage. Small, superficial scratches will not impair the helmet’s protective qualities. In the case of more serious damage (cracks, dents, flaking and cracking paint, etc.), the helmet should no longer be used. -
Page 22: Getting Started: Bluetooth System
2.2 Charging The Bluetooth system can be charged using many common methods via the supplied USB power & data cable: the OUTSTAR is compatible with 5 V input USB- charged devices only. Depending upon the charging method, the Bluetooth system will be fully charged in about 3 hours. -
Page 23: Checking The Battery Level
The Bluetooth system automatically turns off during charging. • Any 3rd party USB charger can be used with Sena products if the charger is approved by either the FCC, CE, IC or other locally approved agencies that Sena accepts. -
Page 24: Downloadable Sena Software
Bluetooth system can pair with multiple Bluetooth devices such as mobile phone, MP3 player, GPS or Sena SR10 Two-Way Radio Adapter via Mobile Phone Pairing, Second Mobile Phone Pairing. The Bluetooth system can also be paired with another Sena headset or Bluetooth system. -
Page 25: Mobile Phone Pairing
1. Rotate while pressing the Jog dial clockwise for 1 second. You will hear a voice prompt, “Phone pairing”. 2. Select the OUTSTAR in the list of the devices detected on the mobile phone. Enter 0000 for the PIN. Some mobile phones may not ask for the PIN. -
Page 26: Second Mobile Phone Pairing
MOBILE PHONE USAGE 3. Select the OUTSTAR in the list of the devices detected on the mobile phone. Enter 0000 for the PIN. Some mobile phones may not ask for the PIN. 3.2 Second Mobile Phone Pairing Pairing with Additional Mobile Phone, GPS, MP3 Players or Sena SR10 Two-way Radio Adapter. -
Page 27: Speed Dialing
MOBILE PHONE USAGE 4.2 Speed Dialing 4.2.1 Assigning Speed Dial Presets You need to assign speed dial numbers before using the speed dial. Speed Dial Presets could be assigned in the settings menu. 4.2.2 Using Speed Dial Presets 1. Rotate while pressing the Jog dial counterclockwise. 2. -
Page 28: Bluetooth Intercom
5. BLUETOOTH INTERCOM 5.1 Intercom Pairing Up to three other people can be paired with the helmet for Bluetooth intercom conversations. Intercom Intercom Intercom Friend B Friend C Friend D 1. Rotate while pressing the Jog dial clockwise for 5 seconds when the two helmet (A and B) are turned off. - Page 29 BLUETOOTH INTERCOM Last-Come, First-Served Intercom Friend 1 Intercom Intercom Friend 1 Friend 2 Intercom Intercom Intercom Friend 1 Friend 2 Friend 3...
-
Page 30: Stereo Music
6. STEREO MUSIC 6.1 Playing Music with Bluetooth Devices • Play or Pause music Press and hold the Jog dial for 1 second. • Track forward/back Rotate while pressing the Jog dial clockwise or counterclockwise. USING THE FM RADIO FM Radio Operation •... -
Page 31: General Settings
8. GENERAL SETTINGS 8.1 Function Priority The Bluetooth system operates in the following order of priority: (highest) Mobile phone Bluetooth Intercom FM Radio (lowest) Bluetooth stereo music A lower priority function is always interrupted by a higher priority function. 8.2 Configuration Menu You can set the configuration of the Bluetooth system by the voice menu instruction described below. -
Page 32: Assigning Speed Dial
GENERAL SETTINGS 8.2.1 Assigning Speed Dial 1. To assign a phone number as a speed dial, rotate the Jog dial until you hear a voice prompt, “Speed dial”. 2. Tap the Jog dial, and you will hear a voice prompt, “Speed dial one”... -
Page 33: Delete All Pairings
Jog dial to confirm. 8.3 Firmware Upgrades The Bluetooth system supports firmware upgrades. You can update the firmware using the Sena Device Manager. Please visit Sena Bluetooth website at sena.com to check the latest software downloads. -
Page 34: Maintenance And Care
10. MAINTENANCE AND CARE 10.1 Outer Shell Use a soft cloth and a small amount of water to remove bugs from the exterior. Note: Never use gasoline, diesel fuel, thinners or solvents to clean the helmet. These substances can cause serious damage to the helmet, even though the resulting damage may not be visible. -
Page 35: Quick Reference
QUICK REFERENCE Type Operation Button Command Rotate while pressing the Jog dial Power on clockwise for 1 second Basic Press and hold the Jog dial for Power off Function 5 seconds Volume Rotate the Jog dial adjustment Answer & end Tap the Jog dial phone call Rotate while pressing the Jog dial... - Page 36 Hero3 and Hero4 ® allowing for Bluetooth capabilities. The Bluetooth word mark and logos are owned by the ® Bluetooth SIG, Inc. and any use of such marks by Sena is under license. iPhone and iPod touch are registered ® ®...
