Shure Microflex MX400 Series User Manual
Gooseneck microphones
Hide thumbs
Also See for Microflex MX400 Series:
- User manual (14 pages) ,
- Online user's manual (11 pages) ,
- User manual (10 pages)
Subscribe to Our Youtube Channel
Related Manuals for Shure Microflex MX400 Series
Summary of Contents for Shure Microflex MX400 Series
- Page 1 MX412, MX418, MX424 Gooseneck Microphones Online user guide for Shure Microflex MX400 Series miniature gooseneck-mounted electret condenser microphones. Version: 5.1 (2021-C)
-
Page 2: Table Of Contents
Shure Incorporated Table of Contents Microphone Placement MX412, MX418, MX424 Gooseneck Microphones Permanent Installation General Description Flange Shock Mount Interchangeable Cartridges Specifications Snap-Fit Windscreen Certifications Preamp Gain 2/12... -
Page 3: Mx412, Mx418, Mx424 Gooseneck Microphones

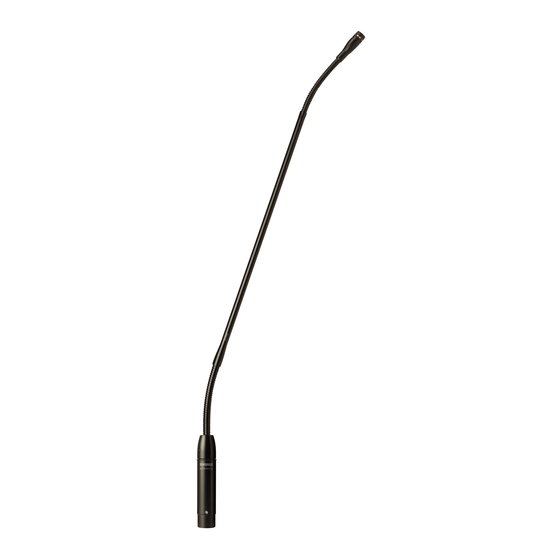

MX412, MX418, MX424 Gooseneck Microphones General Description ® The Shure Microflex MX412, MX418, and MX424 microphones are miniature gooseneck-mounted electret condenser micro- phones designed primarily for speech and vocal pickup. They can be mounted on lecterns, pulpits, or conference tables. All models include a preamplifier and are available with interchangeable cartridges. •... - Page 4 Shure Incorporated 4/12...
-
Page 5: Snap-Fit Windscreen
• Provides 30 dB of "pop" protection. Preamp Gain If necessary, the preamplifier gain can be reduced by 12 dB. Contact an authorized Shure service center for information. Microphone Placement • Aim the microphone toward the desired source, such as the talker. -
Page 6: Shock Mount
Shure Incorporated Shock Mount Drill a 44 mm (1-3/4 in.) diameter hole in desired mounting surface. Mark and drill starter holes for screws, using shock mount as a template. Secure shock mount to mounting surface with screws. Thread the supplied adapter onto the microphone before inserting it into the shock mount. -
Page 7: Specifications
Shure Incorporated Specifications Type Electret Condenser Frequency Response 50–17000 Hz Polar Pattern MX412/C, MX418/C, MX424/C Cardioid MX412/S, MX418/S, MX424/S Supercardioid Output Impedance 180 Ω Output Configuration Active Balanced 7/12... - Page 8 Shure Incorporated Sensitivity @ 1 kHz, open circuit voltage Cardioid –35 dBV/Pa(18 mV) Supercardioid –34 dBV/Pa(21 mV) Maximum SPL 1 kHz at 1% THD, 1 kΩ load Cardioid 124 dB Supercardioid 123 dB Self Noise A-weighted Cardioid 28 dB SPL Supercardioid 27 dB SPL Signal-to-Noise Ratio Ref. 94 dB SPL at 1 kHz Cardioid 66 dB...
- Page 9 Shure Incorporated Power Requirements 11–52 V DC, 2.0 mA 9/12...
- Page 10 Shure Incorporated 10/12...
- Page 11 Shure Incorporated 11/12...
-
Page 12: Certifications
Meets essential requirements of all applicable European Directives. Eligible for CE marking. The CE Declaration of Conformity can be obtained from Shure Incorporated or any of its European representatives. For contact information please visit www.shure.com The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance...
