Instruction Manual
Radio control devices T3, T5 and T7.
version 1.5 Sept. 14

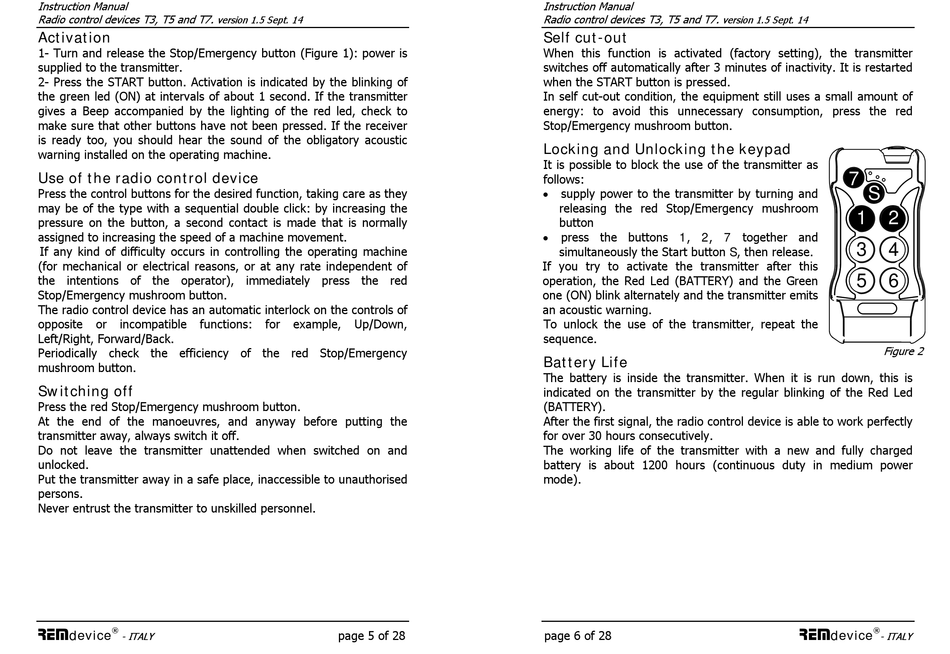

Activation
1- Turn and release the Stop/Emergency button (Figure 1): power is
supplied to the transmitter.
2- Press the START button. Activation is indicated by the blinking of
the green led (ON) at intervals of about 1 second. If the transmitter
gives a Beep accompanied by the lighting of the red led, check to
make sure that other buttons have not been pressed. If the receiver
is ready too, you should hear the sound of the obligatory acoustic
warning installed on the operating machine.
Use of the radio control device
Press the control buttons for the desired function, taking care as they
may be of the type with a sequential double click: by increasing the
pressure on the button, a second contact is made that is normally
assigned to increasing the speed of a machine movement.
If any kind of difficulty occurs in controlling the operating machine
(for mechanical or electrical reasons, or at any rate independent of
the intentions of the operator), immediately press the red
Stop/Emergency mushroom button.
The radio control device has an automatic interlock on the controls of
opposite or incompatible functions:
Left/Right, Forward/Back.
Periodically check the efficiency of the red Stop/Emergency
mushroom button.
Switching off
Press the red Stop/Emergency mushroom button.
At the end of the manoeuvres, and anyway before putting the
transmitter away, always switch it off.
Do not leave the transmitter unattended when switched on and
unlocked.
Put the transmitter away in a safe place, inaccessible to unauthorised
persons.
Never entrust the transmitter to unskilled personnel.
REM
®
device
- ITALY
for example, Up/Down,
page 5 of 28
Instruction Manual
Radio control devices T3, T5 and T7.
Self cut-out
When this function is activated (factory setting), the transmitter
switches off automatically after 3 minutes of inactivity. It is restarted
when the START button is pressed.
In self cut-out condition, the equipment still uses a small amount of
energy: to avoid this unnecessary consumption, press the red
Stop/Emergency mushroom button.
Locking and Unlocking the keypad
It is possible to block the use of the transmitter as
follows:
• supply power to the transmitter by turning and
releasing the red Stop/Emergency mushroom
button
• press the buttons 1, 2, 7 together and
simultaneously the Start button S, then release.
If you try to activate the transmitter after this
operation, the Red Led (BATTERY) and the Green
one (ON) blink alternately and the transmitter emits
an acoustic warning.
To unlock the use of the transmitter, repeat the
sequence.
Battery Life
The battery is inside the transmitter. When it is run down, this is
indicated on the transmitter by the regular blinking of the Red Led
(BATTERY).
After the first signal, the radio control device is able to work perfectly
for over 30 hours consecutively.
The working life of the transmitter with a new and fully charged
battery is about 1200 hours (continuous duty in medium power
mode).
page 6 of 28
version 1.5 Sept. 14
7
S
1 2
3 4
5 6
Figure 2
