Instruction Manual

Radio control devices T3, T5 and T7.
version 1.5 Sept. 14

DESCRIPTION

The remote control comprises a transmitter unit, which can be a T3,
T5 or T7 model and Receiver, which can be the RubyBox or EcoBox
Rx-DIN T7 model.

HOW TO USE THE DEVICE CORRECTLY AND SAFELY

The remote control has been designed strictly for use by qualified
operators only, who are required to first read the instructions on how
to use the device and comply with the safety standards prescribed by
the law in the area where work is carried out.
The device's installation on heavy machinery must be carried out by
qualified technical personnel who are familiar with the functional
features of both the remote control and the machinery and are
authorized to fill out the form attesting to its correct installation.
REMdevice shall not be liable for bodily injury or damage to property
as a result of:
• misuse or inexpert use of the device
• incorrect wiring or electrical connections
• tampering
• changes to the remote control's design features
• replacement of parts with non-original spare parts
• failure to perform maintenance
• failure to replace worn, faulty or defective parts
• the device being used with its intrinsic safety features
disabled or its original features altered in any way.
Warning: This device works using radio signals. It can operate the machinery it is
connected to even if barriers are blocking its line of sight, such as brick walls, metal or
wooden panels, other machinery, equipment, buildings, vehicles. It is important the
operator exercise the utmost care when activating the controls in order to avoid
uncontrolled movements.
Activating the remote control
• Stand with the transmitter unit so that there is a perfectly
clear full line of sight between it and the machinery
• do not linger under overhead loads
• do not operate from an unstable position
• take proper note of the control's identification labels located
next to each button or actuator
• do not press any button or actuator if you do not know
exactly what it does
REM
®
device
- ITALY
AUX FUNCTION
page 3 of 28
Instruction Manual
Radio control devices T3, T5 and T7.

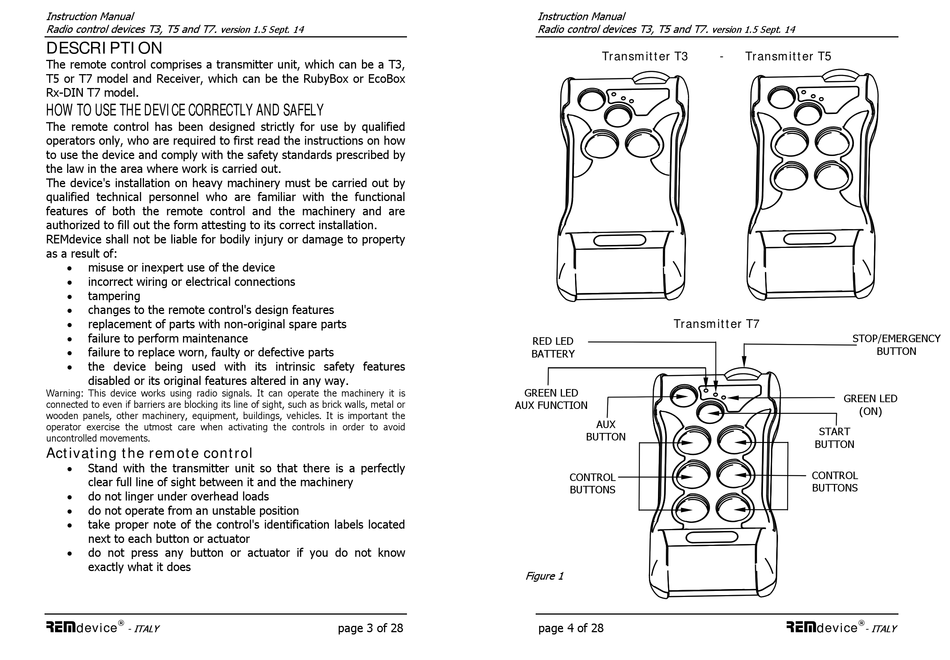

Transmitter T3
Transmitter T7
RED LED
BATTERY
GREEN LED
AUX
BUTTON
CONTROL
BUTTONS
Figure 1
page 4 of 28
version 1.5 Sept. 14
- Transmitter T5
STOP/EMERGENCY
BUTTON
GREEN LED
(ON)
START
BUTTON
CONTROL
BUTTONS
REM
®
device
- ITALY
