VXI blueparrott B250-XT User Manual
Hide thumbs
Also See for blueparrott B250-XT:
- User manual (2 pages) ,
- User manual (32 pages) ,
- Pairing instructions (1 page)
Table of Contents
Related Manuals for VXI blueparrott B250-XT
Summary of Contents for VXI blueparrott B250-XT

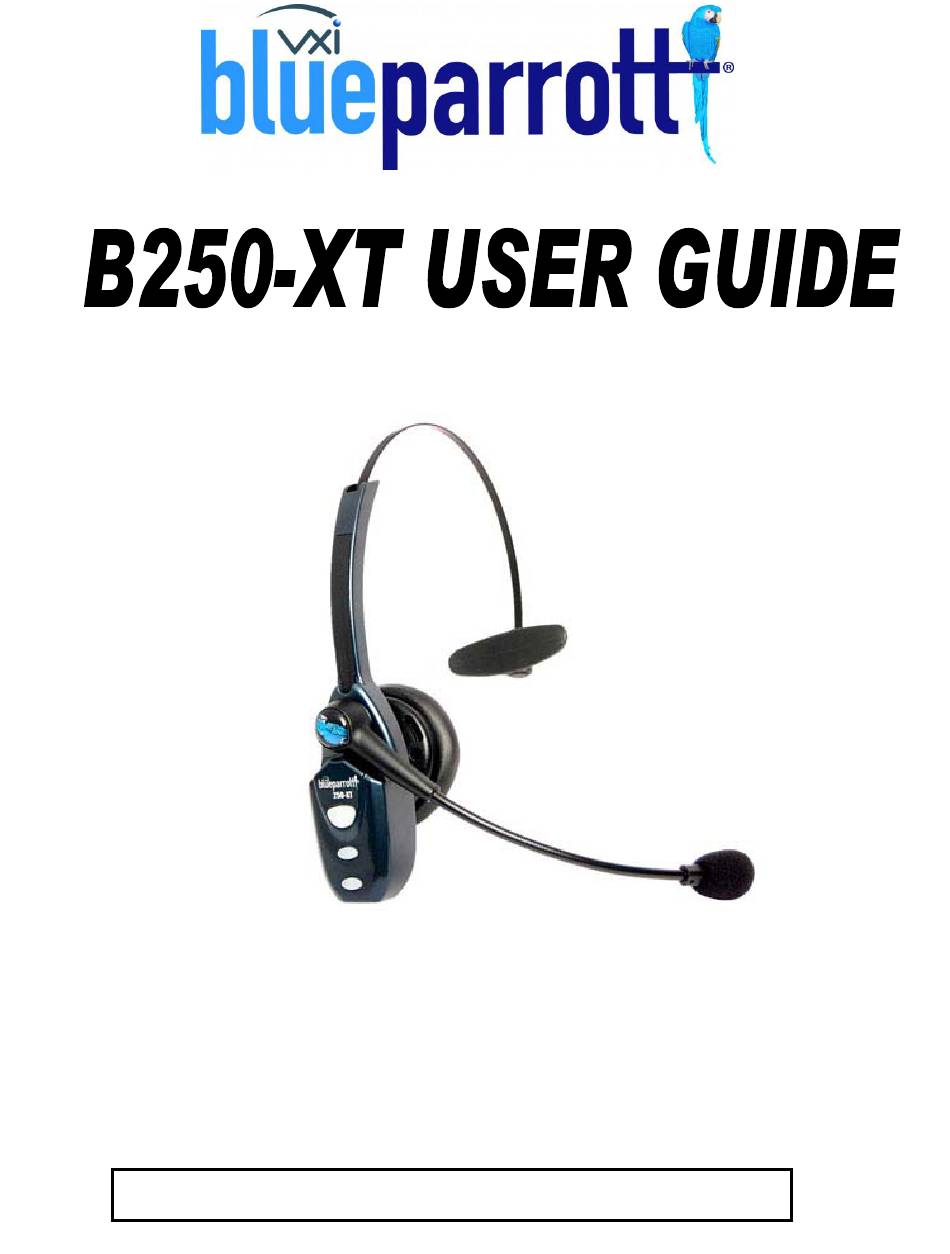

- Page 1 Compatible with Bluetooth phones & Bluetooth enabled computers (Windows® or Macintosh®) For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com) 8312 Sidbury Rd.; Wilmington, NC 28411 - (800) 507-0482 / (910) 686-4281...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Instructions / Glossary Charge the Headset Battery Power Indicators Headset Controls On / Standby / Off Pair Headset with the Phone Microphone Positioning Make a Call / End a Call Answer a Call / End a Call Pairing with a Computer Operation While Using the Charger/Adapter Last Number Redial... -
Page 3: Safety Instructions/Glossary
SAFETY INSTRUCTIONS/GLOSSARY • Avoid hearing damage. Set volume at lowest comfortable level. If you experience ringing in your ears or people sound muffl ed, stop using the headset. Avoid turning up volume to block noisy surroundings (it’s possible to adapt to volume that is too high). •... -
Page 4: Charge The Headset
CHARGE THE HEADSET Select charger cord and plug it into the charger port on the headset. Charge for 12 full hours before fi rst use. Failure to charge less than 12 Note: If you do not use your hours may result headset for a long period of in shorter talk time, you should repeat this... -
Page 5: Battery Power Indicators
BATTERY POWER INDICATORS Indicator Light After the initial 12 hour charge, the indicator lights will indicate the level of battery power as follows. Green light: Fully charged. Up to 16 hours talk time. Green & red lights together: Approximately 60 seconds away from full charge. -
Page 6: Headset Controls
HEADSET CONTROLS Multifunction Button (MFB) & Indicator Lights Volume Up & Microphone Mute Volume Down Volume Increase: Quickly press release Volume Up/Mute button. Repeat until desired volume is attained. Volume Decrease: Quickly press and release the Volume Down button. Repeat until desired volume is attained. Microphone Mute/Un-Mute: Hold... -
Page 7: On / Standby / Off
ON / STANDBY / OFF Turn Headset On: Hold down the MFB for 2-3 seconds until you hear 2 rising tones. The red light will flash once every second. Standby Mode: After headset turned will attempt to connect to the last device that it was paired with, putting itself into standby mode. -
Page 8: Pair Headset With The Phone
PAIR HEADSET WITH THE PHONE Keep headset & phone no less than 3 inches and no more than 3 feet apart while pairing. Keep other Bluetooth devices at least 50 ft. away or turn them off. Note: The headset can be paired with up to 3 different devices. -
Page 9: Microphone Positioning
MICROPHONE POSITIONING Position microphone near corner your mouth. Correct positioning ensures that the noise cancellation technology works properly. Slight adjustment of the microphone may help to achieve optimum performance. For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com) 8312 Sidbury Rd.; Wilmington, NC 28411 - (800) 507-0482 / (910) 686-4281... -
Page 10: Make A Call / End A Call
MAKE A CALL / END A CALL If you have not paired the headset and phone together yet, you must do so (panel 6). Turn on your cell phone. Be sure the Bluetooth option is enabled on your phone (refer to your phone’s user guide for instruction). -
Page 11: Answer A Call / End A Call
ANSWER A CALL / END A CALL In order to answer a call, the headset must be in standby mode (panel 5). Put headset on. Position the microphone (panel 7). When your cell phone rings, you will hear ring tones in the headset. -
Page 12: Pairing With A Computer
PAIRING WITH A COMPUTER Keep headset & computer no less than 3 inches and no more than 3 feet apart while pairing. Keep all other Bluetooth devices at least 50 ft. away or turn them off. Turn headset off (panel 5). Open the computer’s Bluetooth connection manager. -
Page 13: Operation While Using The Charger/Adapter
OPERATION WHILE USING THE CHARGER / ADAPTER The B250-XT headset will operate from battery power or from the AC or DC charger/adapter. Note: Do not attach the charger mid-call. This causes the headset to turn off (call will not be lost). When headset operating... - Page 14 FUNCTIONS AND INDICATORS AT A GLANCE Button / Duration Visual Indicator Function Audio Indicator of Press Light (MFB Multifunction Button) Power On MFB / 2-3 sec. Two rising tones Blue light flashes Power Off MFB / 2-3 sec. Two falling tones All lights go off Enter Red &...
-
Page 15: Last Number Redial
ADDITIONAL FUNCTIONS Note: Your cell phone must support the following functions (consult the phone owner’s manual). LAST NUMBER REDIAL To re-dial the last number that was dialed from the cell phone, press hold volume down button approximately 1 second. A beep will be heard and the phone will redial the last number. -
Page 16: Voice Dial
ADDITIONAL FUNCTIONS VOICE DIAL To use the voice dial feature of the cell phone, quickly press the MFB on the headset; a tone will be heard and the phone’s voice dialer should open; clearly speak command. Repeat quick press of the MFB to end voice dial. The headset must be in standby mode to use this feature. -
Page 17: Turn Headset Indicator Lights Off/On
ADDITIONAL FEATURES TURN HEADSET INDICATOR LIGHTS OFF/ON A quick press of both the volume up and volume down buttons at the same time will turn the headset indicator lights off, repeat to turn the indicator lights on. Headset must be paired to a phone and in standby mode or on a call to this feature. -
Page 18: Multiple Device Pairing
MULTIPLE DEVICE PAIRING The B250-XT can pair with up to seven devices at the same time; however, only one device may be connected to the headset at a time. To pair the headset with a Bluetooth cell phone or other Bluetooth device such as a Bluetooth enabled computer, follow the instructions in panel 6 and 10 of this manual. -
Page 19: Reset Paired Devices List
RESET PAIRED DEVICES LIST To reset the headset’s internal paired devices list, press and hold both the volume up and the volume down buttons for 5-6 seconds. A double beep with be heard and the list will be reset. This procedure may be necessary if the headset will not pair or connect to a device. -
Page 20: Specifications
SPECIFICATIONS Range: Up to 66 feet. Best range is achieved with line-off sight positioning of headset and cell phone. Certain conditions obstructions, such wireless devices, placing your phone on a metal surface (such as your vehicle’s hood), walls, etc., can inhibit radio wave transmission and reduce range. - Page 21 VXI WARRANTY 1. VXI warrants that your B250-XT headset system will be free from defects in material and workmanship for one year from the date of purchase. If, during the first year from the date of purchase, your B250-XT headset...
- Page 22 Changes or modifications not approved by VXI Corporation will void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC rules.
- Page 23 CANADA / IC NOTICE TO USER This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that cause undesired...
