VXI BlueParrott B200 Quick Start Manual

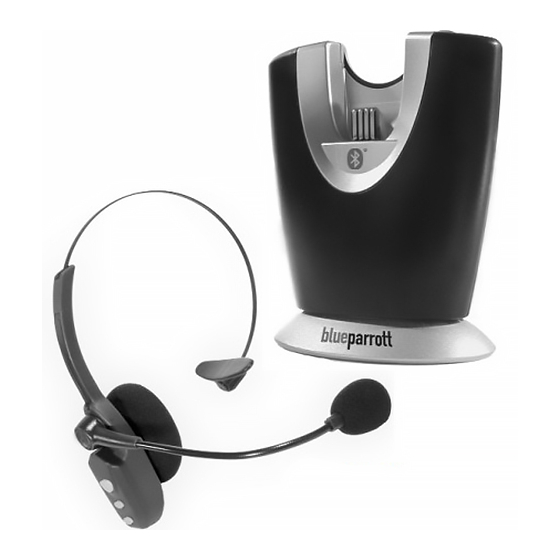

BLUEPARROTT B200
Controls & Components
Pairing button
Multifunction button / Indicator lights
Volume increase / Microphone mute
Volume decrease
Handset active
indicator light
Headset active indicator light
Standby/Pairing indicator lights
The headset battery charges
Microphone volume adjustment
continuously while the
(located under base)
headset is in the base.
Patch cord
T-cord
Cord wraps
Installation A
For phones without headset ports
USE T-CORD
1. Remove handset cord from phone's base.
2. Plug short end of T-cord into now empty
handset port on phone.
3. Plug longer end of T-cord into port on B200
base marked "Phone" . Thread cord under
AC adapter
hook.
4. Plug handset cord into port on T-cord.
5. Plug AC adapter into port on B200 base
marked and then plug AC adapter into
the wall electrical outlet.
Installation B
For phones with headset ports For Cisco models 7940 or higher
(Cisco phones see Installation C)
USE T-CORD USE PATCH CORD
1. Leave handset plugged into your phone. 1. Leave handset plugged into your phone.
2. Plug short end of T-cord into headset 2. Plug the blue-banded end of the patch cord
port on phone. into the headset
3. Plug longer end of T-cord into port on B200 3. Plug other end of the patch cord into port
base marked "Phone" . Thread cord under on the B200 base marked "Phone"
hook. Thread cord under hook.
4. Plug AC adapter into port on B200 base 4. Plug AC adapter into port on B200 base
marked and then plug AC adapter into marked
the wall electrical outlet. wall electrical outlet.
BASIC OPERATION
Installation C
Charge headset in base for 4 hours
with a headset port
before first use. The multifunction
button on the headset will turn green
when fully charged. After use, this light
will turn red. It is not necessary for the
light to turn green to use the headset.
Microphone Adjustment: To ensure
proper microphone performance, do the
following.
1. The microphone has
the word TALK or a dot
printed or embossed
on it (under the
cushion). This mark
must face your mouth.
2. For quality sound and effective
background noise cancellation, position
microphone a finger's width away from
your face just below your bottom lip.
The microphone is sensitive, minor
adjustments may be needed to achieve
port on your phone.
optimum voice quality.
Standby/Talk Time Mod
.
is in standby mode whenever you see a
slow-flashing yellow light on the headset
and the handset icon
of the base. If the headset icon
and then plug AC adapter into the
then the headset is active and Talk Time
is being used (even if you are not on a call).
es:
The headset
is lit on the front
is lit,
